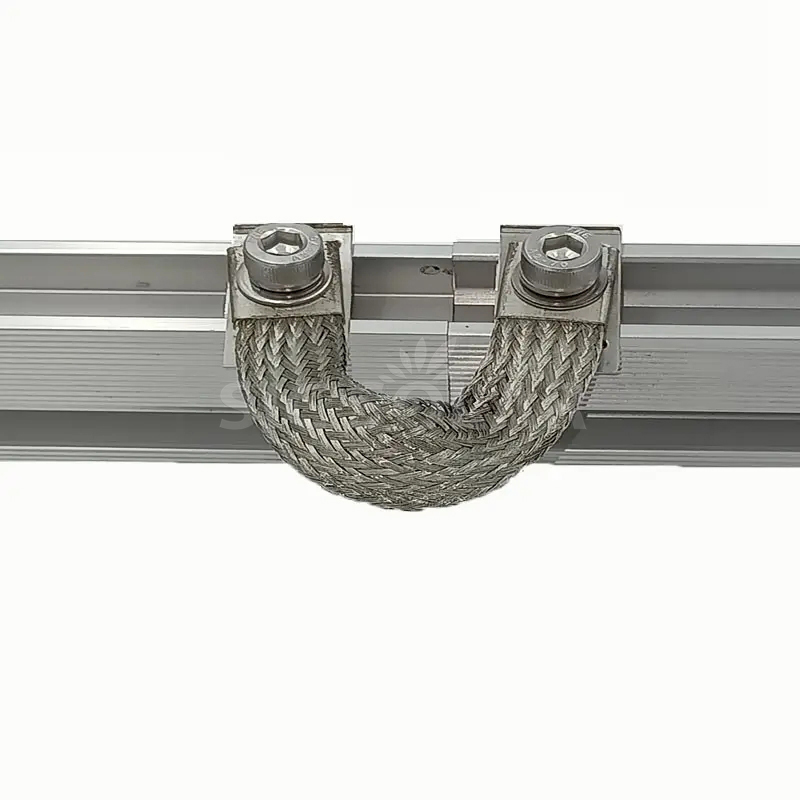

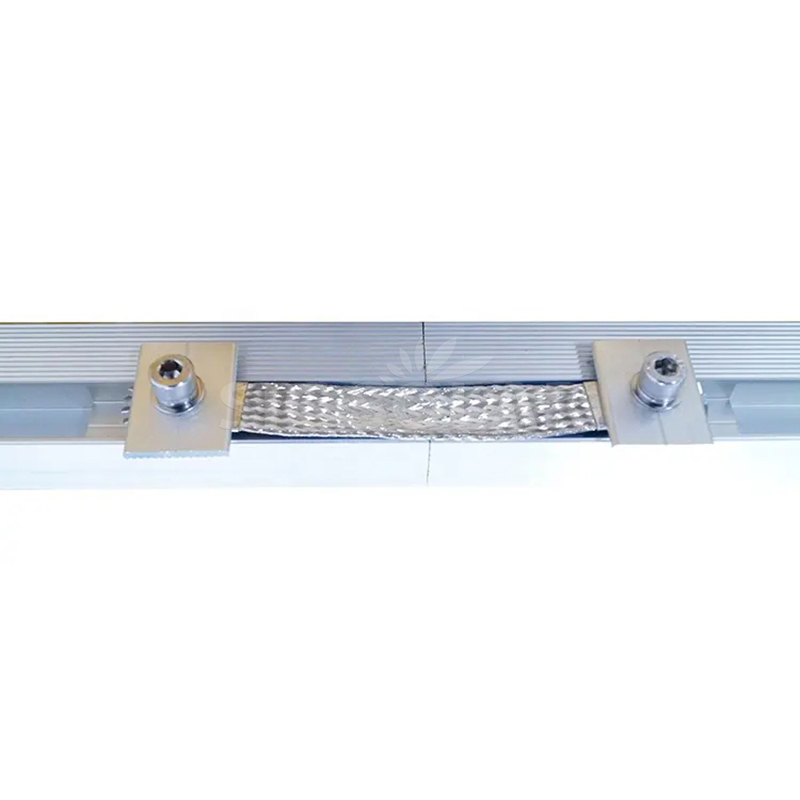

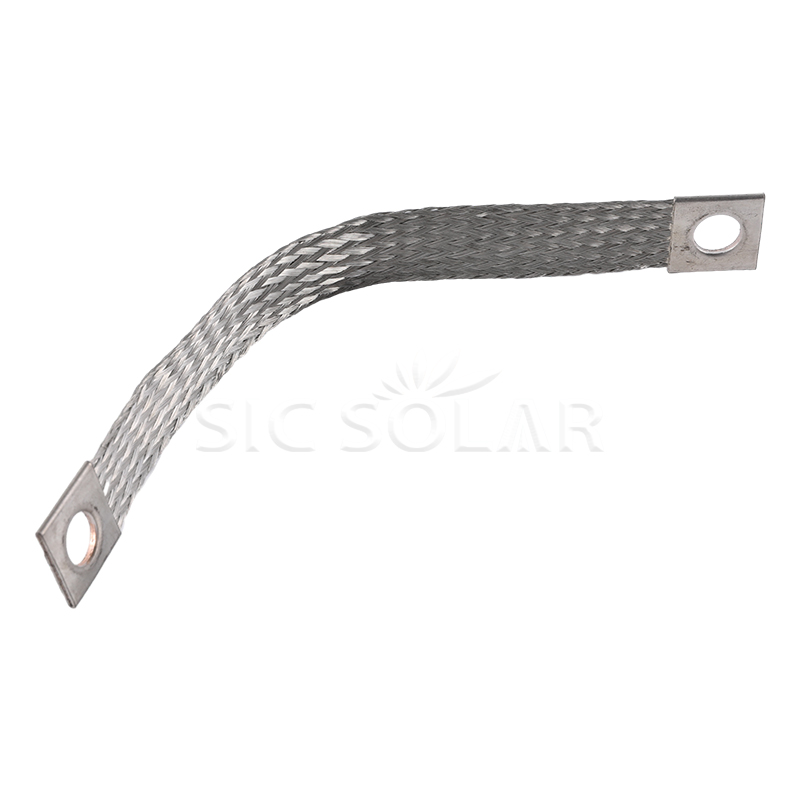

Ground Bonding Jumper

Picture a network of solar panels basking in sunlight; each part must stay connected not only for power but also safety. That’s where the Ground Bonding Jumper steps in: its job is to stitch together rails, modules—even overlooked brackets—with an unbroken line that guides sudden surges harmlessly into the earth. Honestly, there’s some comfort knowing this silent safeguard shields both equipment and anyone working nearby from unexpected jolts.

Components

Parameter (Specification)

Features & Advantages

Excellent Electrical Conductivity:This jumper relies on nearly pure copper so electricity travels through it almost as smoothly as water slips over polished glass. Low resistance means little energy gets lost along the way.

Superior Corrosion Resistance:The surface may gleam thanks to tin-plating; underneath lies copper tough enough to stand up against rain, dust storms or blaring sunshine.

Flexible Construction:Braided strands let it flex and stretch—like a gymnast warming up—making tricky installs less stressful and letting structures shift without risking snapped wires or loose joints down the road.

Reliable Grounding Continuity:This jumper ensures each metallic piece stays in touch electrically—a quiet guardian against errant shocks lurking just out of sight.

Durable Performance:Made for outdoor life, these jumpers laugh off UV rays, surprise showers and temperature swings bigger than my mood during tax season.

Easy Installation:No need to wrangle awkward crimps—the factory handles most prep work already.

Installation Process

Inspect the Components:Toss the packaging aside and give each jumper plus its terminals a careful once-over—rust spots or bent ends don’t belong here. Wipe off any grease or dust if you spot them; better safe than sorry later!

Prepare the Grounding Locations:Find all those points needing connection—it might be rails hiding under panels or frames tucked behind supports—and clear away paint or dirt so metal touches metal cleanly.

Connect the Jumper:Line up each end where it belongs then reach for your favorite wrench, bolting down snugly at marked places until everything feels secure—not Hulk-tight though!

Tighten the Connections:This part can trip people up: check torque specs if available since “good enough” sometimes isn’t when dealing with electricity! Double-check connections so nothing wiggles loose after installation wraps up.

Verify Grounding Continuity:If you’re anything like me, testing twice never hurts—grab your meter and confirm current flows freely across every link in your shiny new chain of safety.

Complete the Installation:Once satisfied all looks solid, finish attaching whatever else needs bonding then scan over everything before calling it done—a final review often catches sneaky oversights hiding in plain sight!

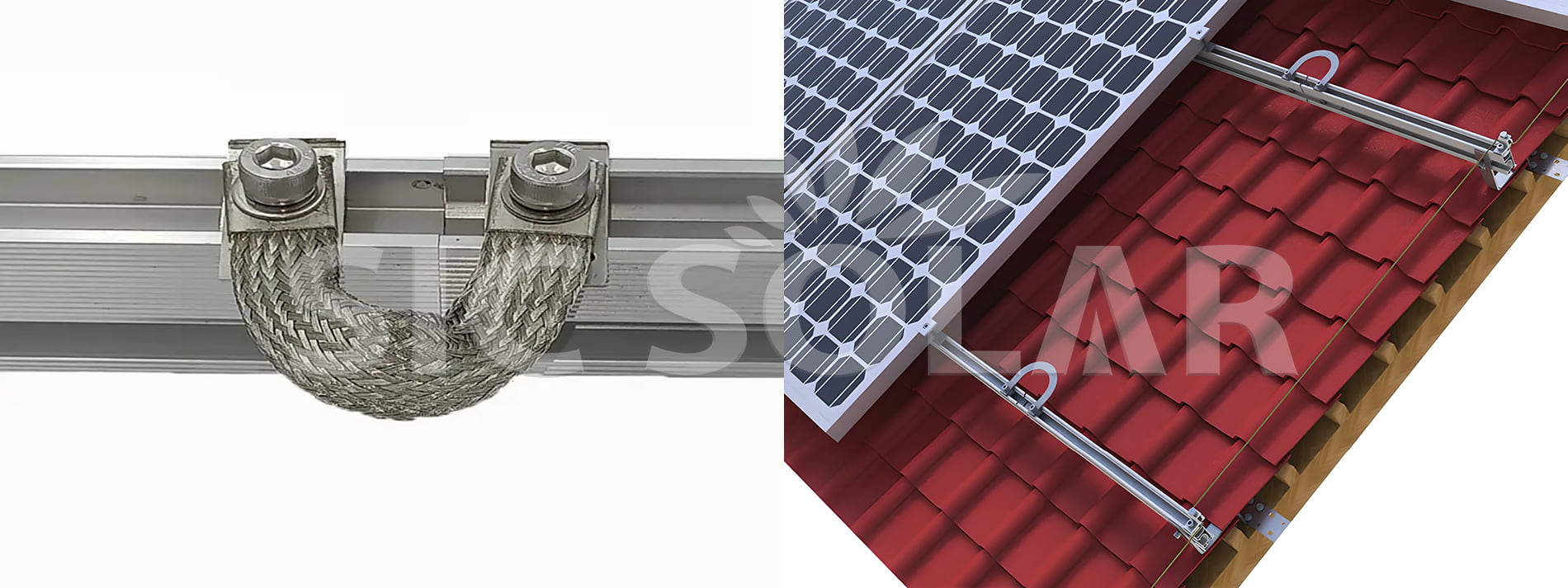

Application Scenario

Package

We use Ground Screw Solar Mounting standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
