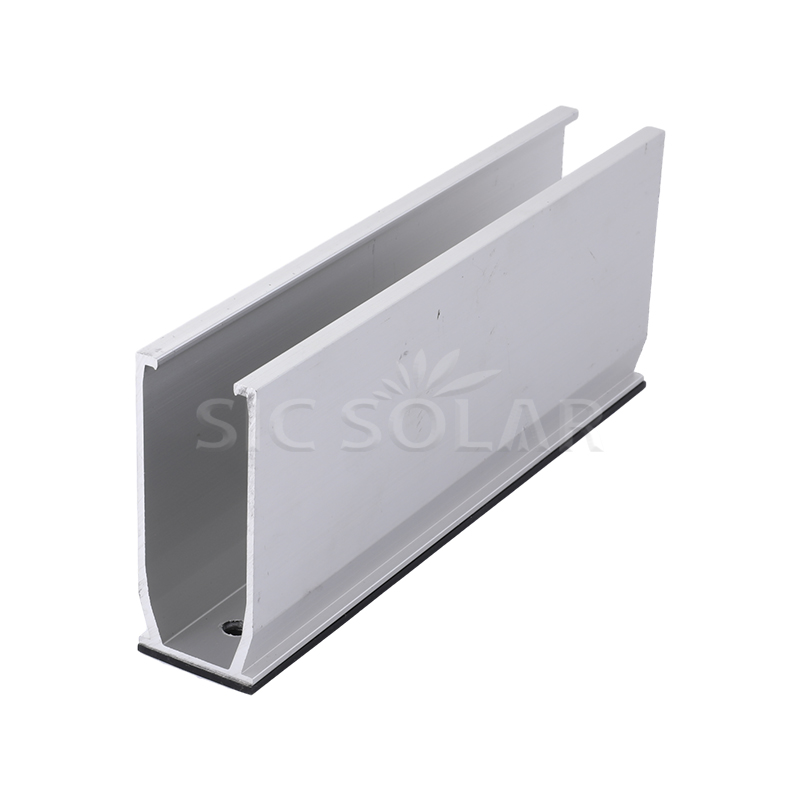

Mini Rail Solar Mounting System

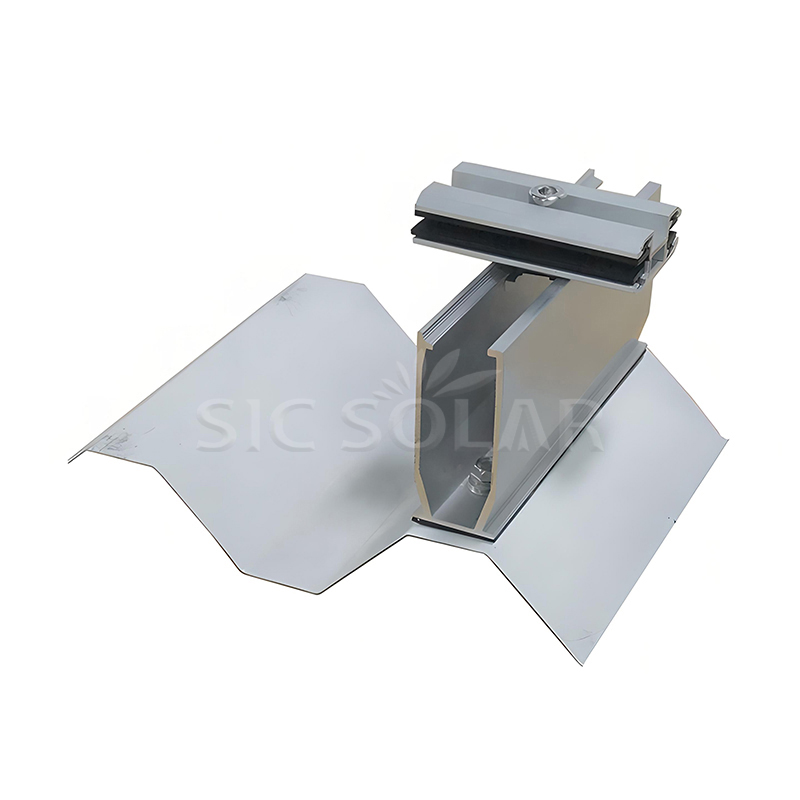

Mini Rail Solar Mounting System is designed for quick and efficient rooftop solar installations, especially on trapezoidal and corrugated metal roofs. Instead of using long rails, this system uses short aluminum rails fixed directly under each panel, which reduces both material and transportation costs.

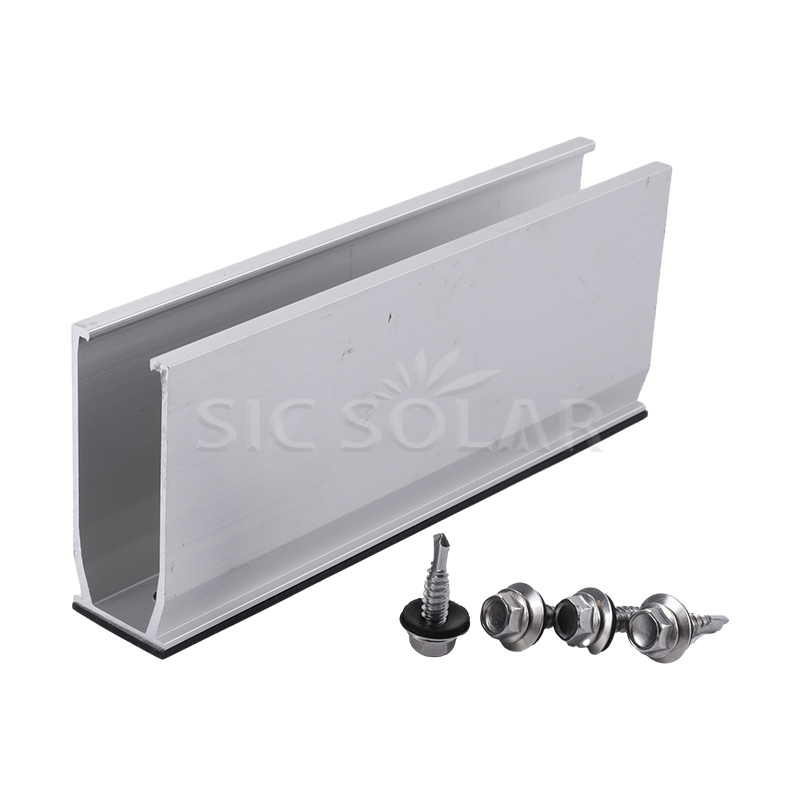

Components

Parameter (Specification)

Installation Process

1. Mark the installation points: Mark the mini rail positions based on the panel layout.
2. Fix the mini rails: Secure the rails with self-drilling screws and ensure EPDM pads are properly placed.

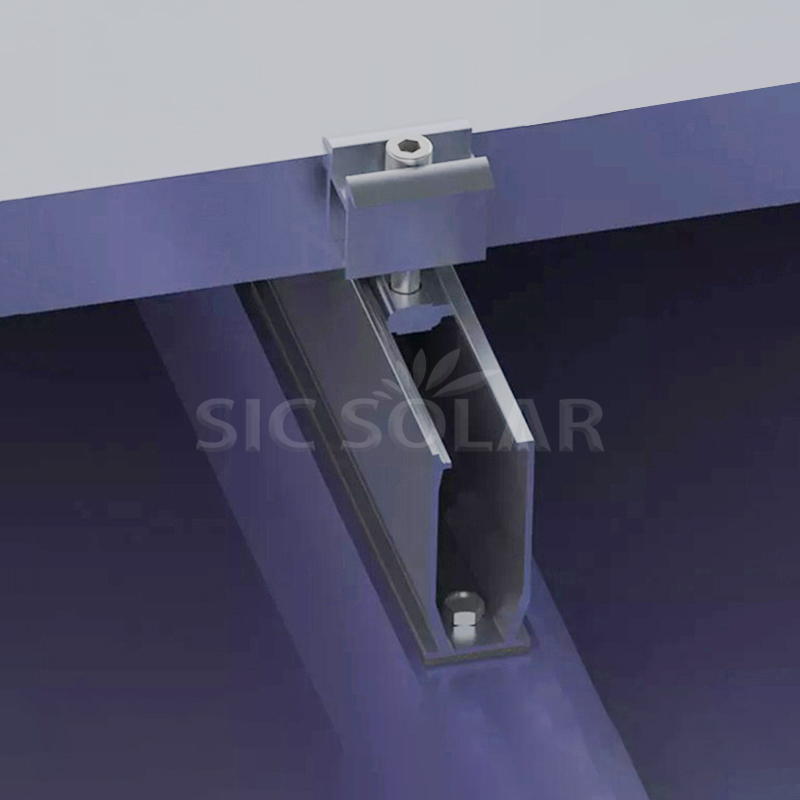

3. Mount the solar panels: Place the panels on the rails and fix them with mid and end clamps.
4. Check and adjust: Tighten all components and ensure proper alignment.

Why Choose SIC Mini Rail Solar Mounting System?

1. Lower Cost: Less material is needed compared to traditional rail systems.
2. Faster Installation: Fewer components and simple steps reduce labor time.
3. Reliable Performance: Aluminum structure provides durability and corrosion resistance.
4. Lightweight: Adds minimal load to the roof.
5. Flexible Use: Suitable for different types of metal roofs and standard solar modules.

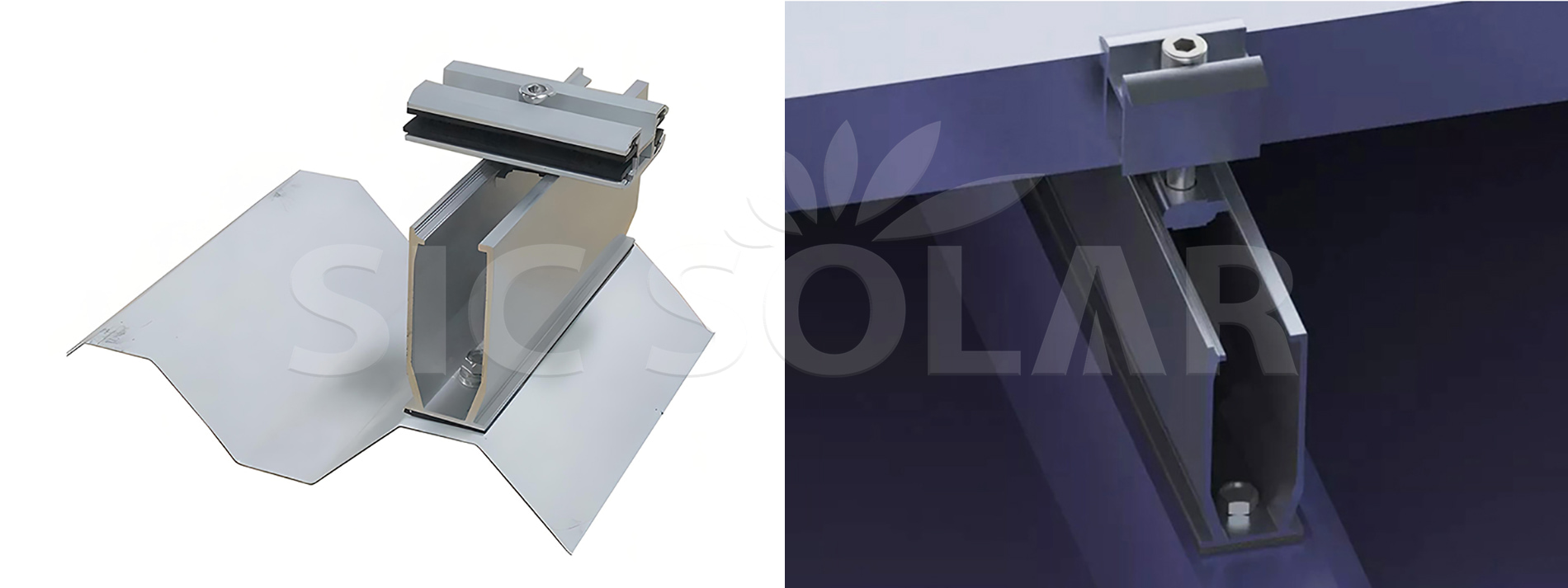

Installation Display

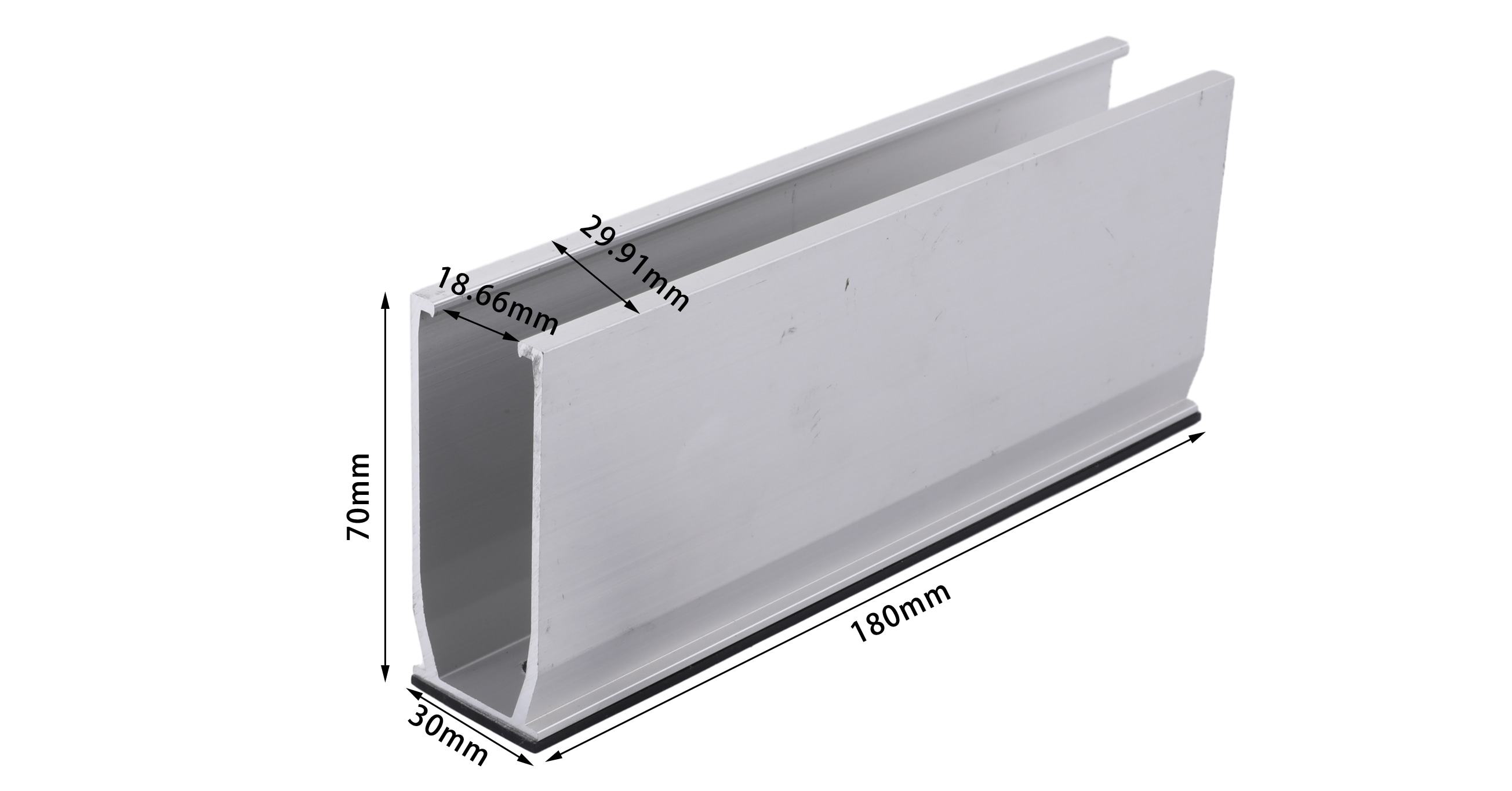

Details

Package

We use Mini Rail Solar Mounting System standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
