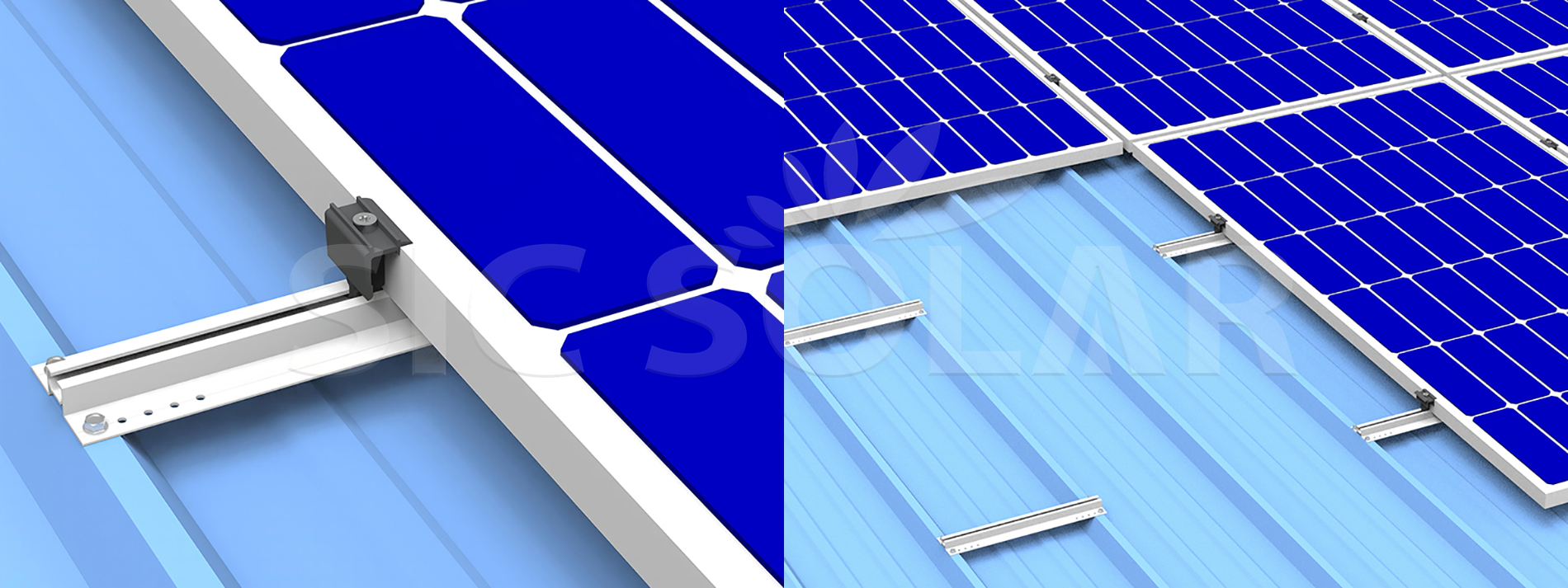

Solar Panel Short Rail is a compact way to mount solar panels on metal roofs. It uses short rail sections instead of long ones, which saves material, lowers shipping costs, and makes installation simpler, all while keeping the panels stable.
Solar Panel Short Rail are often used on trapezoidal or corrugated metal roofs, acting as a direct support for the solar panels. They are made from strong aluminum alloy, so they resist rust, are light to handle, and last a long time in various weather.

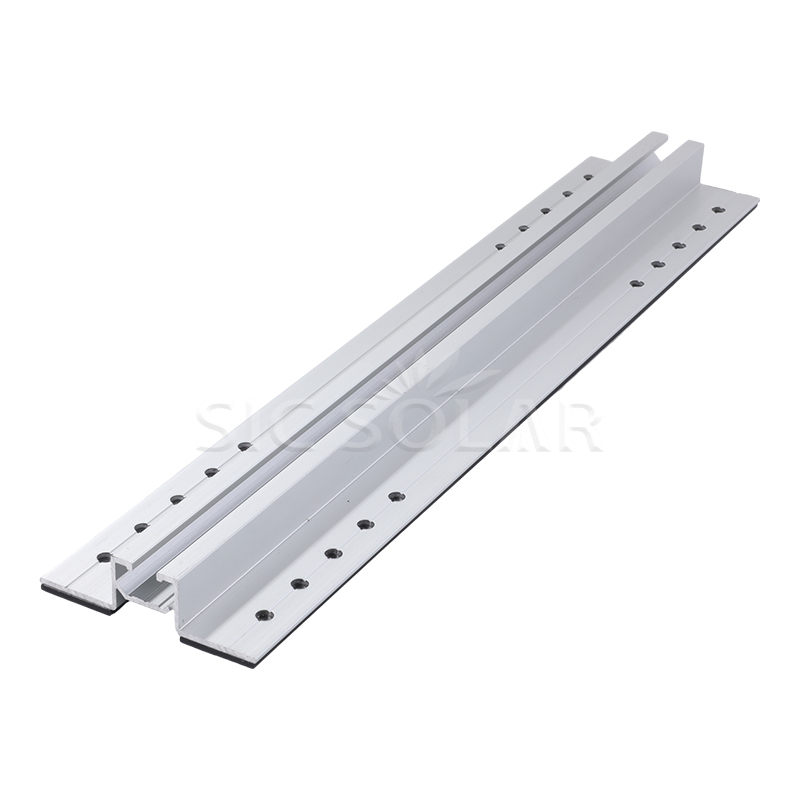

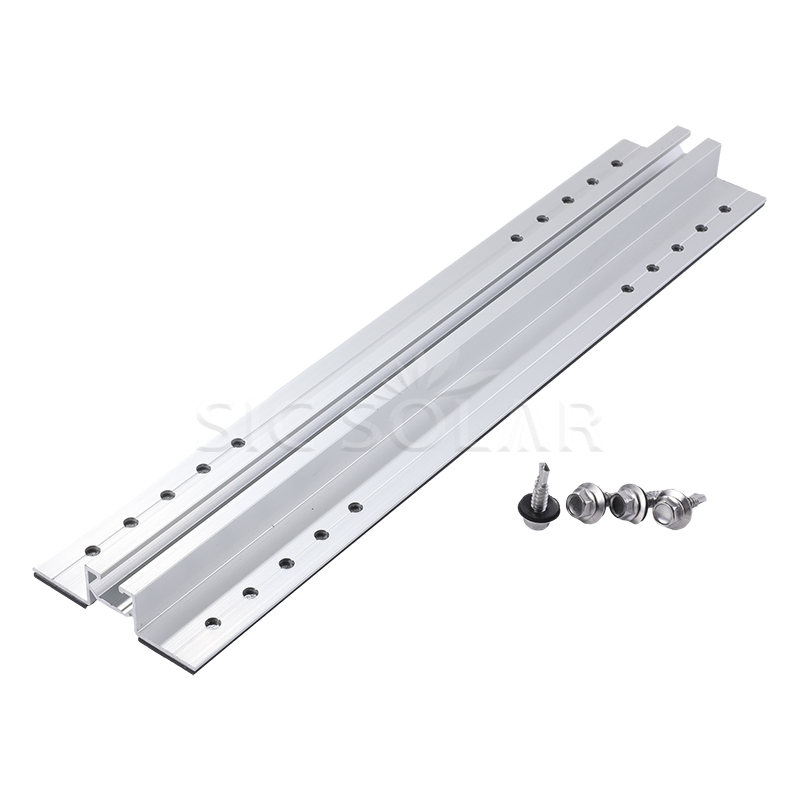

Components
Parameter (Specification)
Item NO.
Installation Site
Material
Wind Load
Snow Load
Color
Warranty
SIC-MN-03
Pitched metal roof
AL6005-T5
<60M/S
<1.4KN/M²
Natural or Customized
10 years and 25 years service time
Installation Process
To install, first check the roof and mark where the rails go.
Then, attach the short rails directly to the roof with suitable fasteners and seals.
Make sure all rails are lined up.
Next, place the solar panels on the rails and secure them with clamps.
Finally, check that all bolts are tight, panels are aligned, and seals are waterproof.
Installation and maintenance precautions
When installing, always follow the recommended rail spacing and use the correct fasteners with waterproof washers, tightening them properly.
Check the roof's load capacity and follow local building and safety rules.
For maintenance, regularly check for loose fasteners, rust, or damage.
Clear away any debris and make sure water can drain freely.
It is a good idea to do a full inspection yearly, especially after severe weather.

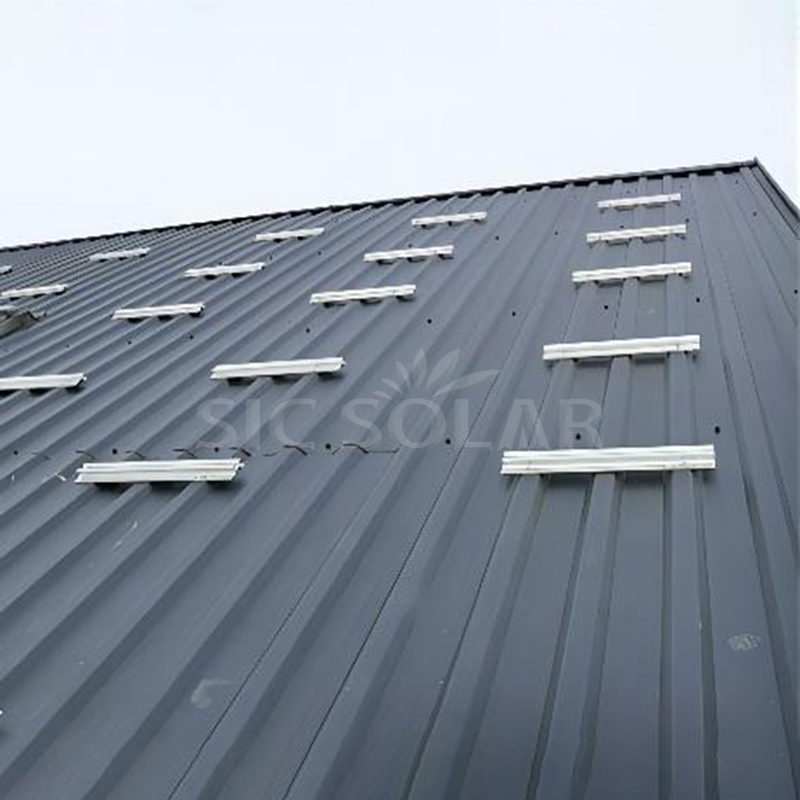

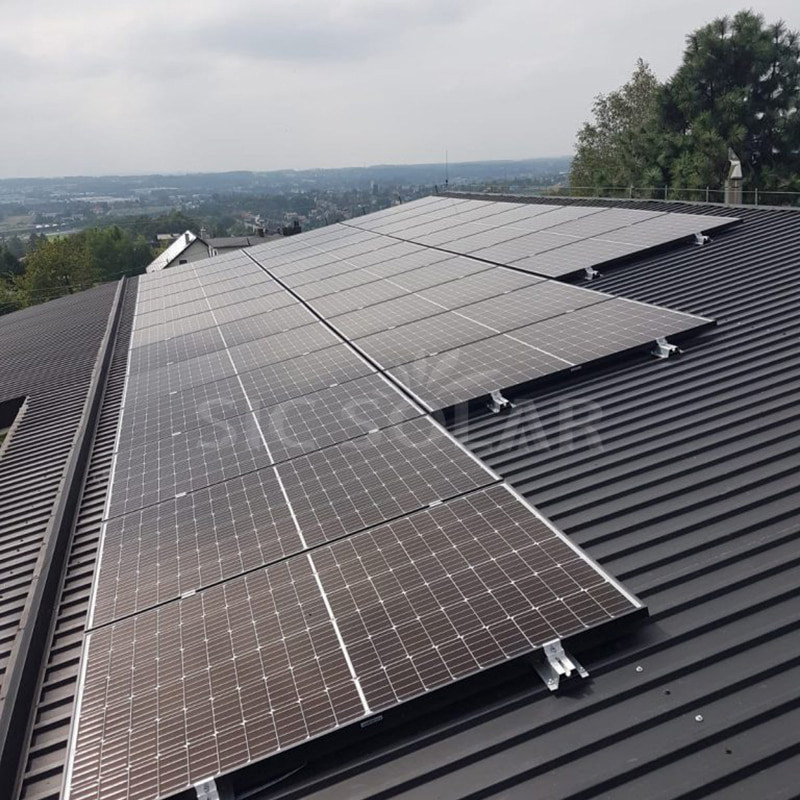

Installation Display

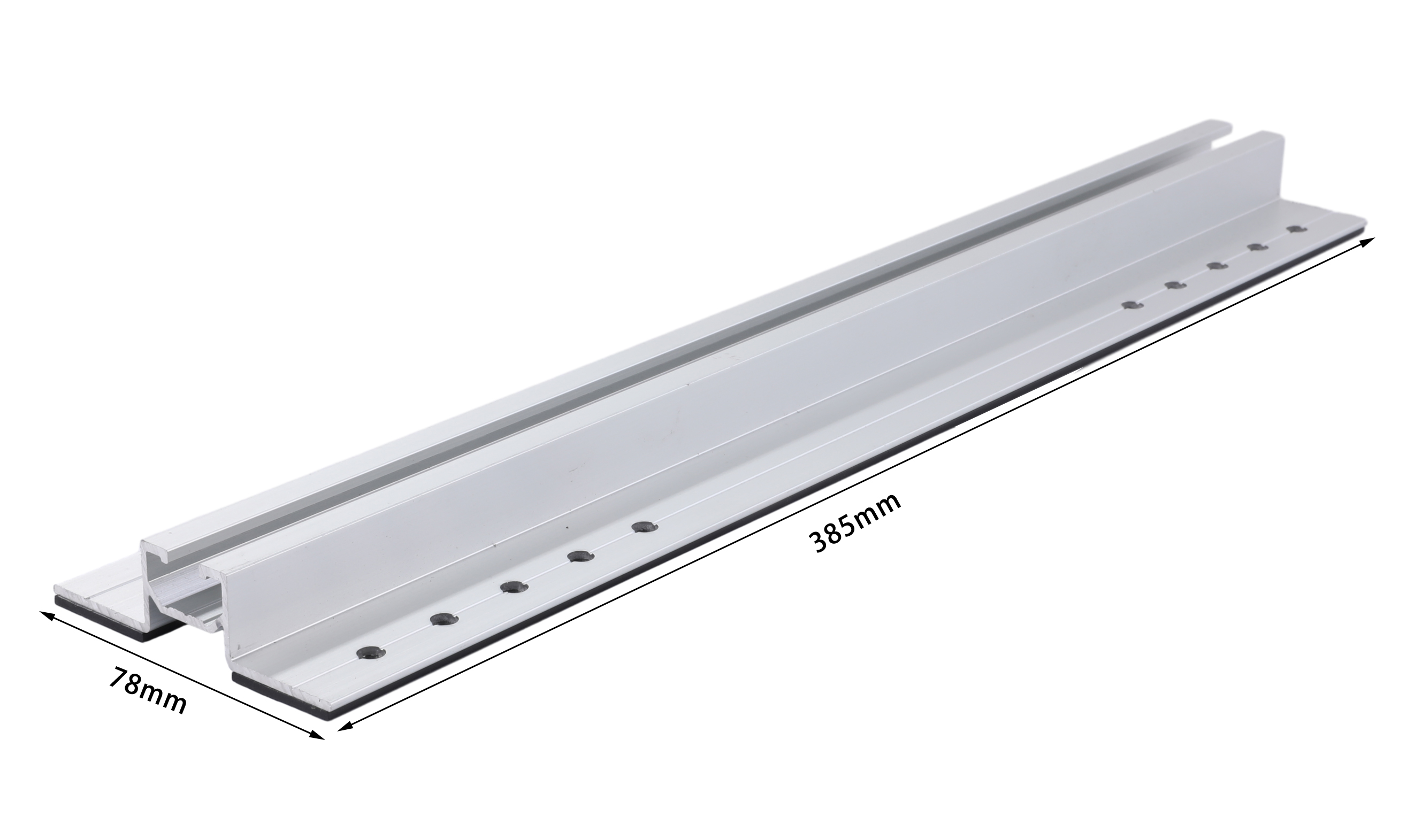

Details
Package
We use Solar Panel Short Rail standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
