Quick Mount Solar End Clamp

Quick Mount Solar End Clamp is installed at the end of a solar panel row to hold the outer edge of the module securely against the mounting rail. It provides a firm connection between the panel frame and the mounting structure while keeping the installation process simple. The clamp is designed with installers in mind, making it easy to position and fasten on site.

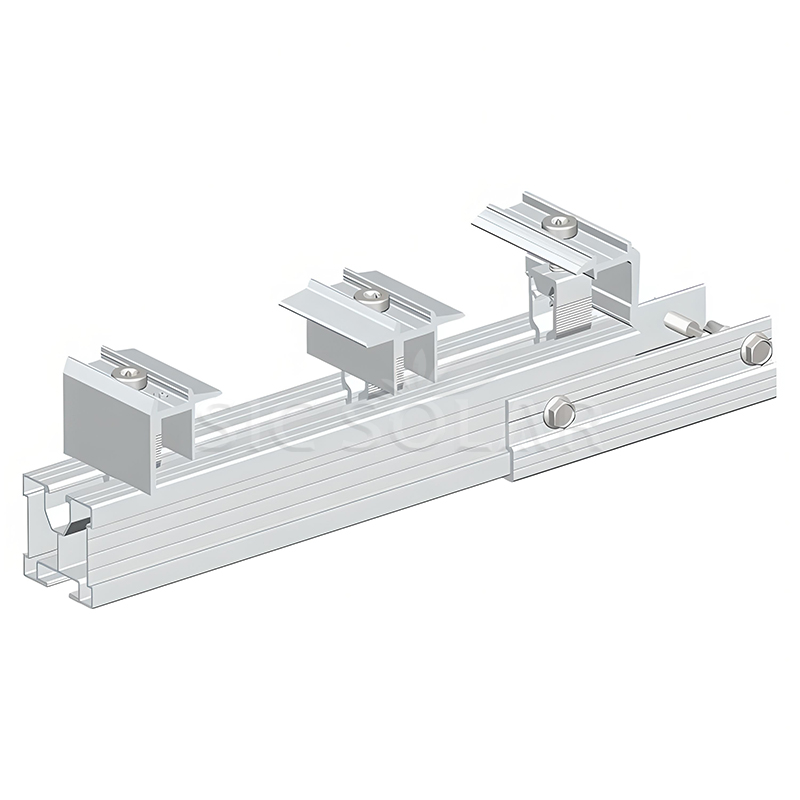

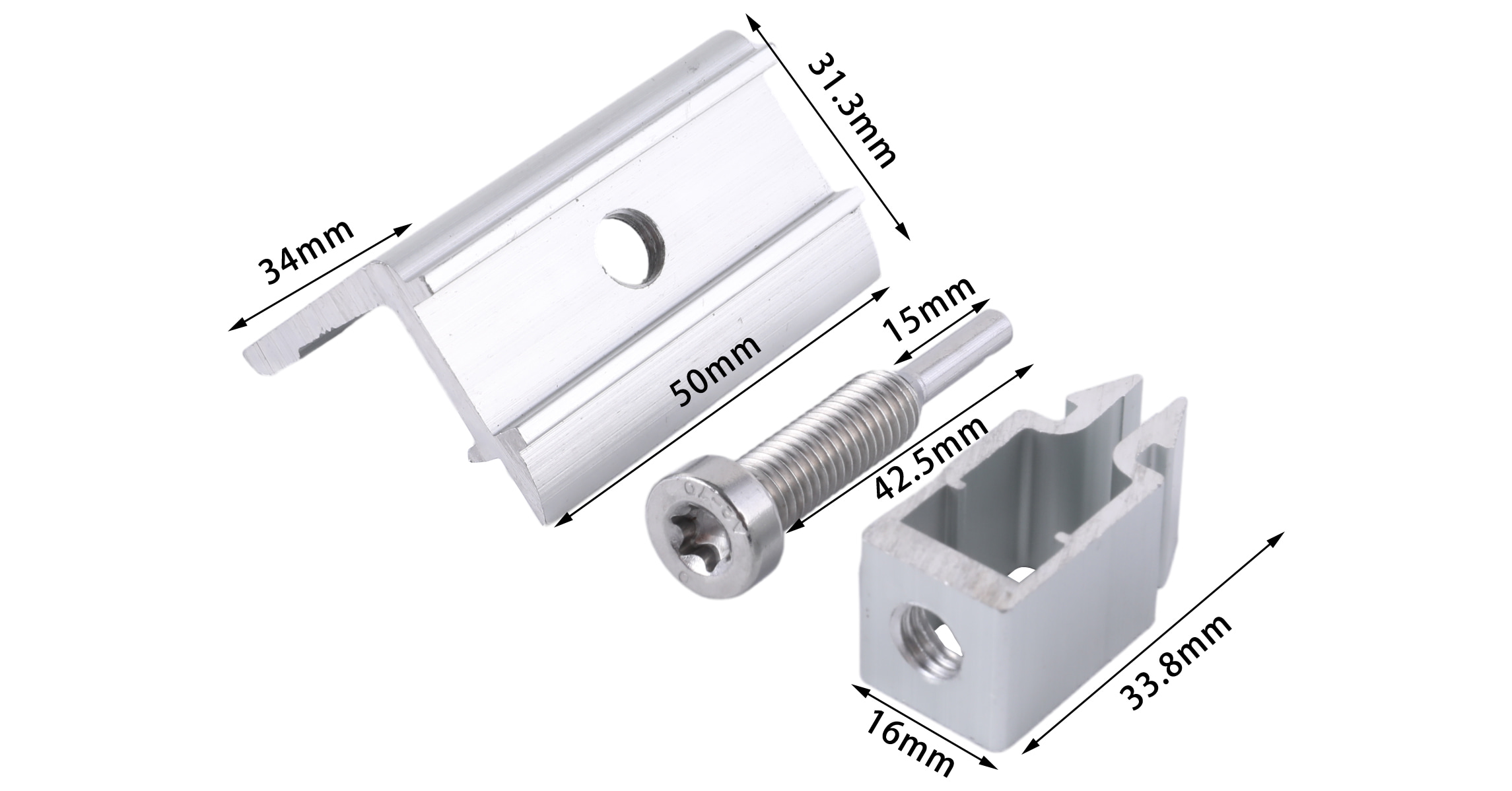

Components

Parameter (Specification)

Installation Steps

• Prepare the Mounting Rails：Install the rails according to the project layout. Check the rail alignment, spacing, and fixing points before placing the panels.
• Position the Solar Panel：Place the module on the mounting rails and adjust it to the required position.
• Position the End Clamp：Place the Quick Mount End Clamp against the outer edge of the solar panel frame.
• Connect the Clamp：Insert the appropriate fastener into the mounting rail and connect it to the end clamp.
• Adjust the Clamp：Check that the clamp sits properly against the panel frame and is positioned within the clamping area specified by the module manufacturer.
• Tighten the Fastener：Tighten the bolt or nut to the recommended torque. Avoid overtightening.
• Perform a Final Check：Make sure the panel is correctly aligned and that the clamp has firm, even contact with the frame before moving on to the next module.

Installation & Maintenance Precautions

• Check Compatibility：Before installation, confirm the panel frame dimensions, frame height, rail type, and end clamp specifications.
• Follow the Recommended Clamping Zone：The clamp should be installed only within the area specified by the solar module manufacturer. Incorrect positioning may affect module performance, safety, or warranty requirements.
• Use the Correct Torque：Always use the recommended tightening torque. Too much force can damage the panel frame or mounting components, while insufficient torque may result in a loose connection.
• Ensure Even Contact：The clamp should sit flat and firmly against the panel frame. Avoid tilted installation, visible gaps, or uneven contact.
• Check Panel Alignment：Align the panels before fully tightening the end clamps. This makes it easier to maintain a neat and consistent panel layout.
• Handle Components Carefully：Avoid excessive force or sharp tools that could scratch or damage the aluminum clamp, panel frame, or mounting rail.
• Inspect the System Regularly：During routine PV maintenance, check the clamps, bolts, nuts, and rail connections for signs of loosening, corrosion, deformation, or other damage. Replace damaged components when necessary.

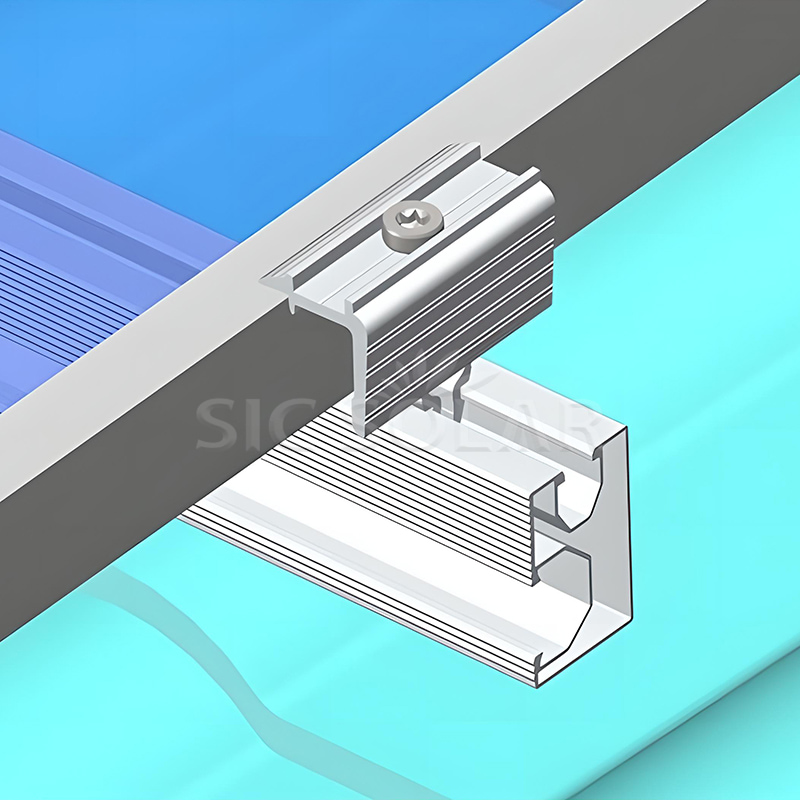

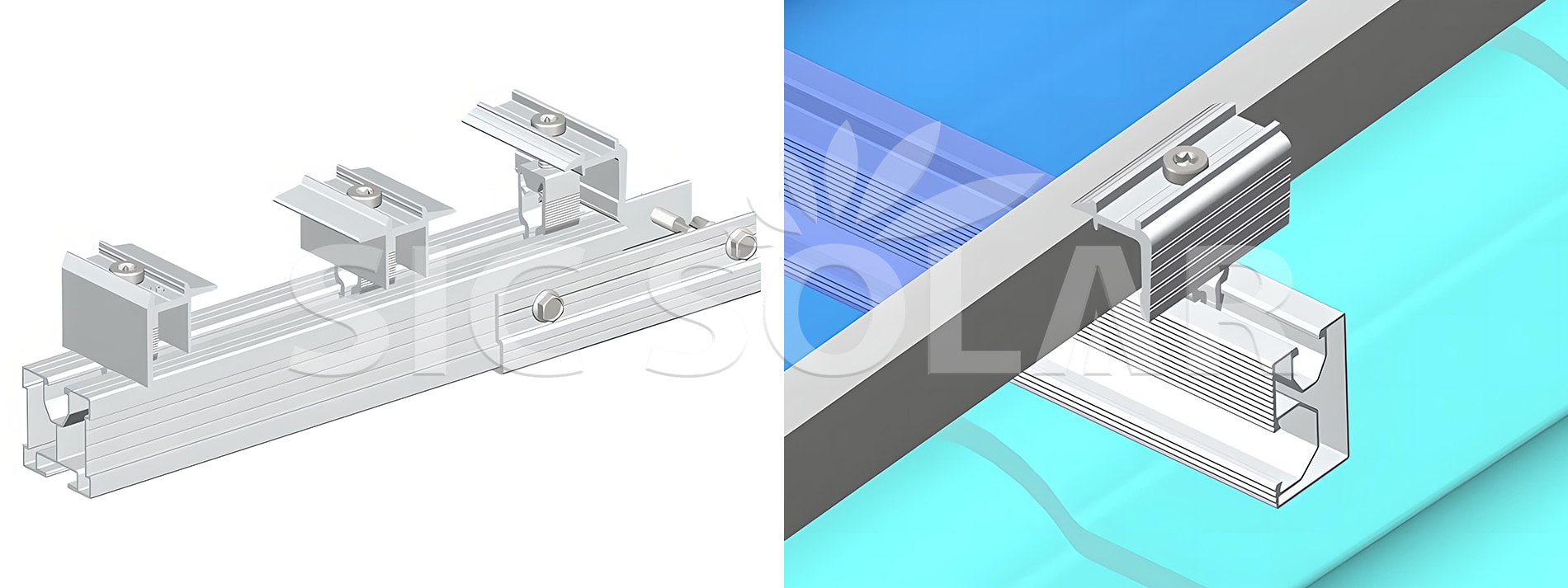

Installation Display

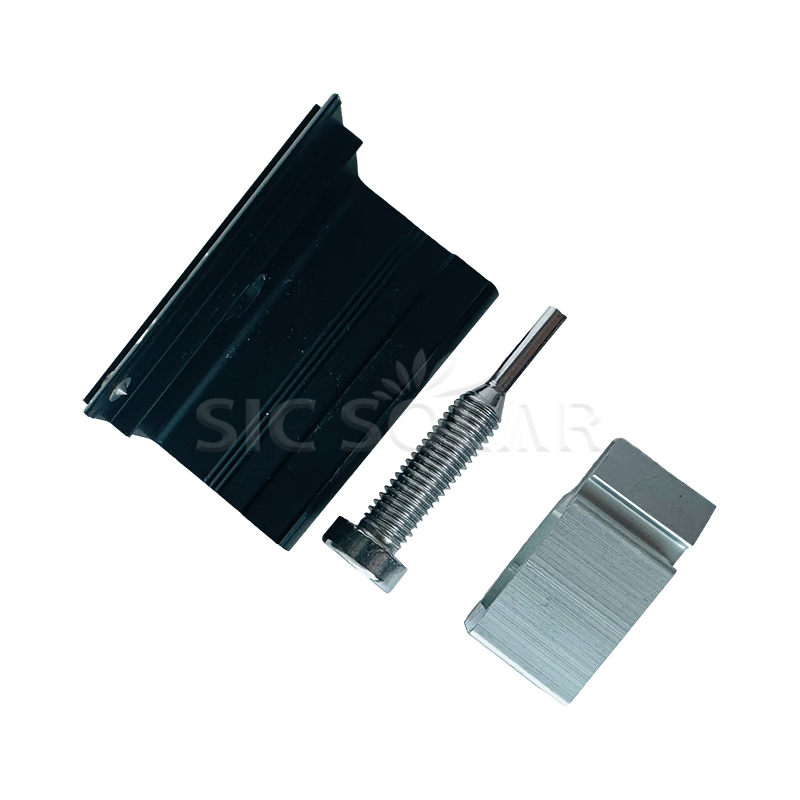

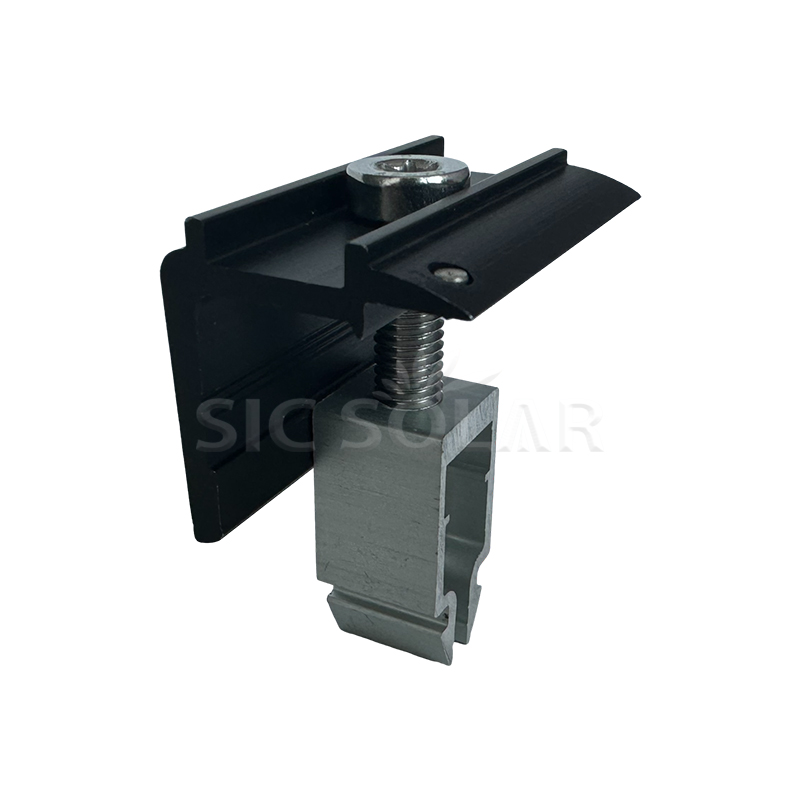

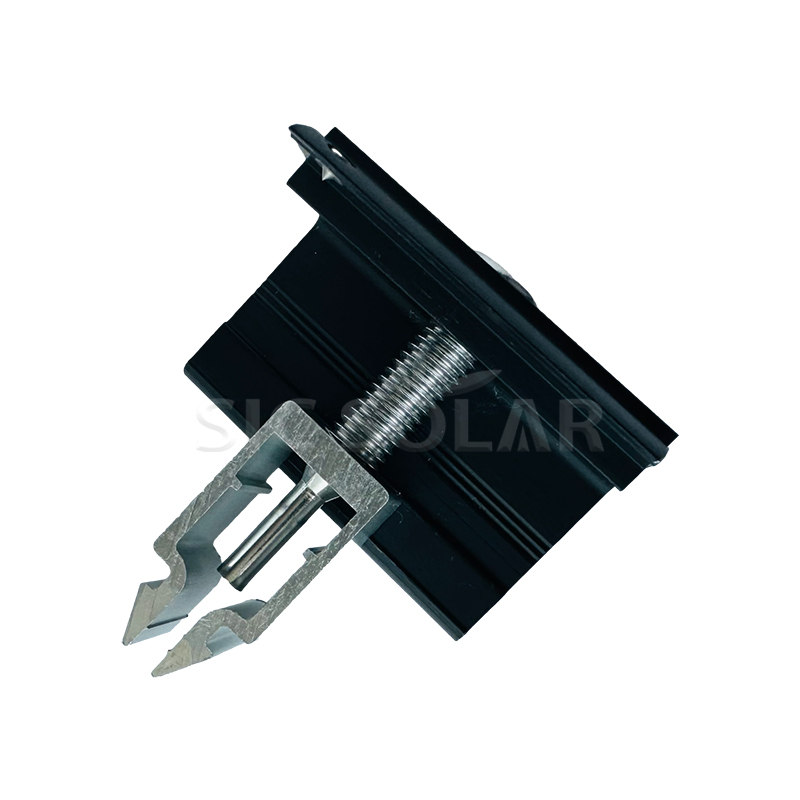

Details

Package

We use Quick Mount Solar End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
