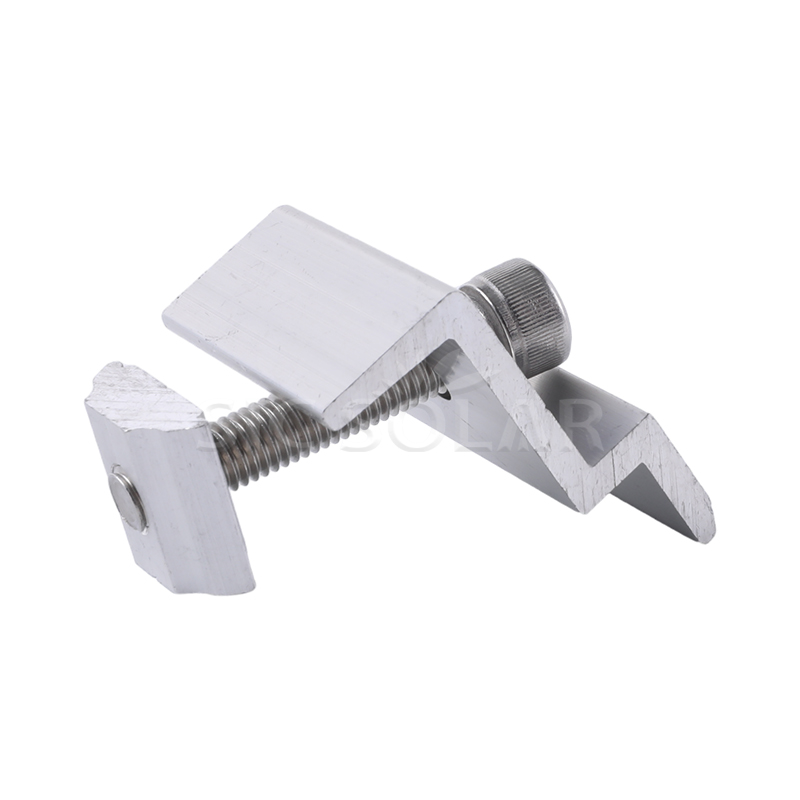

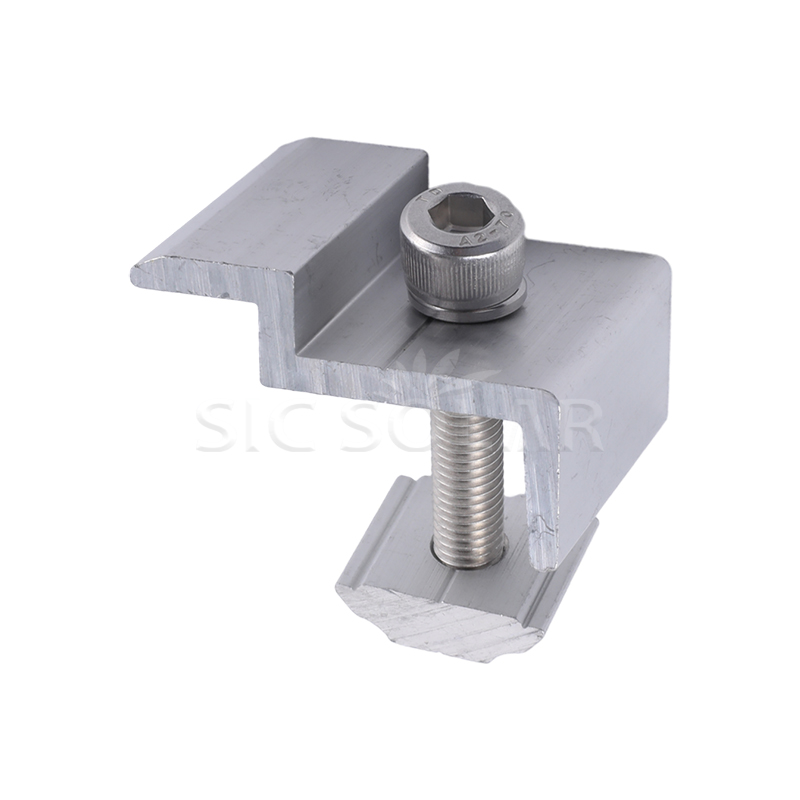

Solar Panel End Clamp

Solar Panel End Clamp functions by securing the outer edge of a solar panel array, connecting the panel frame firmly to the mounting rail. It integrates with the solar mounting structure to keep modules securely in place over time. Available in various sizes and configurations, these clamps accommodate different panel frame thicknesses and rail profiles. Choosing the right clamp is crucial for secure module fixation and optimal system performance.

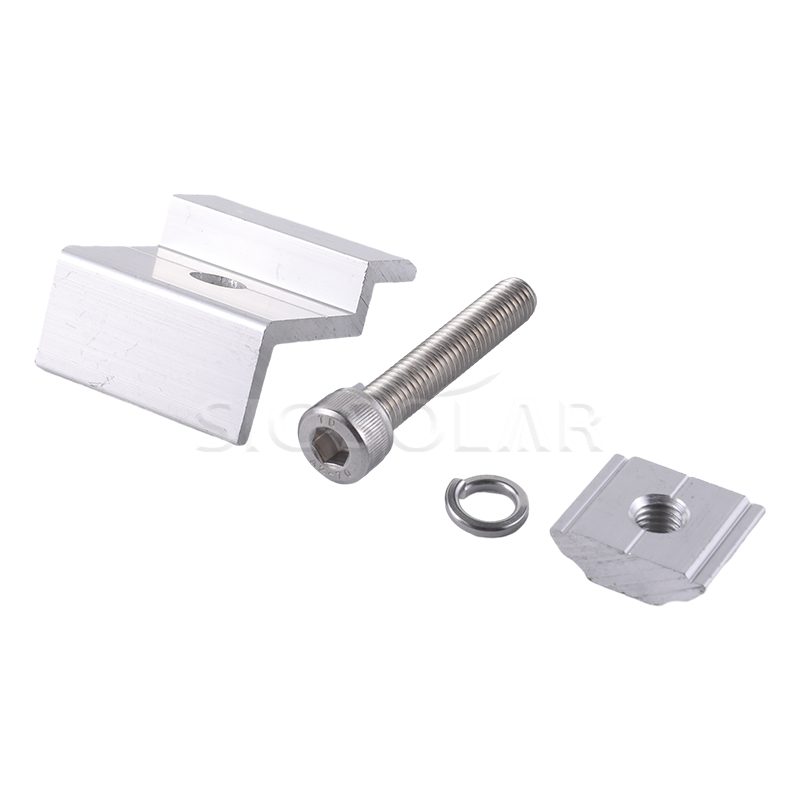

Components

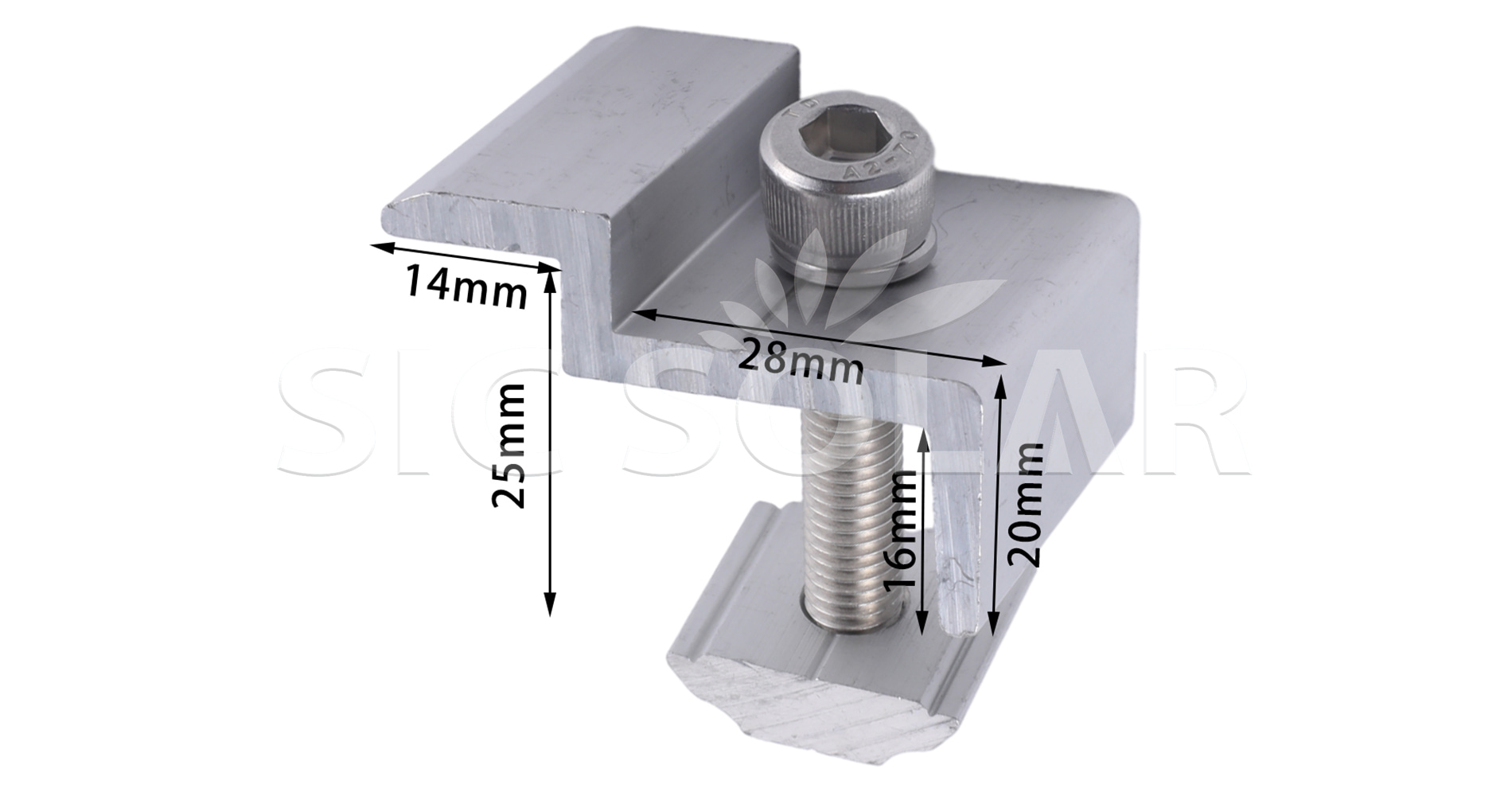

Parameter (Specification)

Installation Steps:

• Install the Mounting Rails: Set up and align the solar mounting rails according to the project blueprint. Ensure they are firmly attached to the roof or supporting structure.
• Position the Solar Panel: Position the solar panel onto the mounting rails following the planned layout.
• Position the End Clamp: Place the Solar Panel End Clamp against the outer panel frame edge.
• Engage the Mounting Rail: Insert or slide the clamp fastener into the compatible rail channel, adjusting it to the proper position.
• Check Alignment: Verify the solar panel’s correct positioning and ensure the clamp is within the allowed clamping area.
• Tighten the Fastener: Securely tighten the fastener, adhering to the manufacturer’s specified torque settings.
• Perform a Final Inspection: Inspect the clamp, fastener, panel frame, and mounting rail to confirm a secure and properly aligned connection.

Why Choose Solar Panel End Clamp?

• Reliable Module Fixation: Offers stable support for solar panels' outer edges.
• Efficient Installation: Its easy positioning and fastening help installers save time.
• Durable Construction: Made from aluminum alloy and stainless steel for long-term outdoor use.
• Corrosion Resistance: Withstands rain, humidity, sunlight, and other environmental conditions.
• Flexible Compatibility: Available in various specifications for different module frames and mounting rails.
• Low Maintenance: Simple and robust design minimizes routine maintenance needs.
• Professional Appearance: Provides a neat and consistent finish at the solar array’s edges.

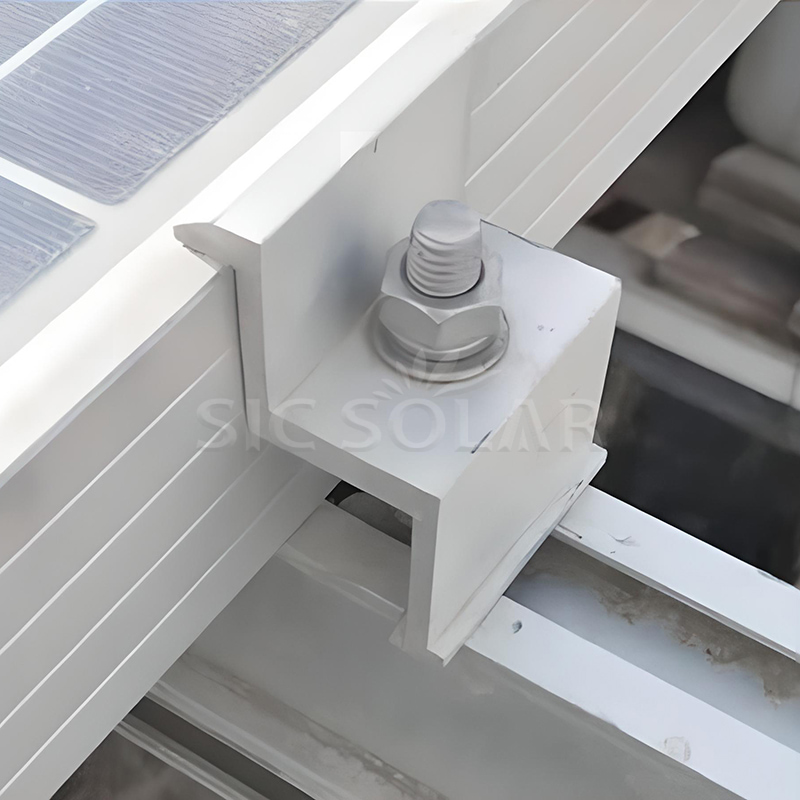

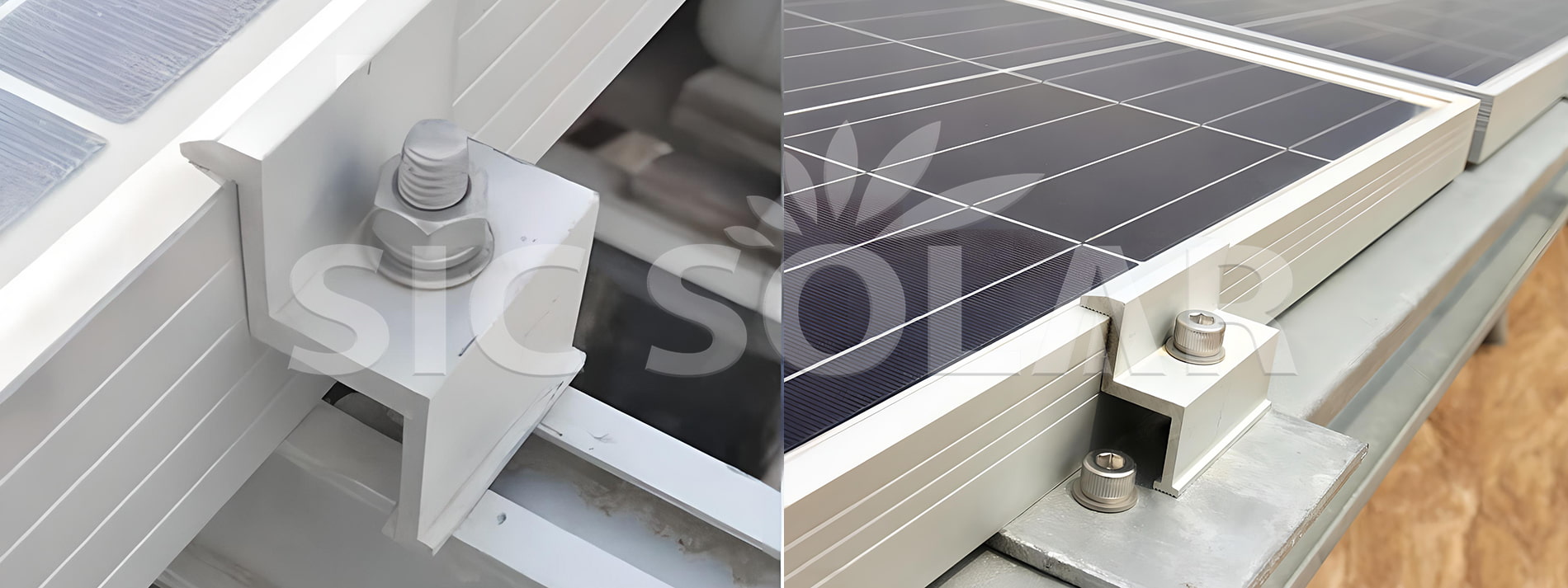

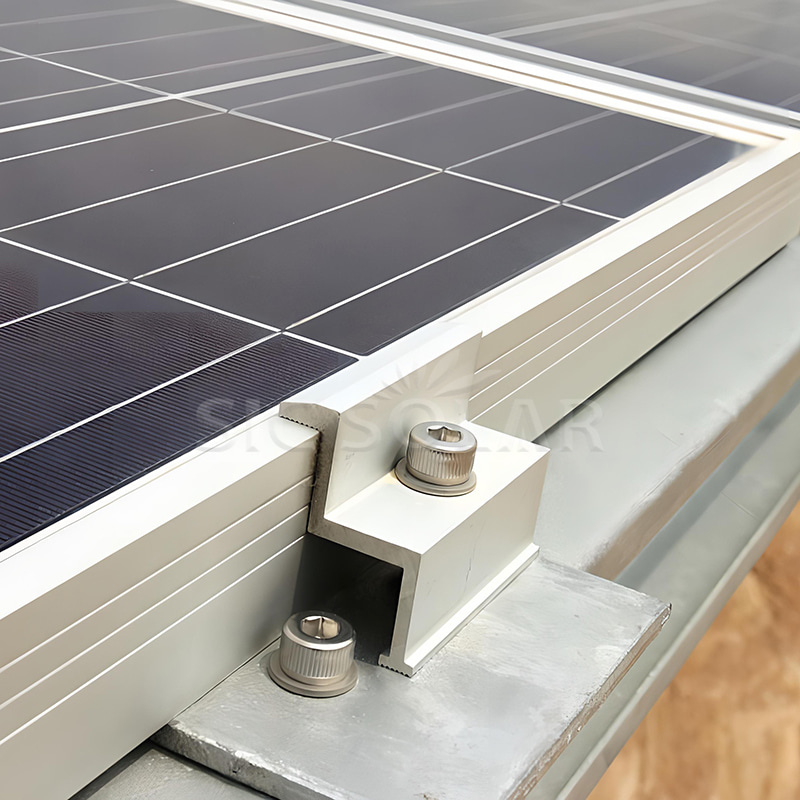

Application Scenario

Details

Package

We use Solar Panel End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
