Solar Rail End Clamp

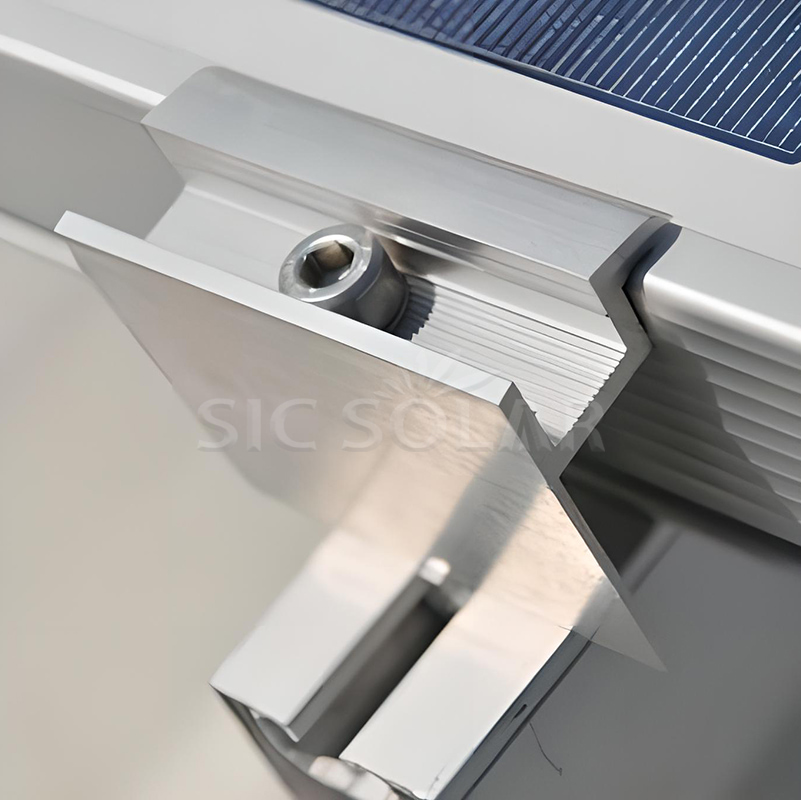

Solar Rail End Clamp is fitted at the outer edge of a solar panel array to hold the module frame firmly against the mounting rail. It works with compatible aluminum rails to create a stable connection between the panel and the mounting structure.Different clamp sizes can be used depending on the panel frame thickness, rail profile, and project requirements.

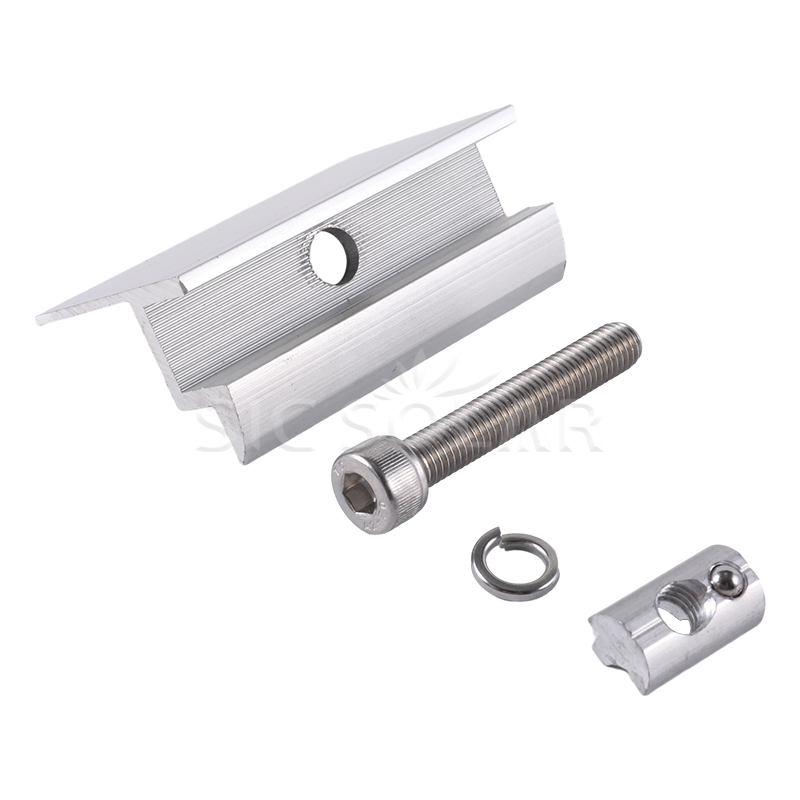

Components

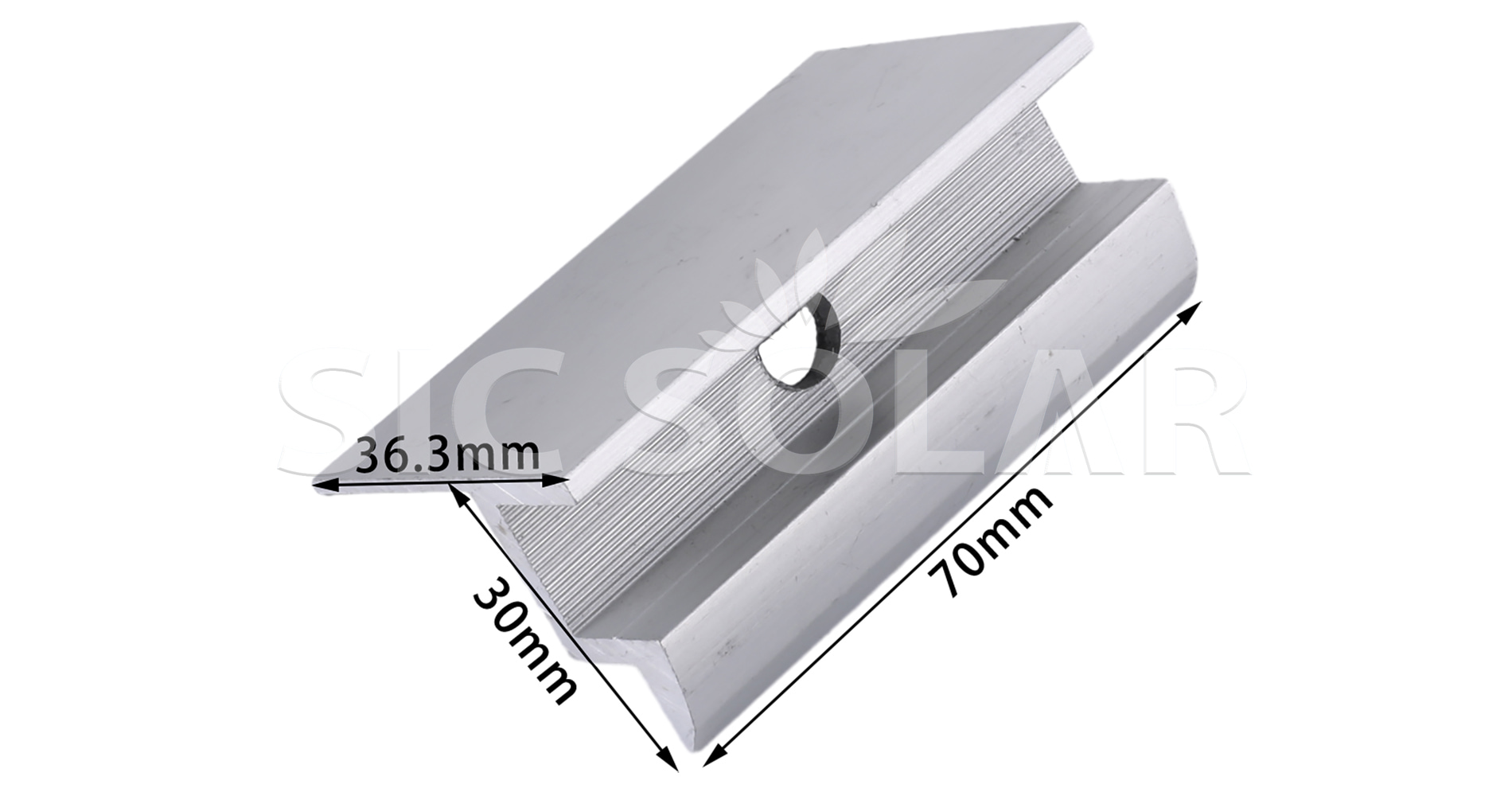

Parameter (Specification)

Installation Steps

• Install the Solar Rail：Install the rails according to the project layout. Check that they’re properly aligned and firmly fixed.
• Position the Solar Panel：Place the panel on the rails and align it with the planned array layout.
• Position the End Clamp：Place the end clamp against the outer edge of the panel frame.
• Insert the Fastener：Slide or insert the fastener into the compatible rail channel.
• Adjust the Clamp：Move the clamp into position so it sits properly against the panel frame and within the approved clamping area.
• Tighten the Fastener：Tighten the fastener to the manufacturer’s recommended torque.
• Perform a Final Check：Check the panel alignment and confirm that the clamp is firmly holding both the module frame and rail.

Installation Precautions

• Check that the clamp matches the panel frame thickness.
• Confirm that the clamp and rail profile are compatible.
• Align the panel properly before final tightening.
• Use the correct fasteners specified for the mounting system.
• Follow the recommended torque value during installation.
• Don’t over-tighten, as too much pressure can damage the panel frame.
• Never use cracked, damaged, or deformed clamps or fasteners.
• Make sure the rails are securely installed before mounting the panels.

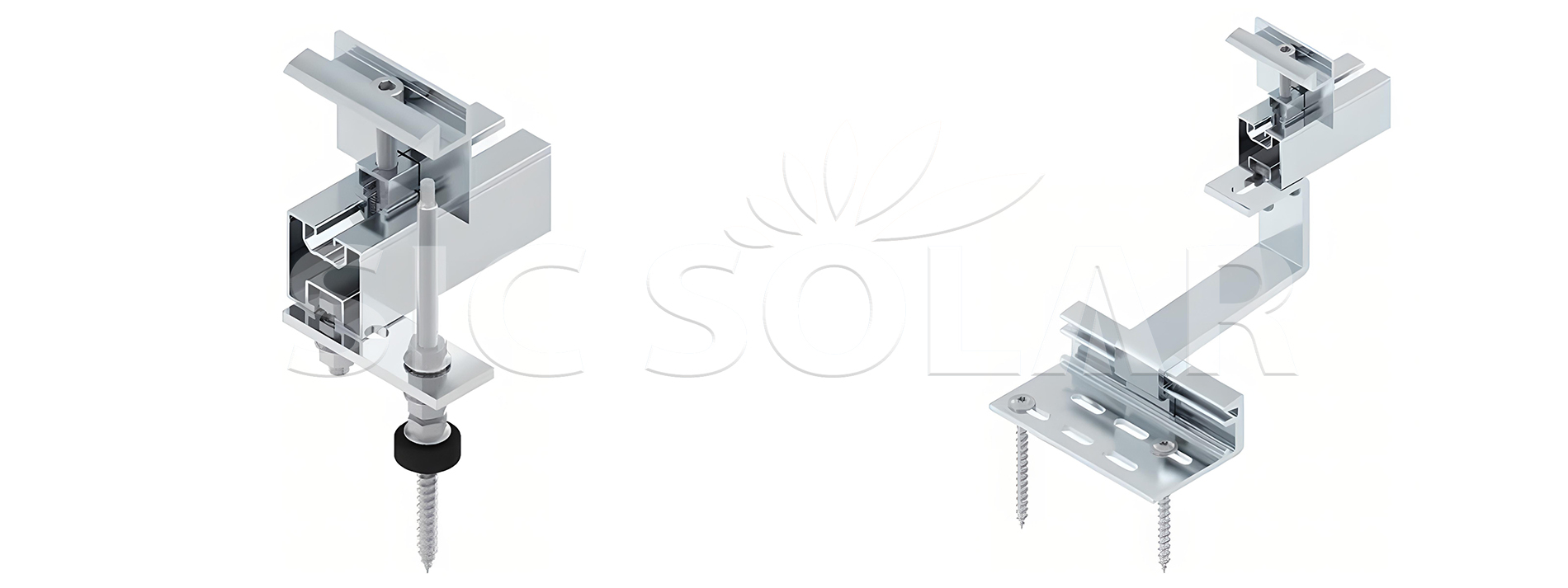

Application Scenario

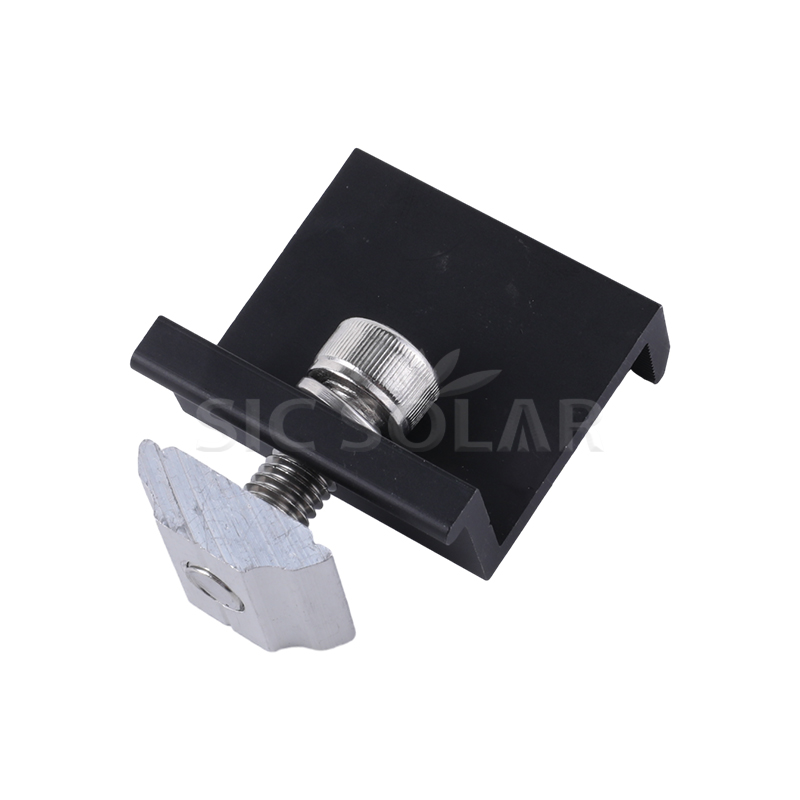

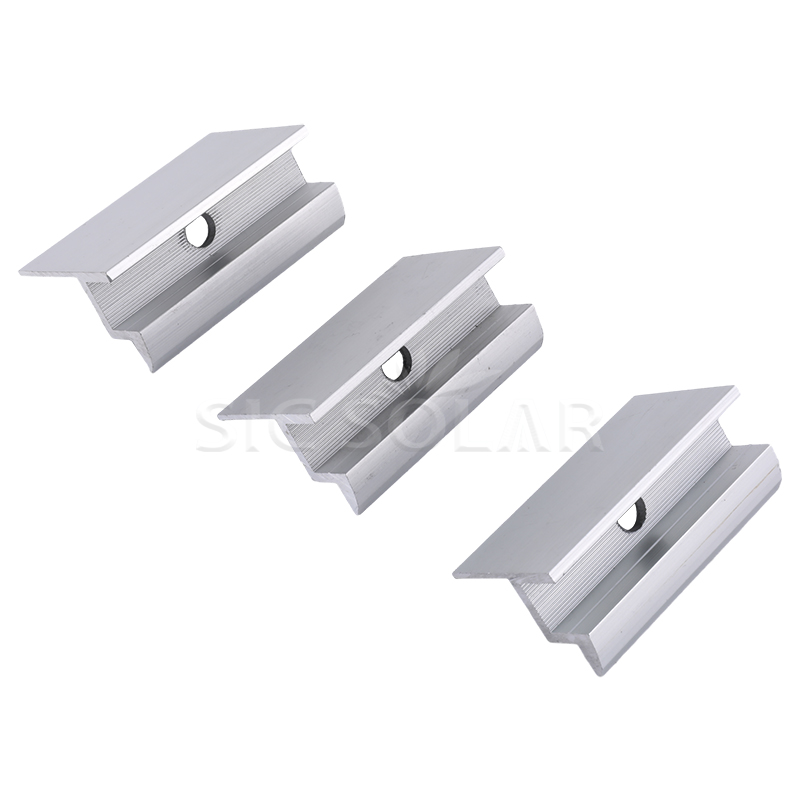

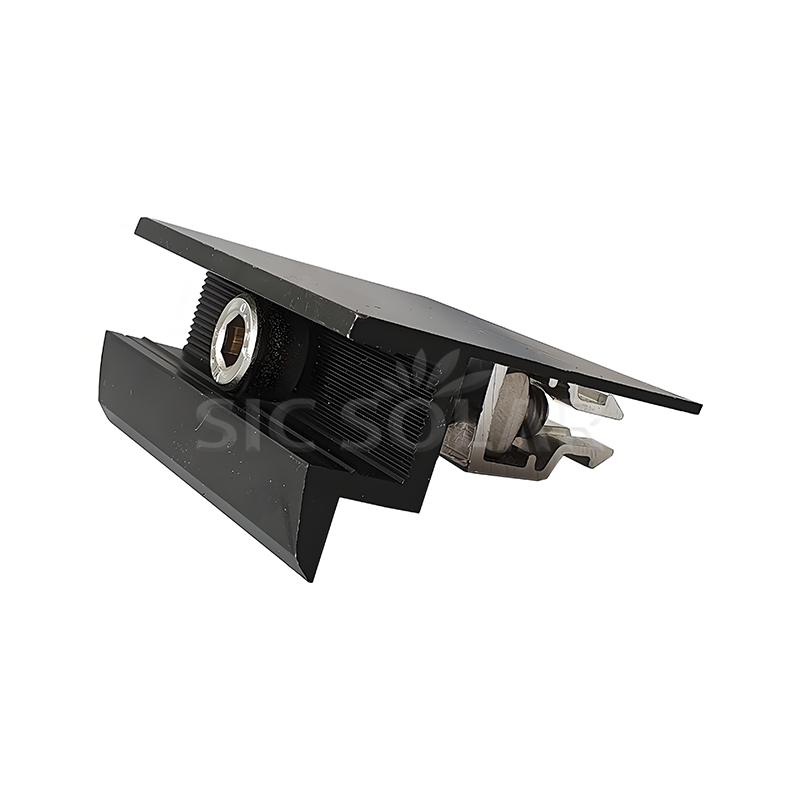

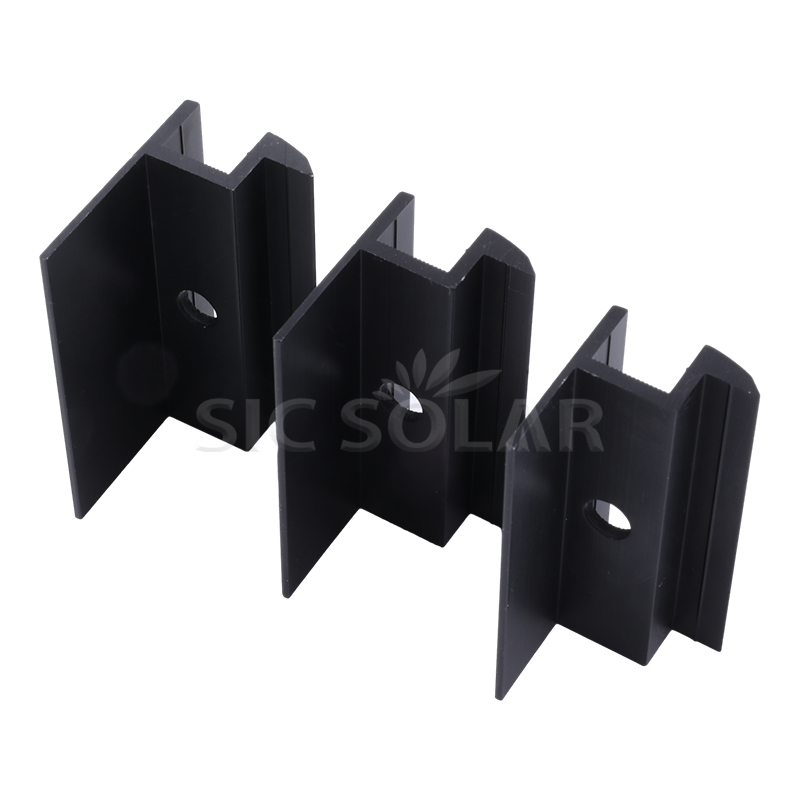

Details

Package

We use Solar Rail End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
