Solar Ground Mount End Clamp

Installed at the ends of solar panel rows, the Solar Ground Mount End Clamp connects module frames firmly to the mounting rails. It plays a crucial role in fastening components in ground-mounted solar structures, ensuring panels remain securely positioned despite changing outdoor conditions.

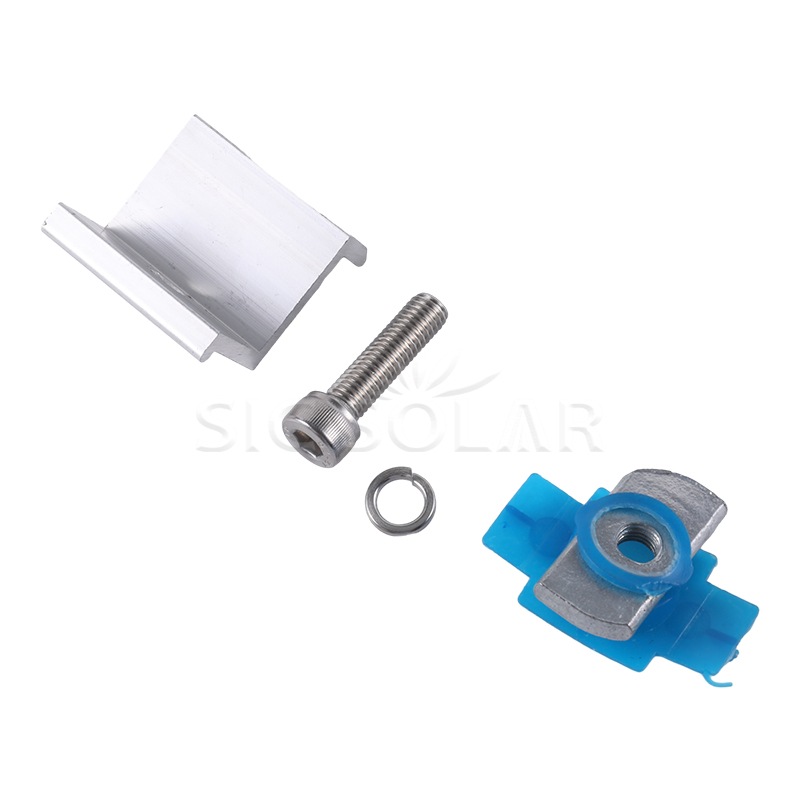

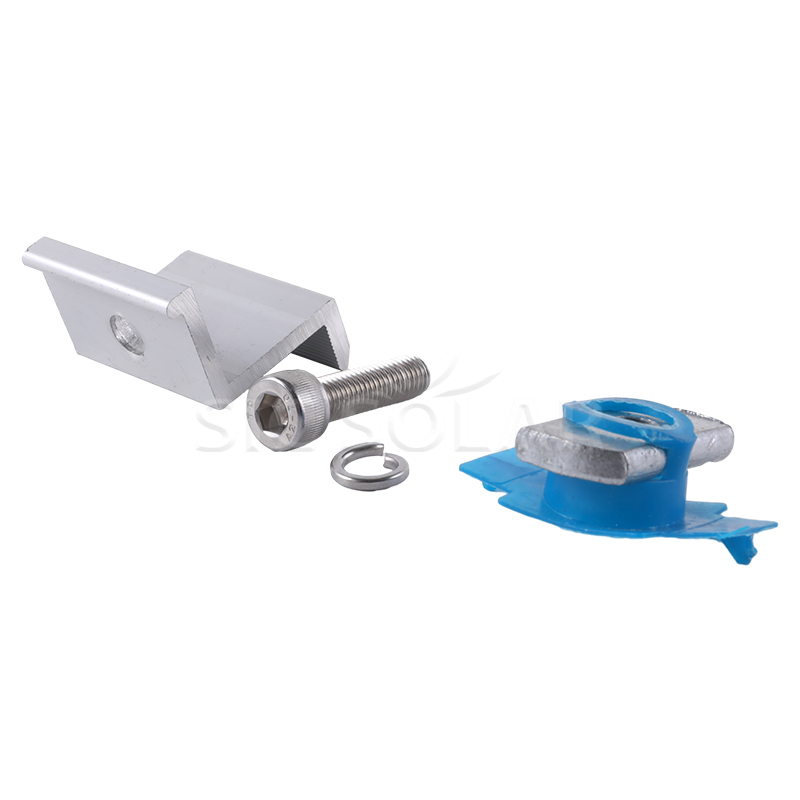

Components

Parameter (Specification)

Features & Advantages

• Strong Module Fixation: The end clamp guarantees reliable mechanical fixation at the solar panel's edge, minimizing unwanted movement and vibration.
• Durable Materials: Constructed from high-quality aluminum alloy, which offers excellent strength and corrosion resistance, while stainless steel fasteners ensure reliable performance in outdoor environments.
• Easy Installation: Its straightforward design enables installers to quickly position and tighten the clamp, reducing installation time and labor costs.
• Stable Panel Alignment: The clamp maintains the proper position and alignment of outer panels with the mounting rails.
• Weather Resistance: Designed to withstand sunlight, rain, humidity, and variable weather conditions in outdoor solar applications when properly specified.
• Wide Application: Compatible with various ground-mounted solar structures, including fixed-tilt systems, single-row arrays, and large-scale PV projects.
• Low Maintenance: The use of durable materials and a simple design minimizes routine maintenance needs throughout the system's service life.

Installation Steps

• Install the Ground Mounting Structure: Complete installation of foundations, posts, beams, and mounting rails according to project specifications.
• Position the Solar Panel: Place the solar panel onto the mounting rails and align it as per the planned array layout.

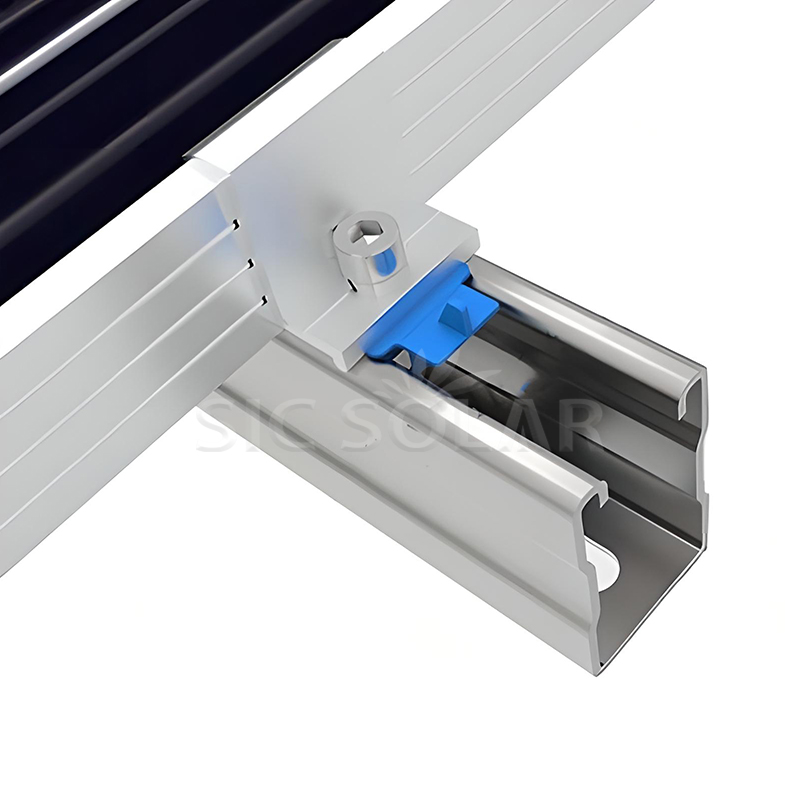

• Position the End Clamp: Set the Solar Ground Mount End Clamp against the outer edge of the solar panel frame.
• Engage the Rail: Insert or slide the clamp fastener into the compatible rail channel and adjust as needed.
• Adjust the Panel: Ensure correct positioning, spacing, and alignment before final tightening.

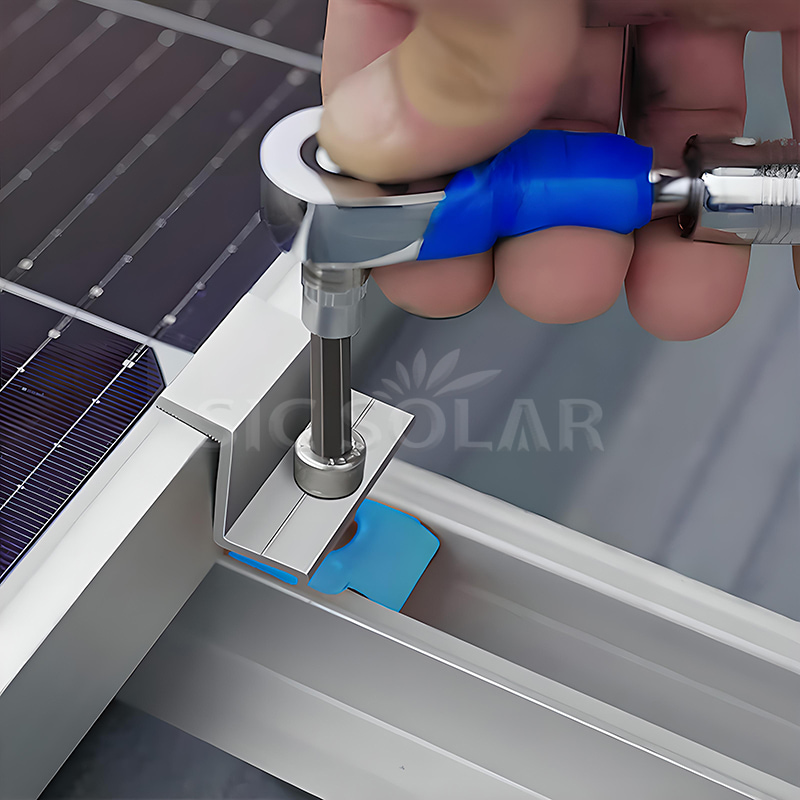

• Tighten the Fastener: Tighten with the manufacturer's specified torque.
• Perform a Final Inspection: Verify correct clamp positioning and secure attachment of the solar panel to the mounting rail.

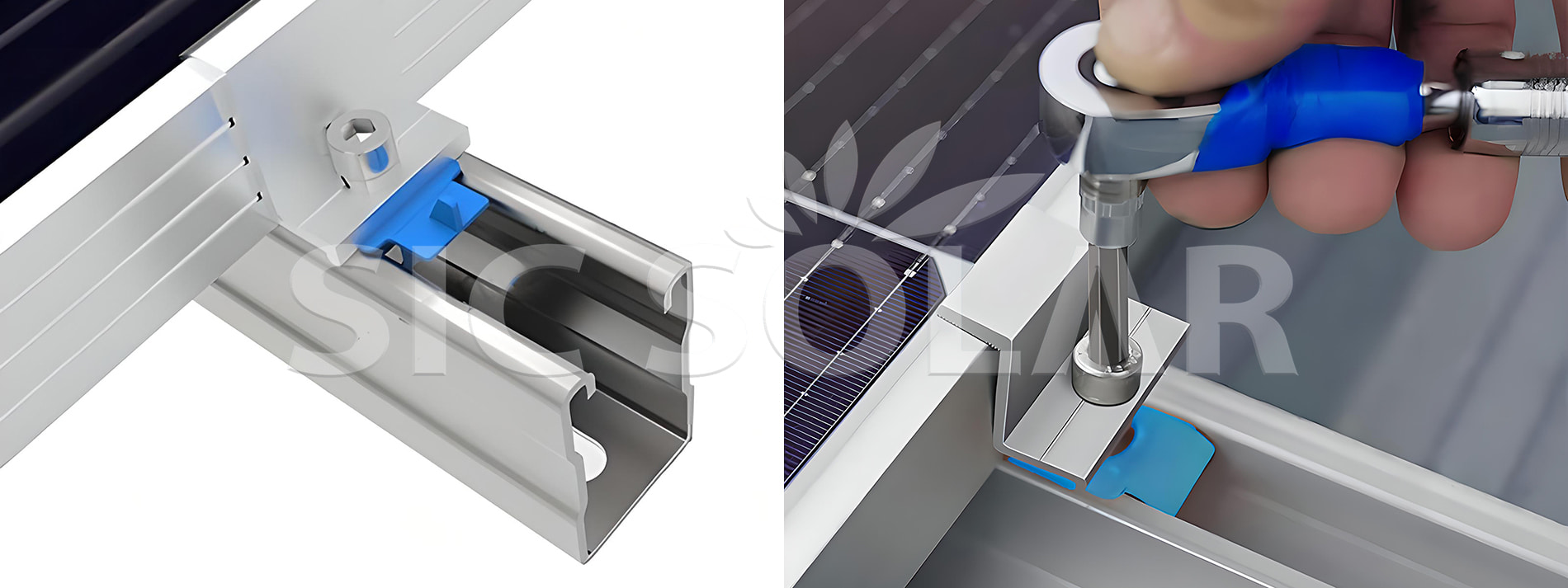

Application Scenario

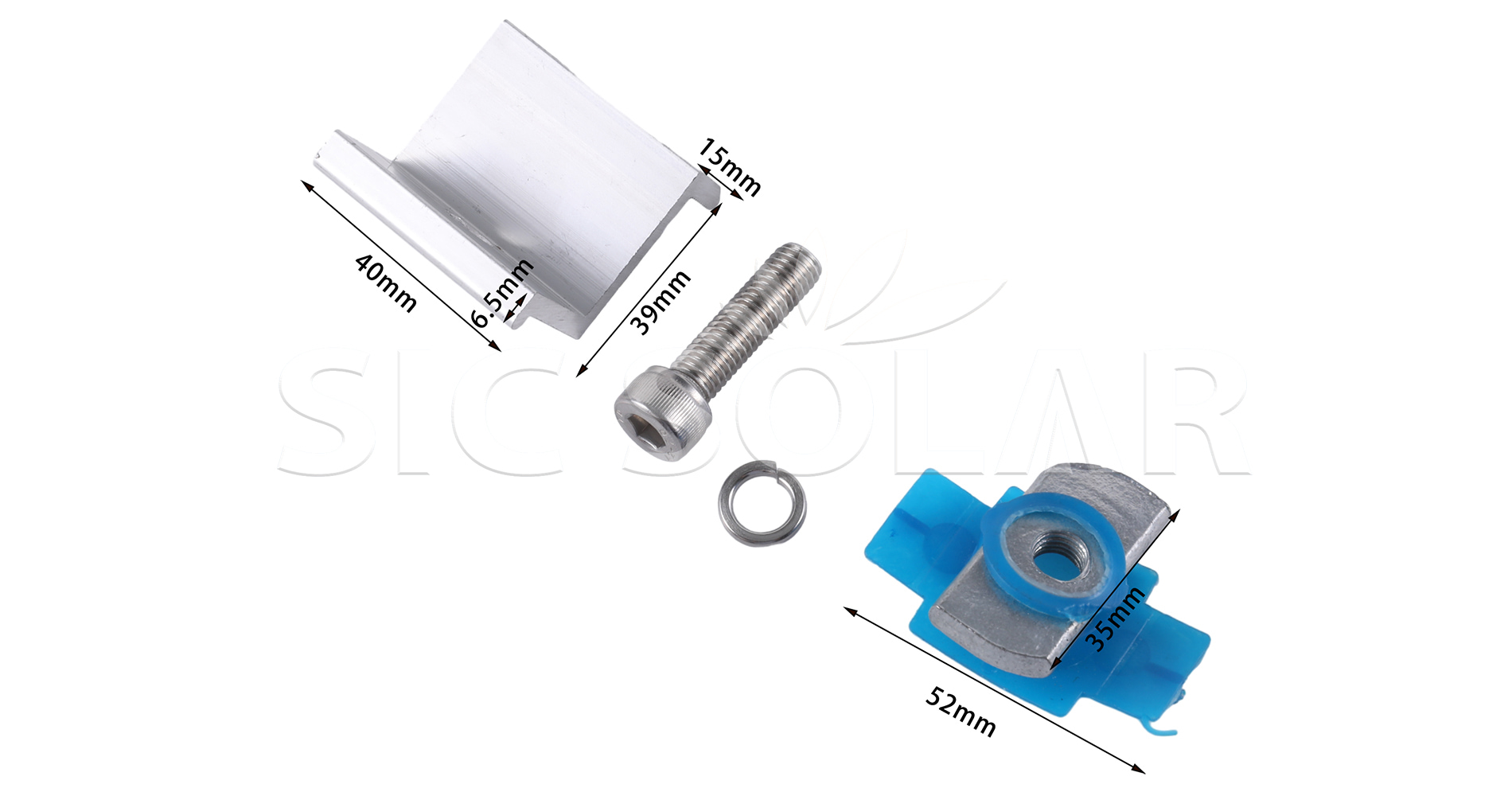

Details

Package

We use Solar Ground Mount End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
