Solar Rail End Clamp Mounting

Solar Rail End Clamp Mounting uses end clamps to secure the outer edges of solar panel frames to compatible aluminum rails. The clamps sit at the ends of each panel row, creating a solid connection between the modules and the mounting structure.

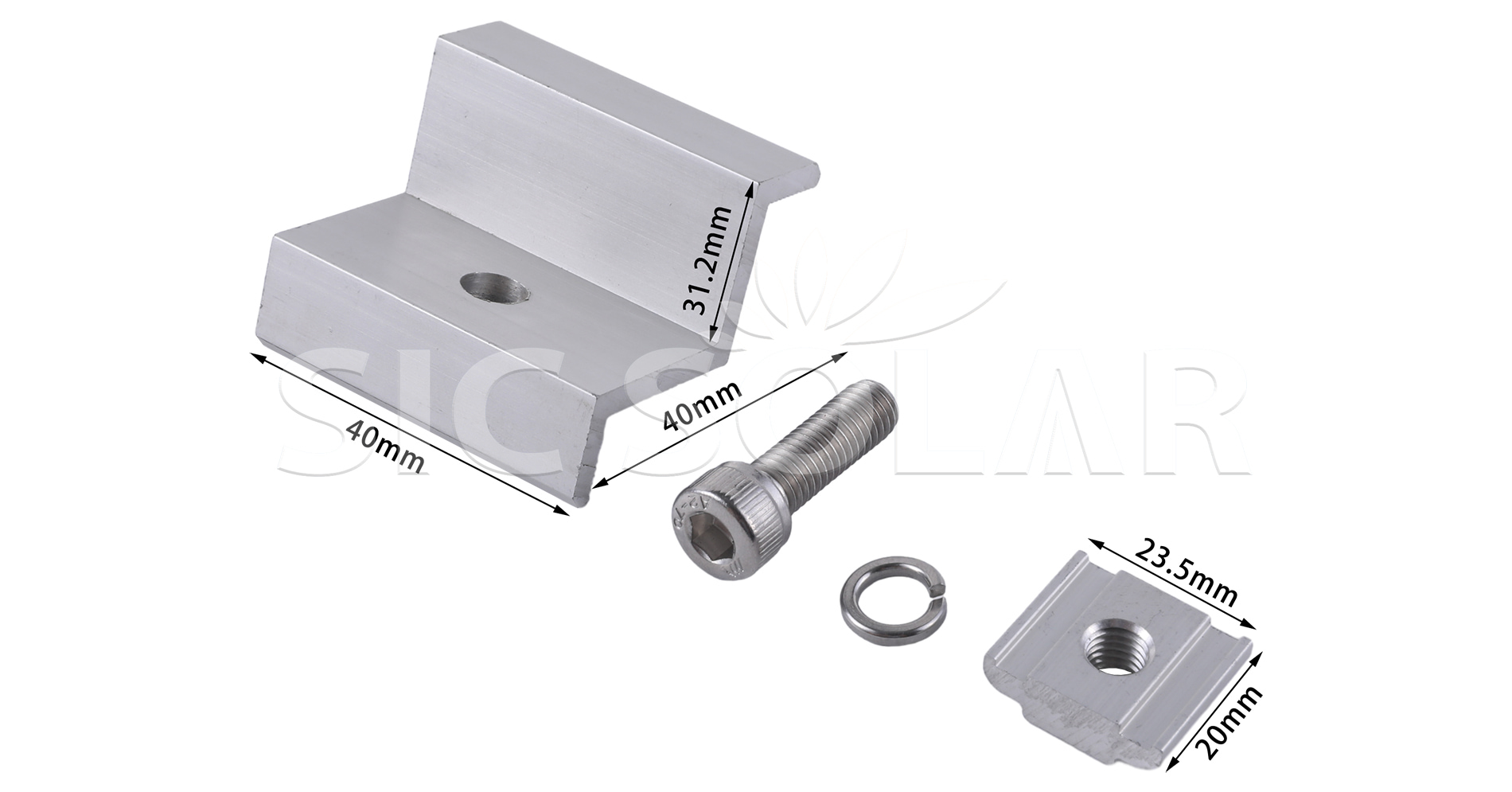

Components

Parameter (Specification)

Features & Advantages

• Secure Panel Fixing: Holds the outer edge of the solar module firmly against the mounting rail.
• High-Strength Aluminum: AL6005-T5 aluminum alloy offers a good balance of strength, low weight, and durability.
• Good Corrosion Resistance: Anodized aluminum and stainless steel hardware help protect against moisture, oxidation, UV exposure, and changing weather.
• Easy Installation: The simple design makes positioning and tightening quick and straightforward.
• Multiple Size Options: Different clamp heights are available for different panel frame thicknesses and project needs.
• Clean Finish: The compact design gives the outer edges of the solar array a neat, finished look.
• Versatile Use: Suitable for rooftop, ground-mounted, commercial, industrial, and solar carport PV systems.

Installation Process

• Prepare the Mounting Rails：Check that the rails are properly installed, aligned, and securely attached to the supporting structure.
• Position the First Solar Panel：Place the first panel on the rails based on the planned array layout.
• Install the End Clamp：Position the end clamp over the outer edge of the panel frame and align it with the rail.
• Adjust the Panel：Check the panel position and alignment with the rail and nearby modules before tightening.
• Tighten the Fastener：Tighten the fastener to the manufacturer’s recommended torque.
• Install Additional Modules：Place the next panels and secure the gaps between adjacent modules with compatible mid clamps.
• Install the Final End Clamp：Fit an end clamp to the outside edge of the last panel in the row.
• Final Inspection：Check the clamps, fasteners, rails, and panel alignment. Make sure all connections are properly secured before finishing the installation.

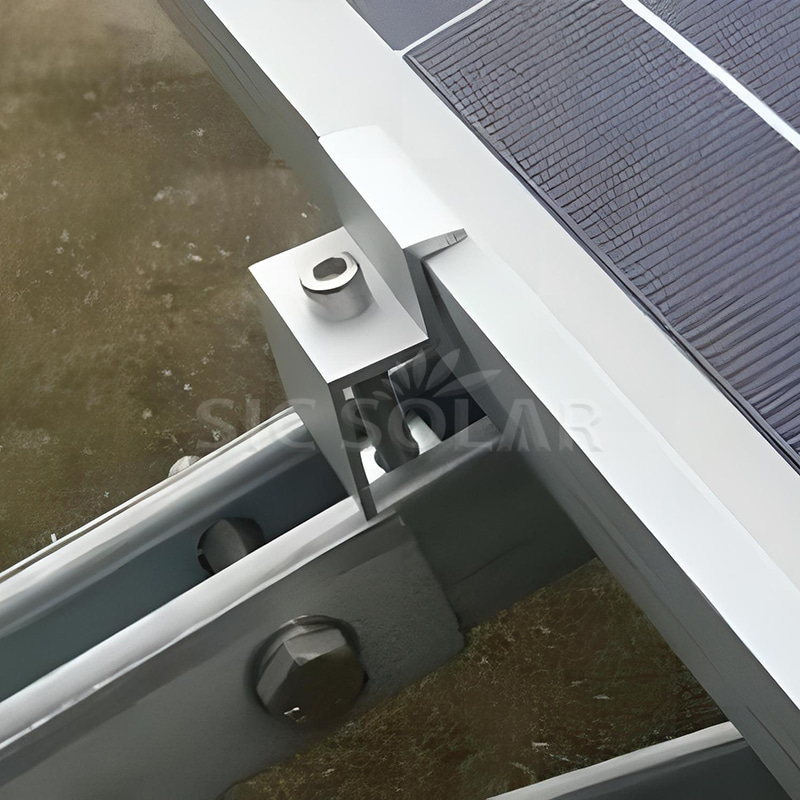

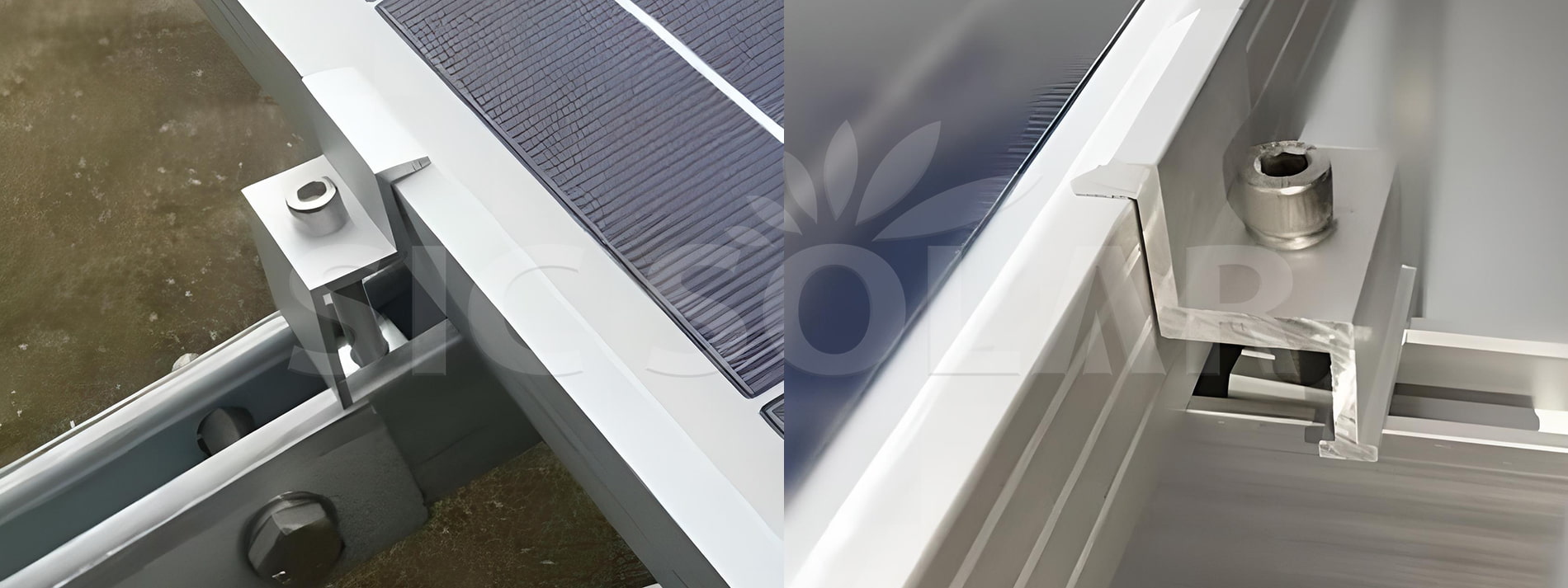

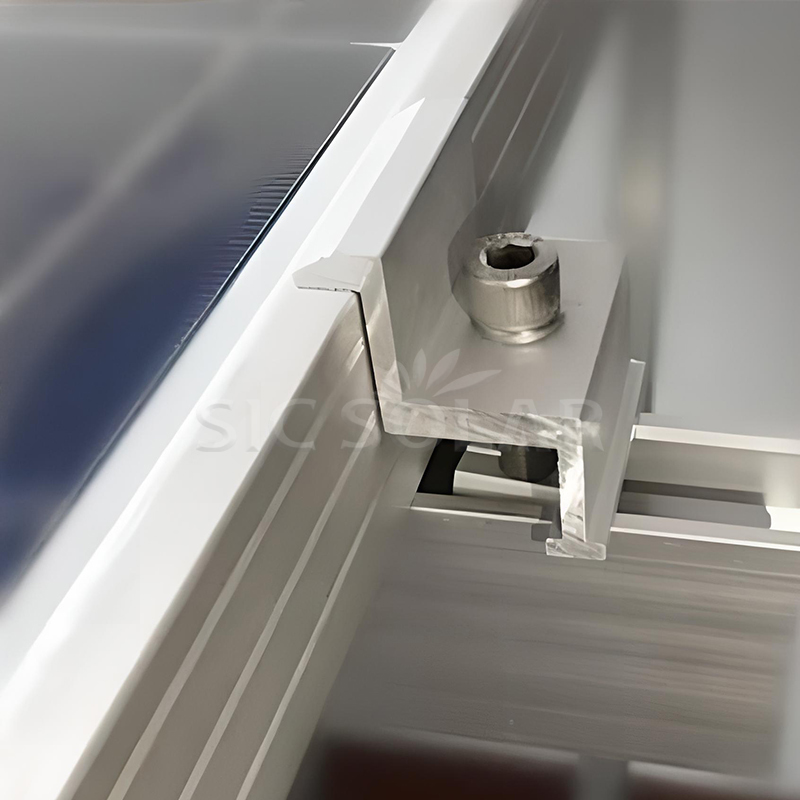

Application Scenario

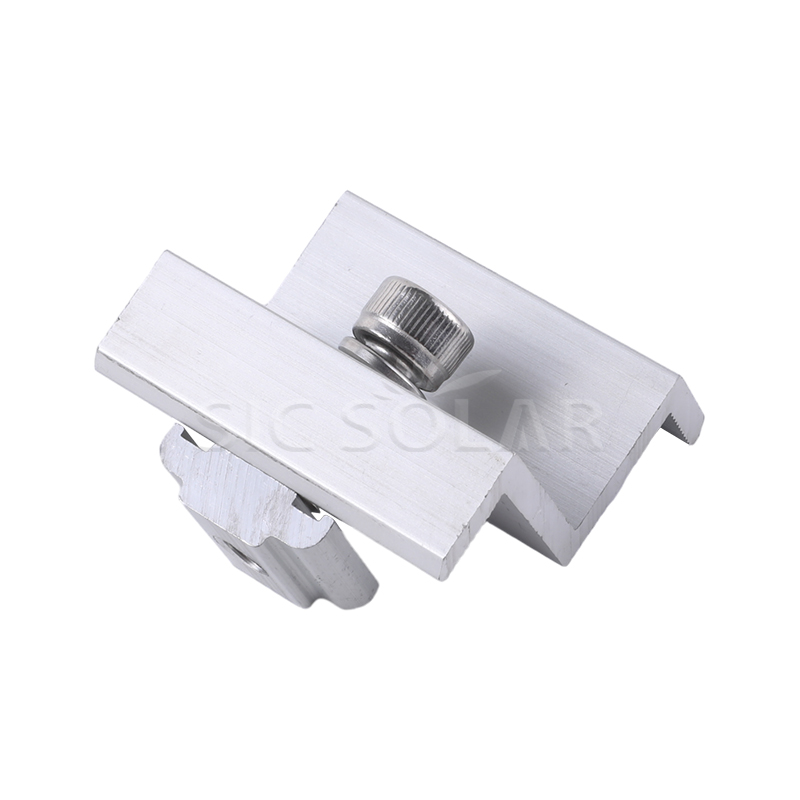

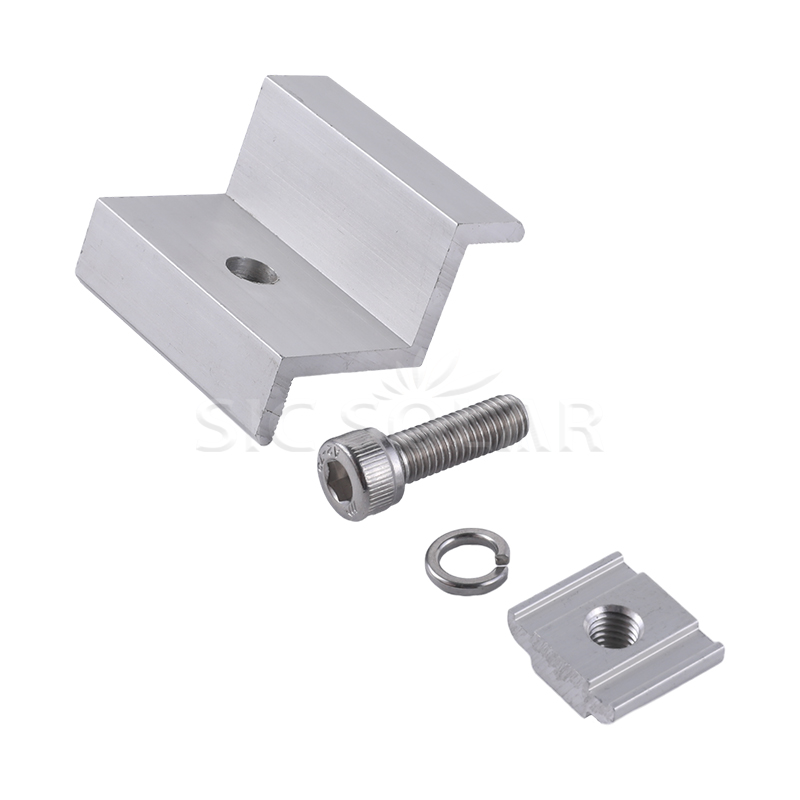

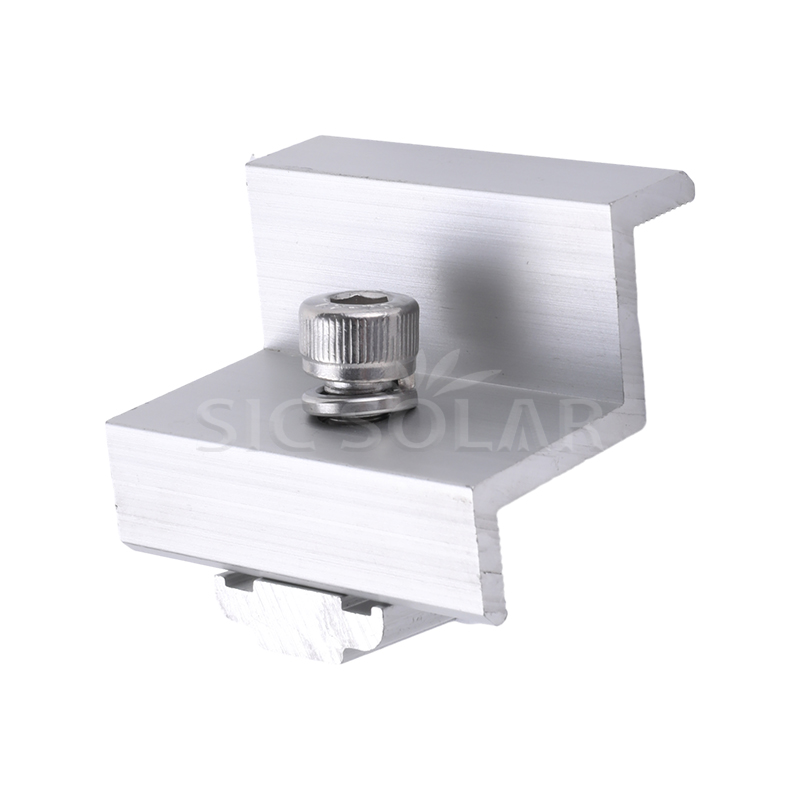

Details

Package

We use Solar Rail End Clamp Mounting standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
