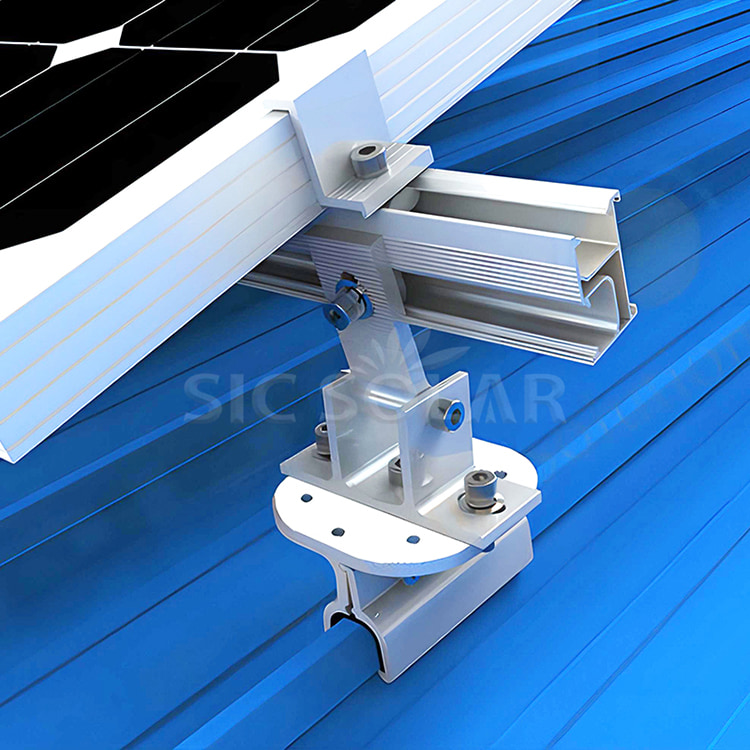

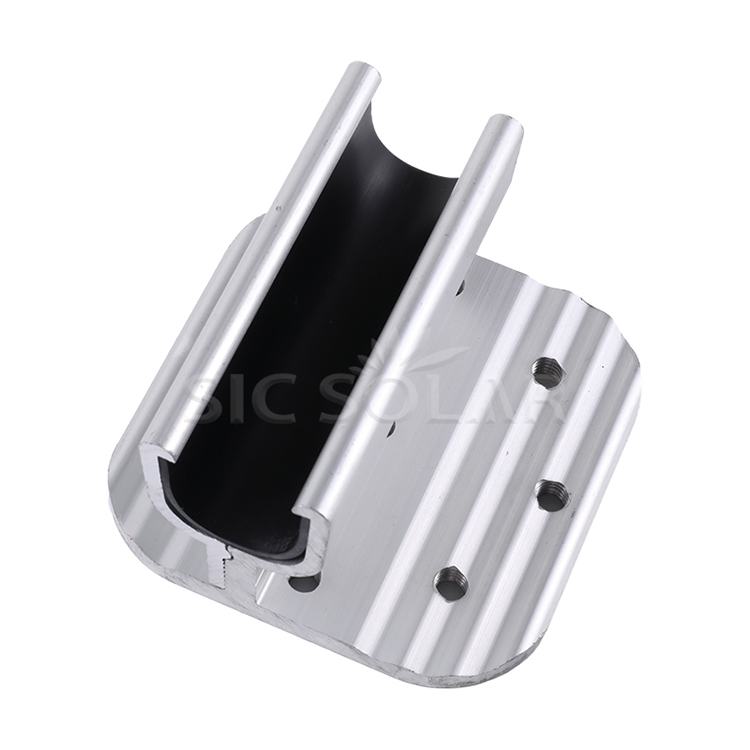

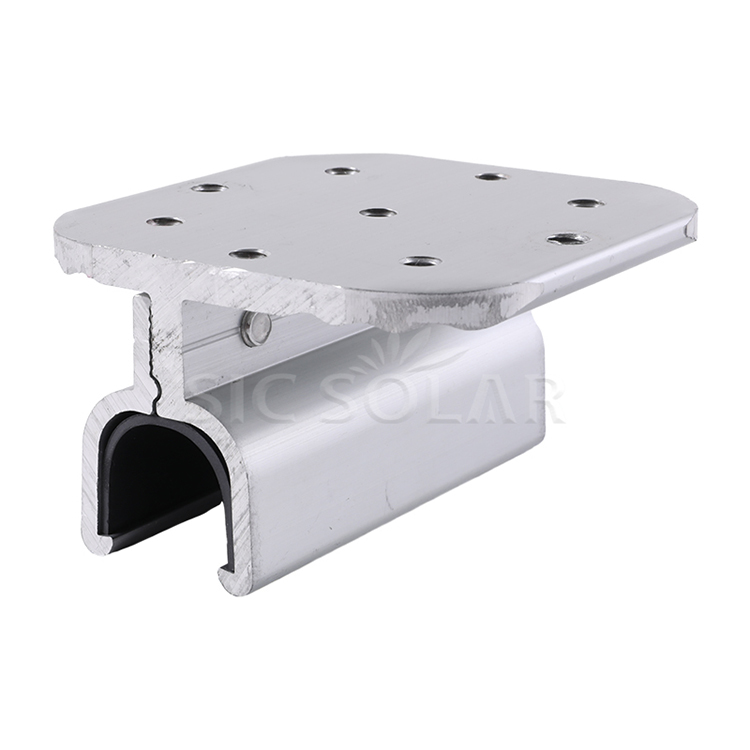

Universal Tin Roof Solar Panel Clamps

Universal Tin Roof Solar Panel Clamps are a safe, durable and easy to install solution for mounting solar panels on metal roofs. Whether you require a penetration or non-penetration system, these clamps provide strong holding power, leak-proof functionality and long-term reliability.

Analogous Products

Details

• Item NO.： SIC-TC-08
• Installation Site： Roof
• Material： Al6005-T5
• Wind Load： <60M/S
• Snow Load： <1.4KN/M²
• Color： Natural or Customized
• Warranty： 10 years and 25 years service time

Main Features

1. Universal compatibility： Universal Tin Roof Solar Panel Clamps are compatible with a variety of metal roof types. Suitable for different track systems and solar panel frame sizes.
2. Easy and fast installation: Universal Tin Roof Solar Panel Clamps come with pre-installed parts to reduce installation time. No drilling required to maintain roof integrity.
3. Safe and reliable fastening: Strong grip ensures resistance to wind and snow loads. Solar Metal Roof Clamps are equipped with EPDM rubber pads for better sealing and waterproofing.
4. Non-penetrating: Standing Seam Metal Roofing Clamp use compression force to secure panels without drilling holes in the roof. Prevent leaks and structural damage.

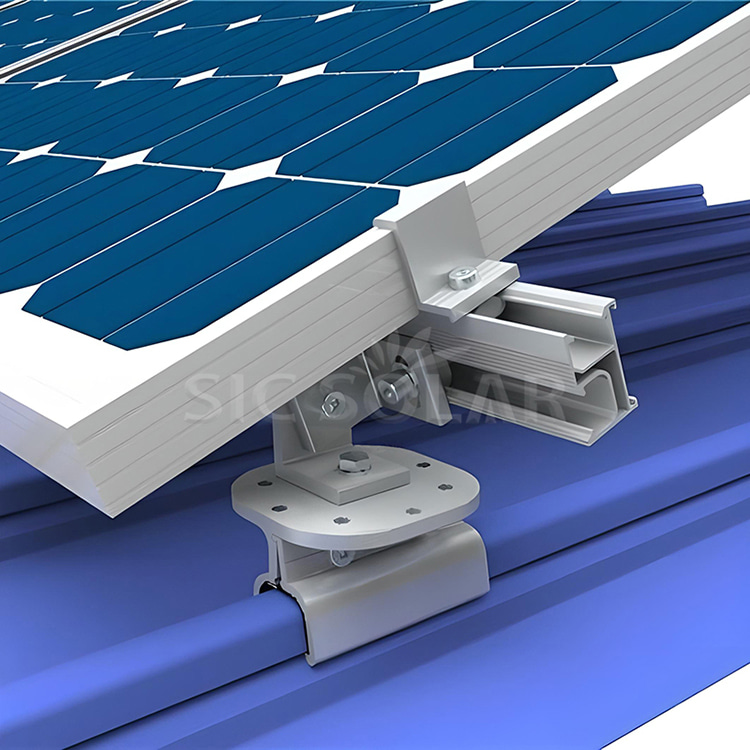

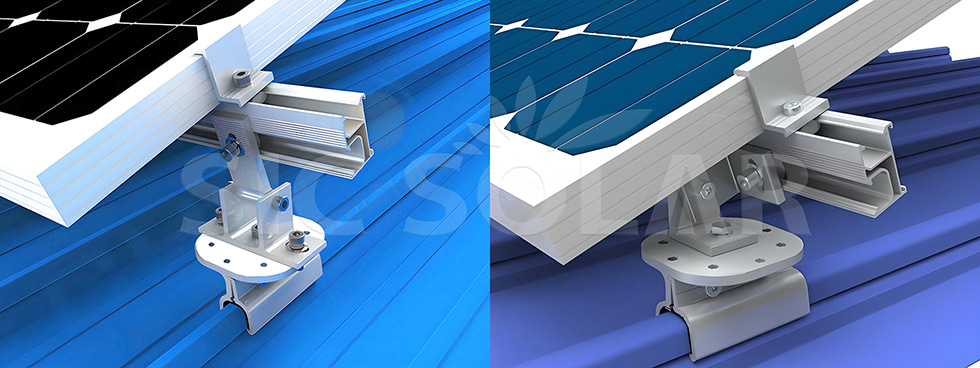

Installation Display

Installation Guide

1. Place the clamp: Align the clamp to the raised part or rib of the tin roof, making sure the clamp is centered and level to support the mounting rail or panel frame.
2. No drilling and quick installation: Place the clamp on the metal roof panel, tighten the nut to secure, and install the sealing gasket to keep it waterproof.
3. Install the mounting rail or panel: Use T-bolts or hex bolts to fasten the aluminum rail to the clamp.
4. Tighten and check: Use a torque wrench to tighten all bolts to the manufacturer's specifications, check for even pressure and proper sealing.

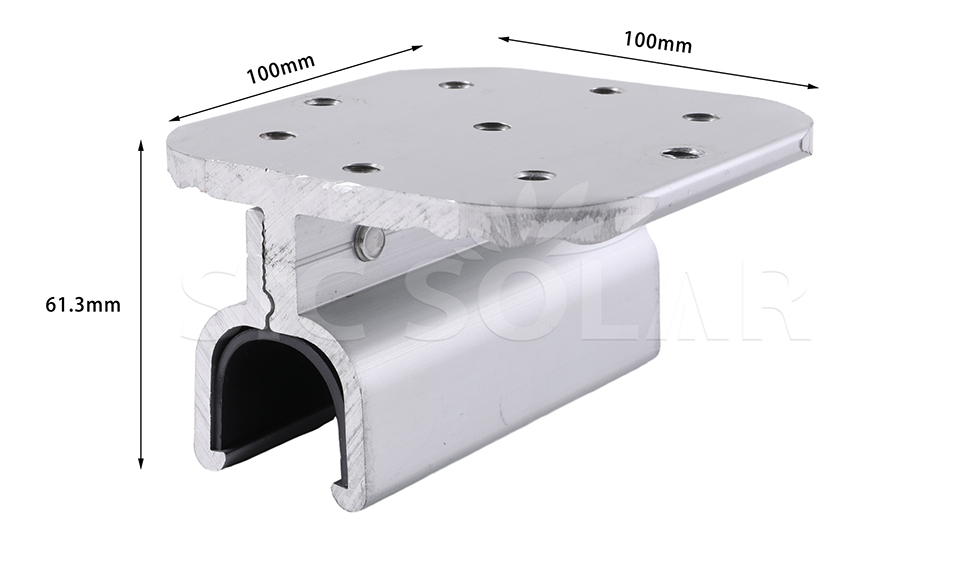

Size Information

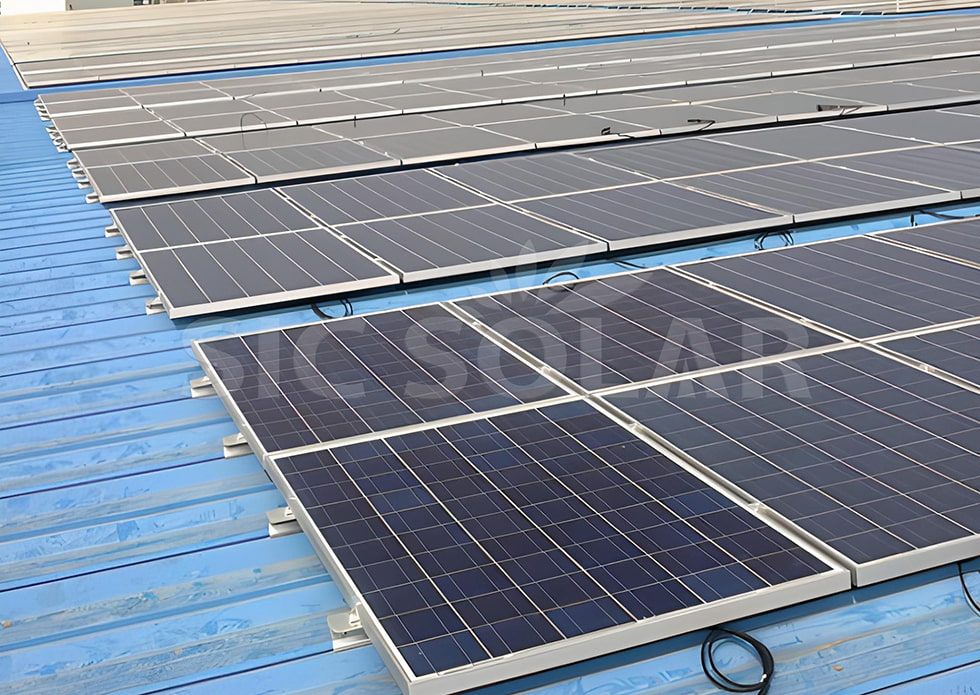

Real Project Display

Package

We use Universal Tin Roof Solar Panel Clamps standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
