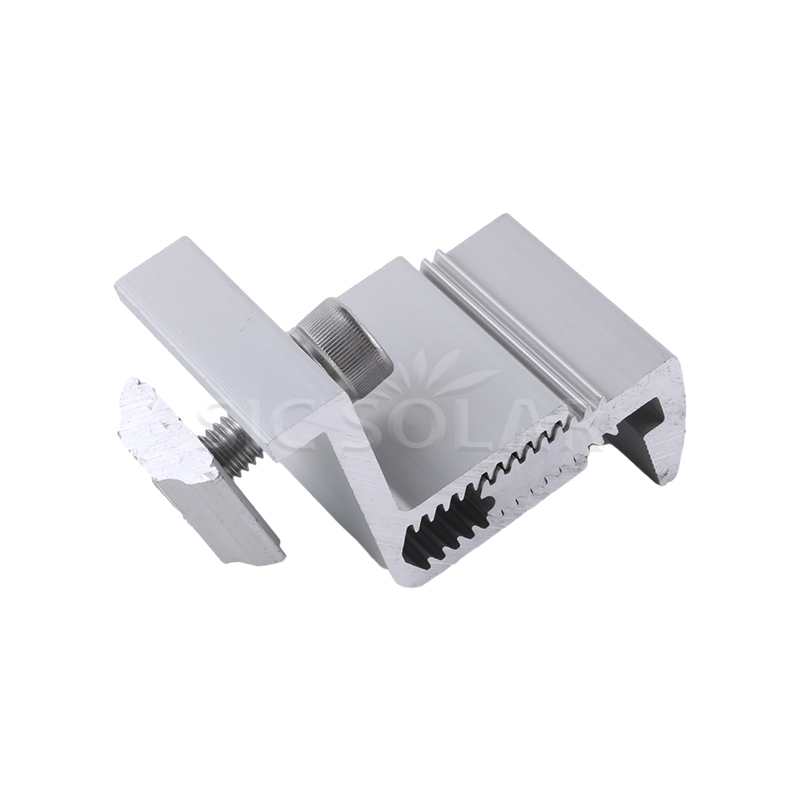

Adjustable End Clamp

Adjustable End Clamp is used at the ends of solar panel rows to hold the outermost module firmly against the mounting rail. Its adjustable height makes it easy to work with panels that have different frame thicknesses. Compared with fixed end clamps, one adjustable clamp can cover a wider range of module sizes. This can simplify installation and reduce the number of different clamp sizes that need to be kept in stock.

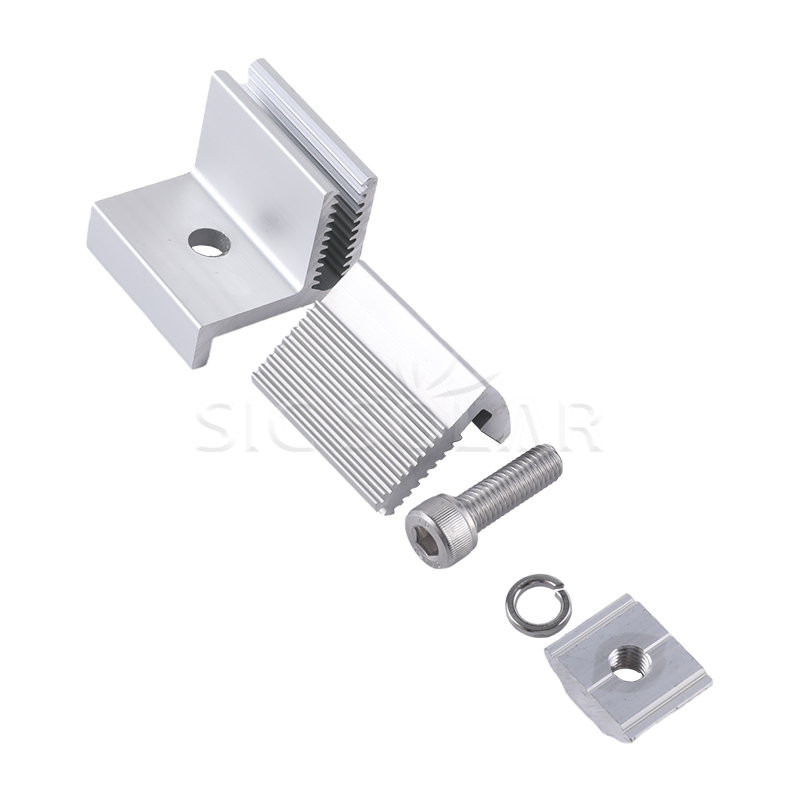

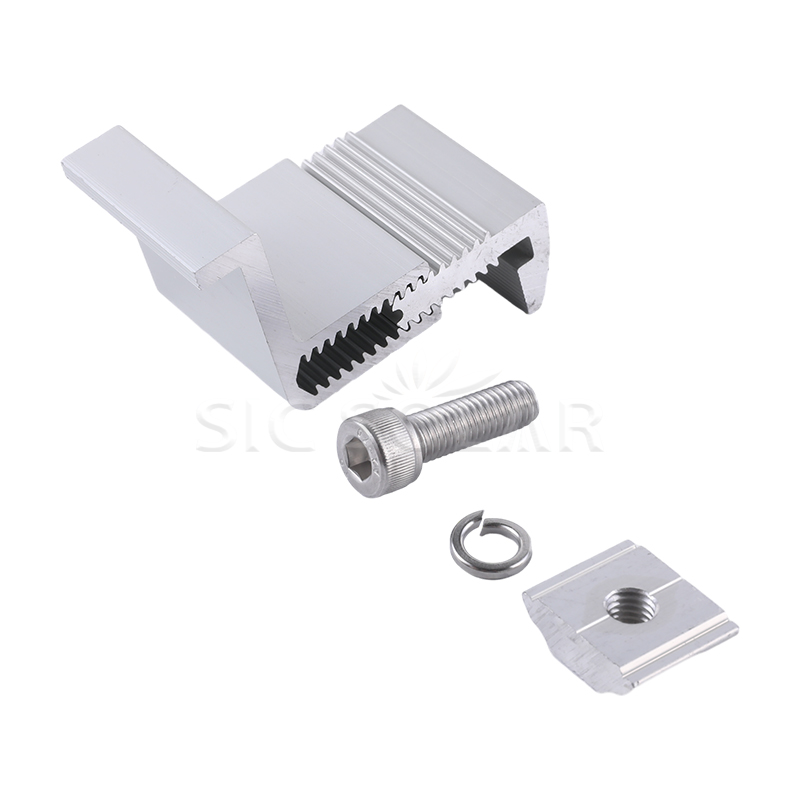

Components

Parameter (Specification)

Why Choose an Adjustable End Clamp?

• Flexible fit: Works with different solar panel frame heights.
• Easy installation: Quick to position and tighten on compatible mounting rails.
• Secure fixing: Keeps the outer edge of the panel firmly in place.
• Fewer clamp sizes: One adjustable design can cover multiple module specifications.
• Durable construction: Built for long-term outdoor PV applications.
• Lightweight: Easy to carry, handle, and install on site.
• Simpler inventory: Fewer variations can make storage and project preparation easier.

Installation & Maintenance Precautions

• Check compatibility: Make sure the clamp’s adjustment range matches the panel frame and mounting rail.
• Stay within the clamping zone: Position the clamp within the area specified by the panel manufacturer. Incorrect placement may affect the module or its warranty.
• Use the right torque: Tighten the fastener to the recommended torque. Avoid over-tightening, which can damage the frame or mounting parts.
• Check the contact: The clamp should sit flat and evenly against the panel frame, with no gaps or tilting.
• Align panels before tightening: Check the module position and alignment before fully tightening the clamps.
• Inspect regularly: Check clamps, bolts, nuts, and rail connections for looseness, corrosion, or visible damage.
• Consider the environment: In coastal or highly corrosive areas, use materials and finishes suited to local conditions and inspect them more often.
• Follow installation requirements: Always follow local building and structural requirements, as well as the solar module manufacturer's installation instructions.

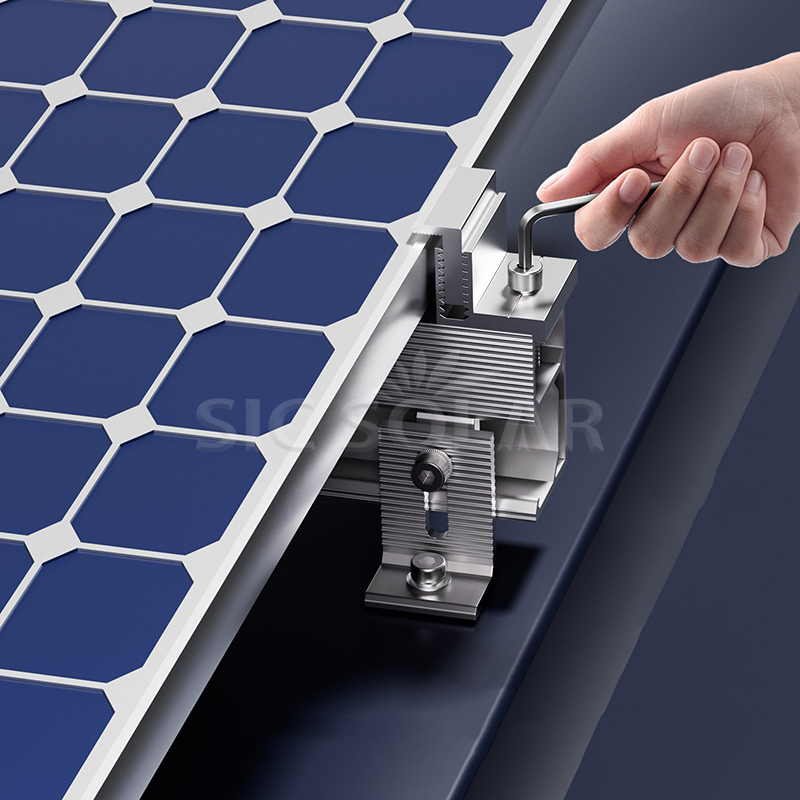

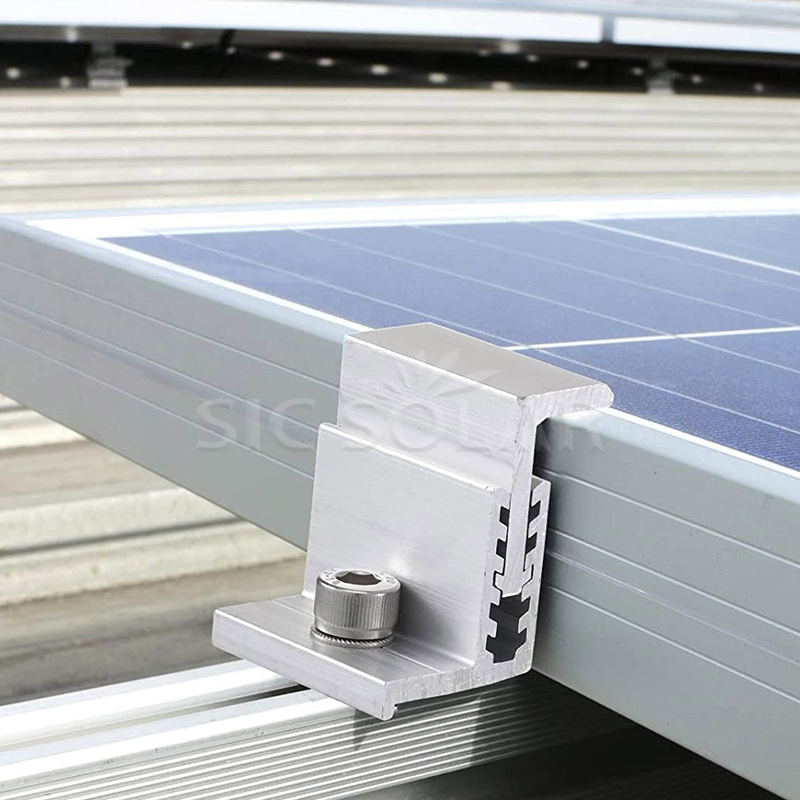

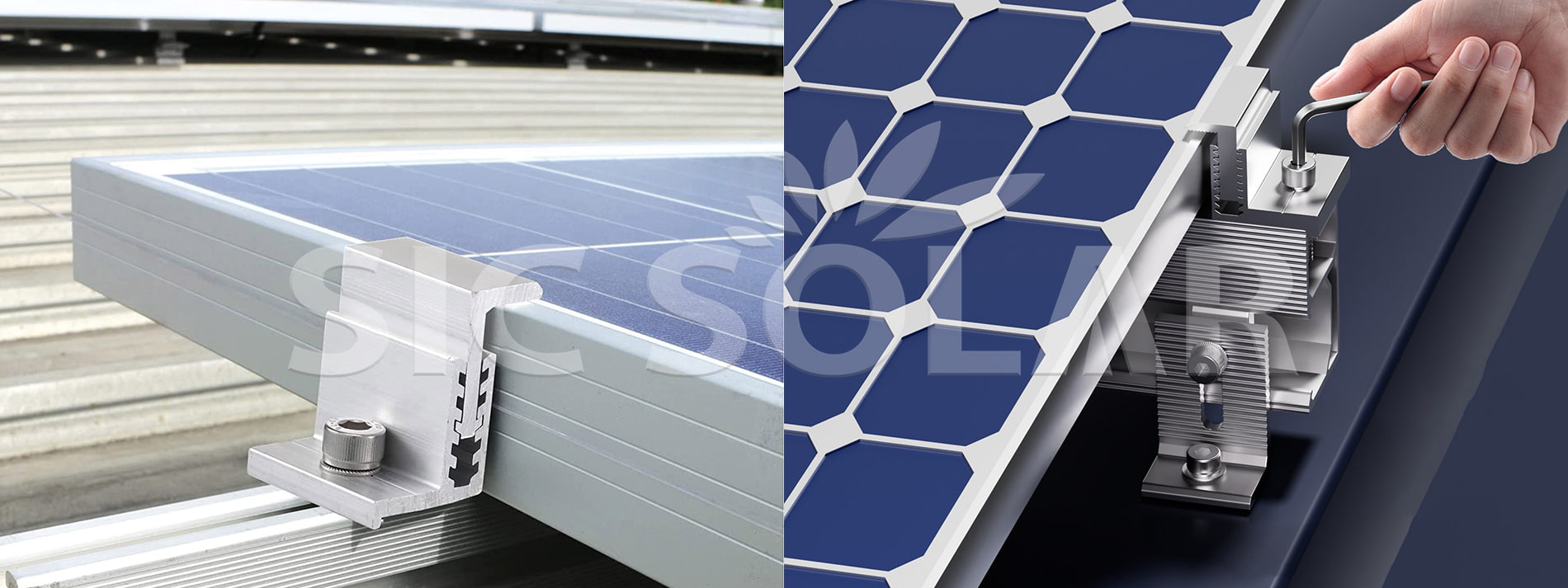

Application Scenario

Package

We use Adjustable End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
