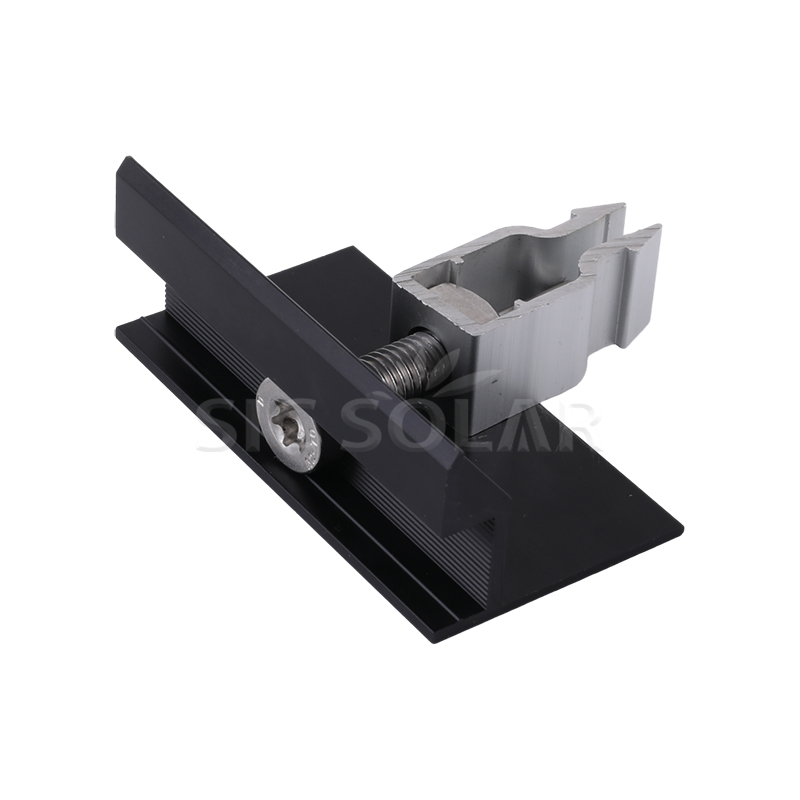

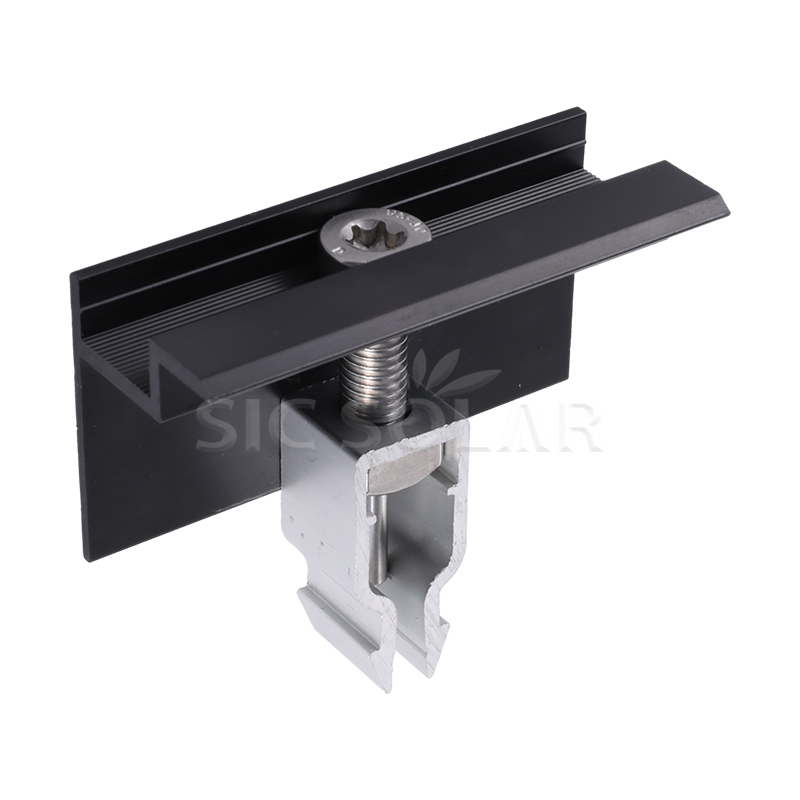

Easy Installation Aluminum Solar Panel End Clamp

Easy Installation Aluminum Solar Panel End Clamp is fitted at the outer edge of a solar panel row to hold the module frame firmly against the mounting rail. It provides a stable connection and helps keep panels in place under wind, vibration, and other outdoor conditions.

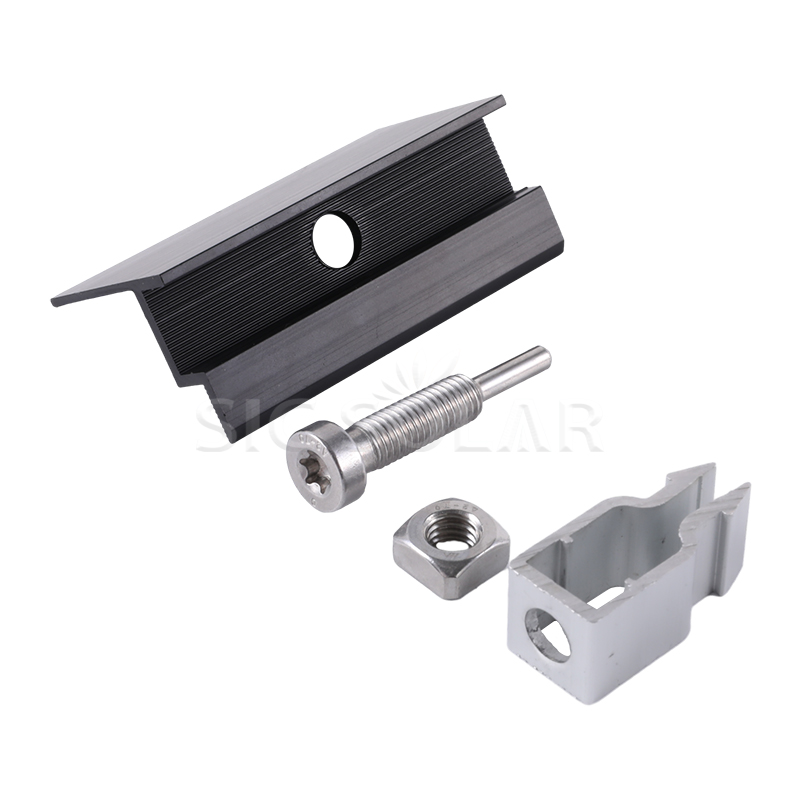

Components

Parameter (Specification)

Maintenance Recommendations

• Inspect the end clamps and fasteners during routine PV system maintenance.
• Check fastener tightness after strong winds, storms, or other severe weather.
• Look for corrosion, cracks, deformation, or other visible damage.
• Make sure the panels remain properly aligned and firmly fixed.
• Replace damaged clamps or fasteners as soon as possible.
• Keep the mounting structure reasonably clean and accessible for inspection.

Installation Process

• Prepare the Mounting Rails：Check that the rails are properly installed, aligned, and securely fixed to the supporting structure.
• Position the Solar Panel：Place the first panel on the rails according to the planned array layout.
• Position the End Clamp：Place the end clamp over the outer edge of the panel frame and align it with the rail.
• Adjust the Panel：Check the panel position and alignment before tightening the clamp.
• Tighten the Fastener：Tighten the bolt to the manufacturer's recommended torque.
• Install Additional Panels：Continue with the remaining modules, using compatible mid clamps between adjacent panels.
• Secure the Final Module：Fit an Easy Install Solar End Clamp to the outside edge of the last panel in the row.
• Final Inspection：Check the clamps, bolts, panel alignment, and rail connections to make sure everything is properly secured.

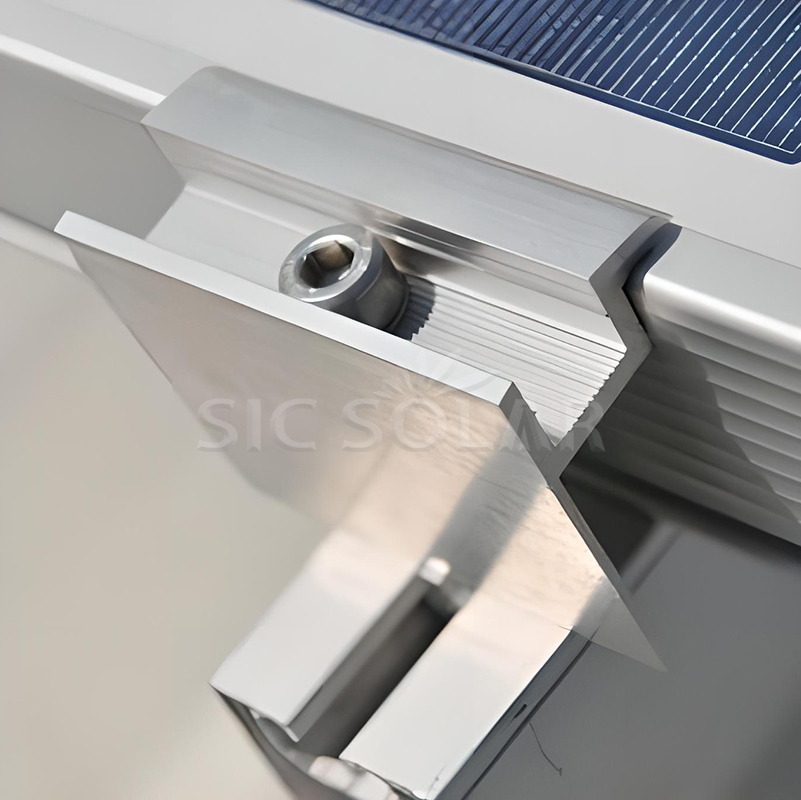

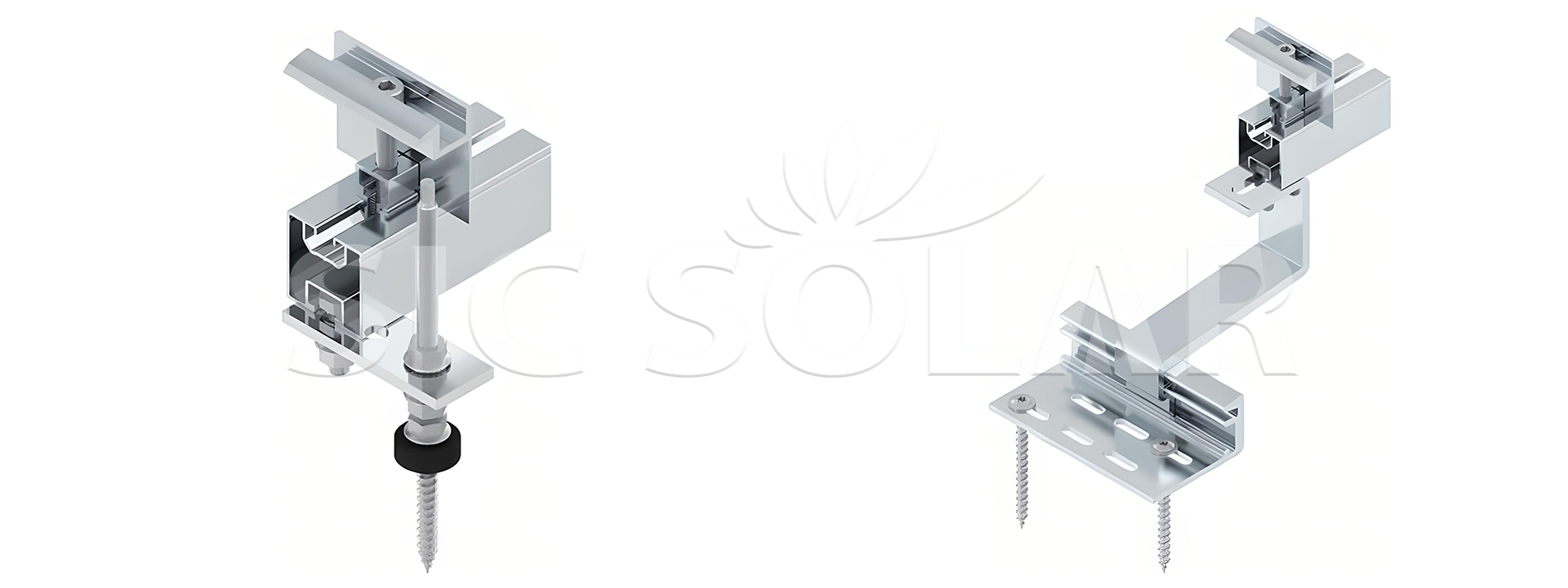

Installation Display

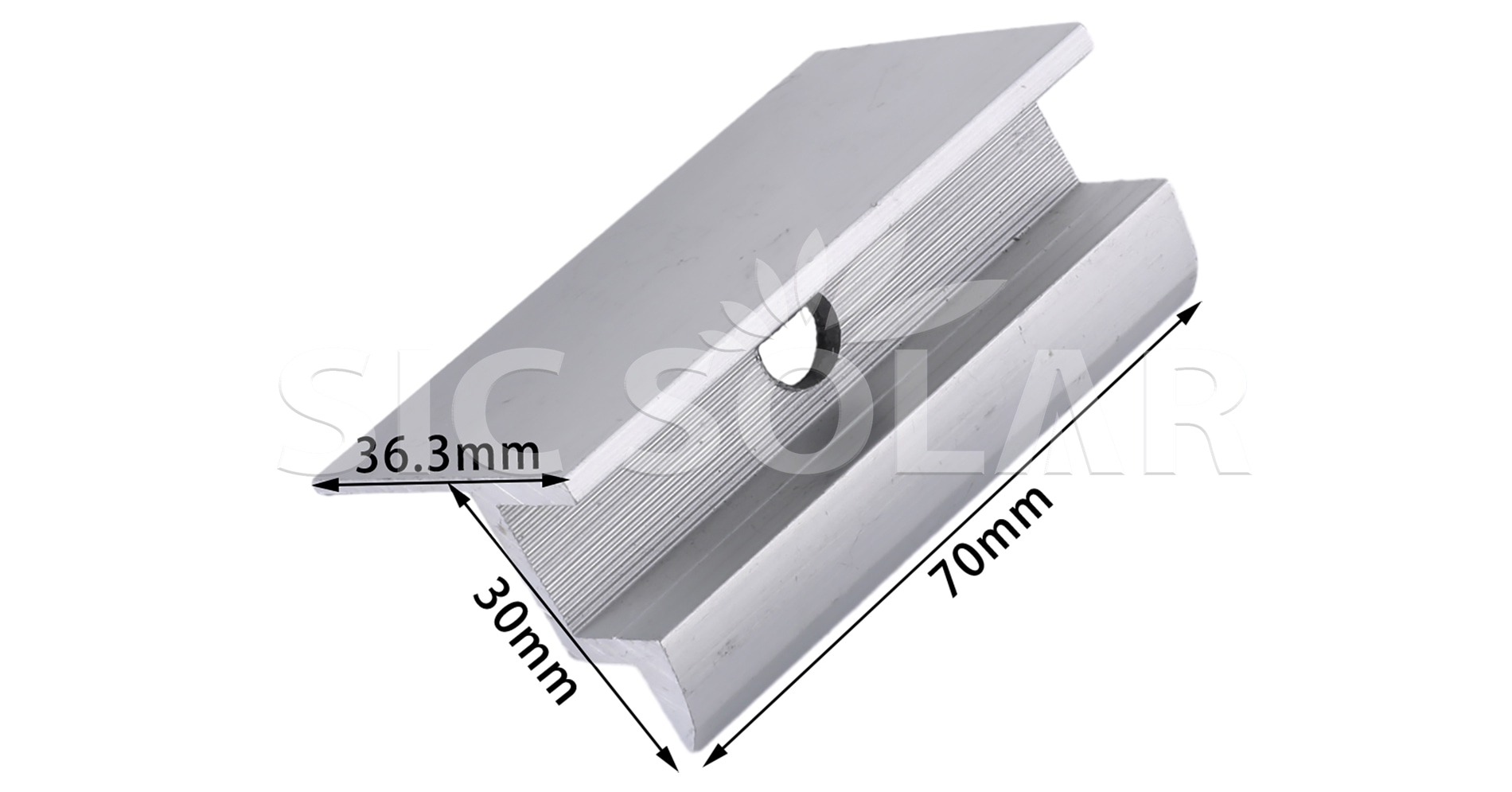

Details

Package

We use Easy Installation Aluminum Solar Panel End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
