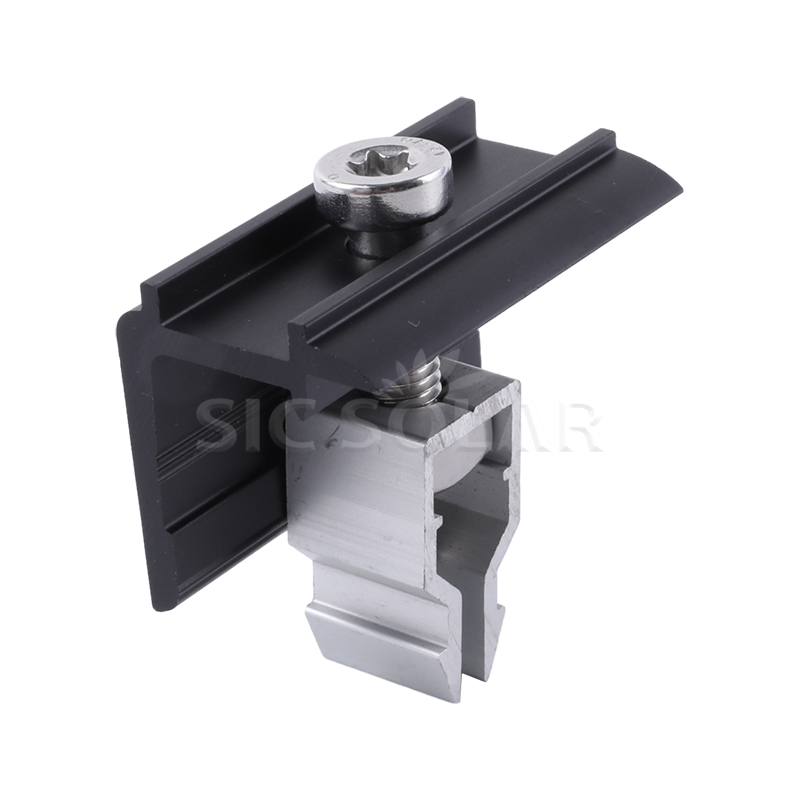

End Clamp Solar

End Clamp Solar is installed at the outer edge of a solar panel row to hold the module frame firmly against the mounting rail. Its controlled clamping pressure keeps the panel securely positioned during long-term system operation.

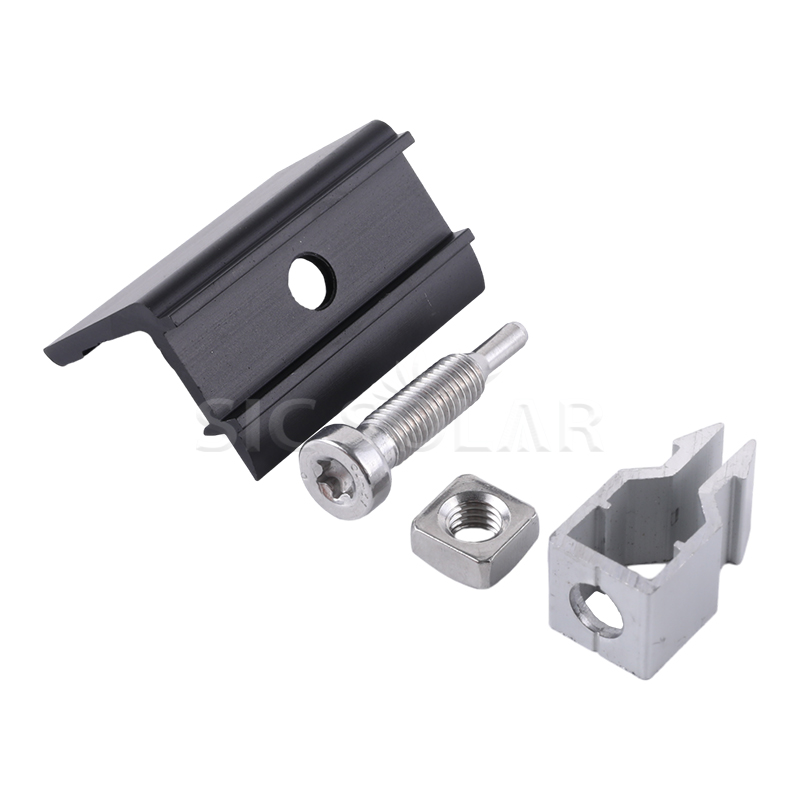

Components

Parameter (Specification)

Why Choose End Clamp Solar?

• Reliable Module Fixing: Keeps the outer edge of the solar panel firmly attached to the mounting rail.
• Quick Installation: Simple positioning and fastening help save time on site.
• Installer-Friendly: Easy to handle, adjust, and tighten during installation.
• Durable Construction: Built for long-term outdoor PV applications.
• Corrosion Resistant: Suitable for common outdoor conditions, including moisture and changing weather.
• Flexible Compatibility: Different specifications are available for various panel frames and mounting rails.
• Low Maintenance: A simple, robust design reduces the need for frequent inspection or replacement.

Installation Precautions

• Check that the end clamp matches the solar panel frame thickness.
• Confirm compatibility with the mounting rail profile.
• Position the clamp only within the module manufacturer's specified clamping zone.
• Check panel alignment before fully tightening the fastener.
• Avoid over-tightening, as excessive pressure may damage the panel frame.
• Never use cracked, damaged, or deformed clamps or fasteners.
• Make sure the mounting rails are securely installed before mounting the panels.
• Follow the solar module manufacturer's installation instructions and the project's structural requirements.

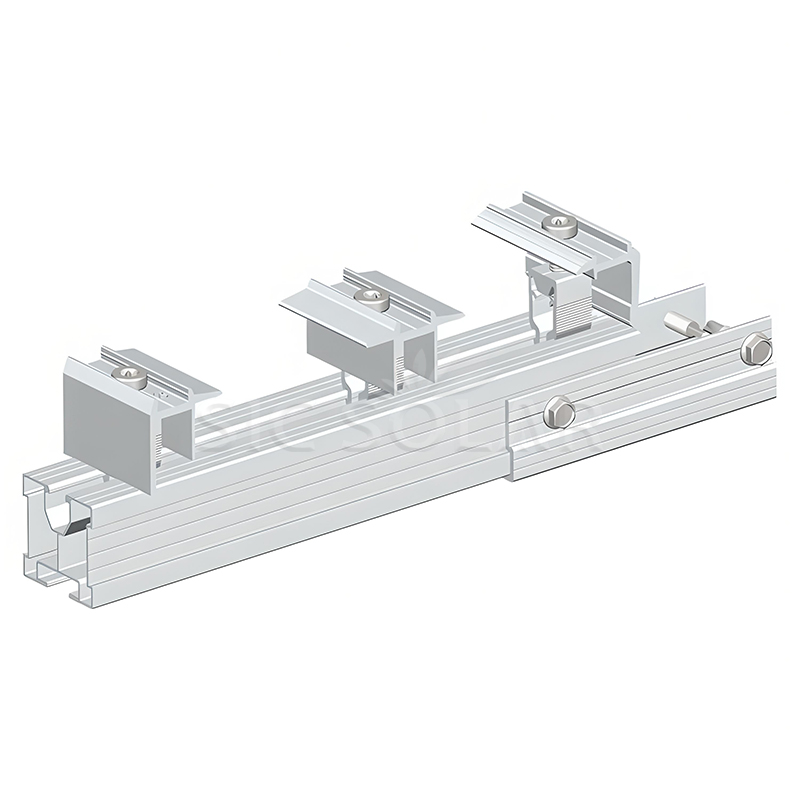

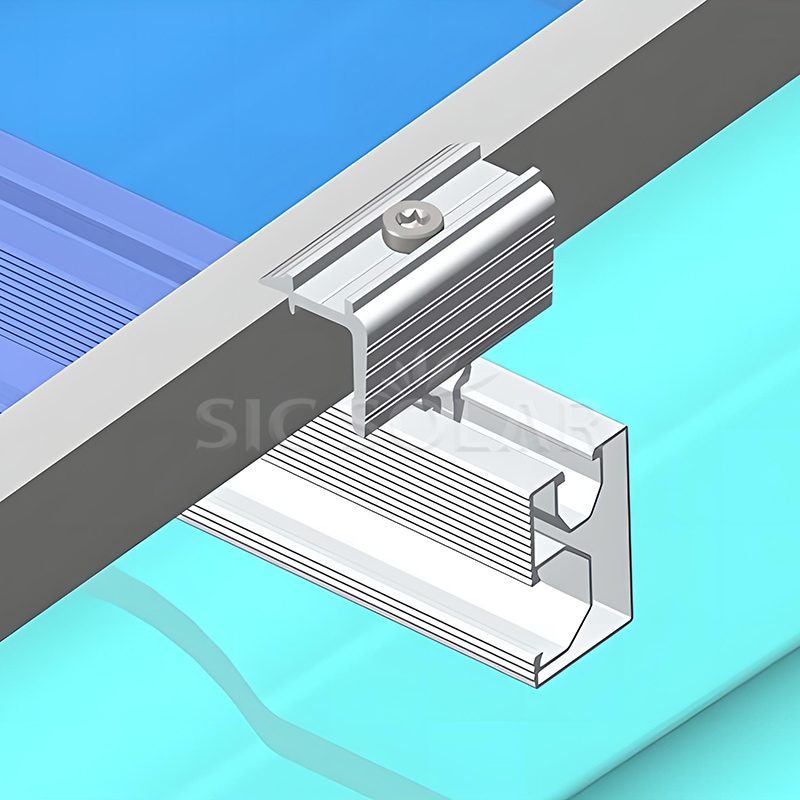

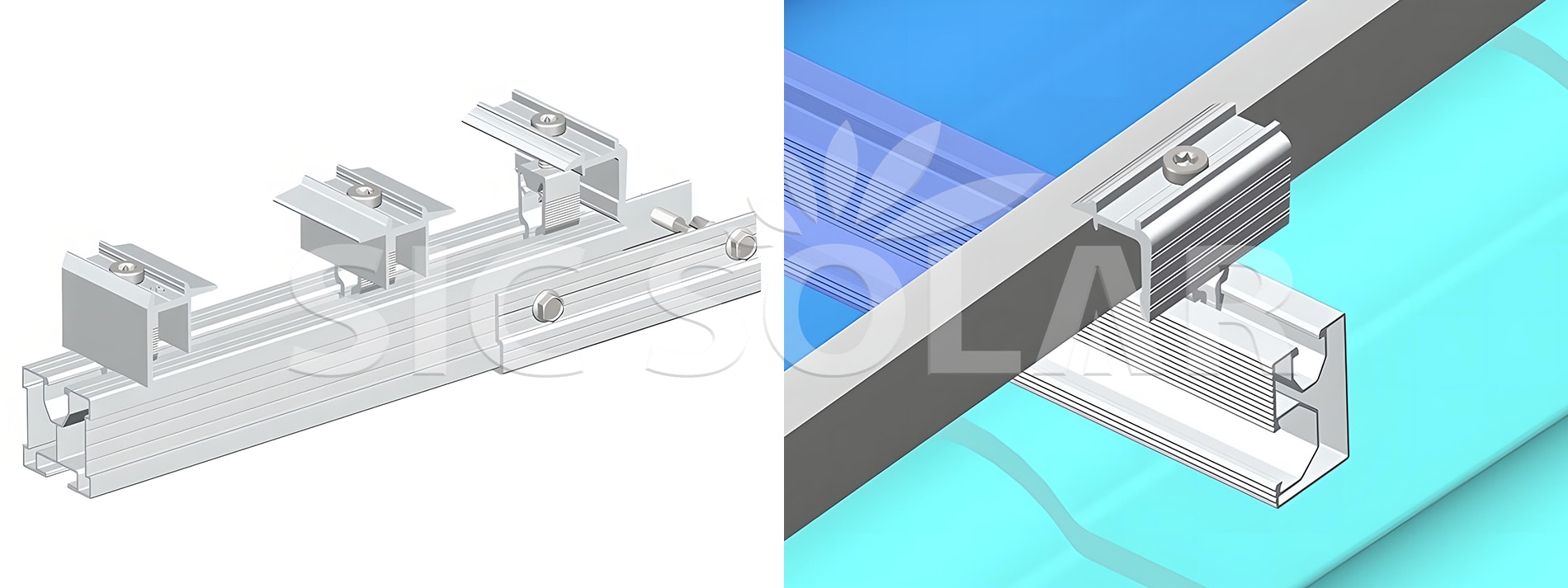

Installation Display

Package

We use End Clamp Solar standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
