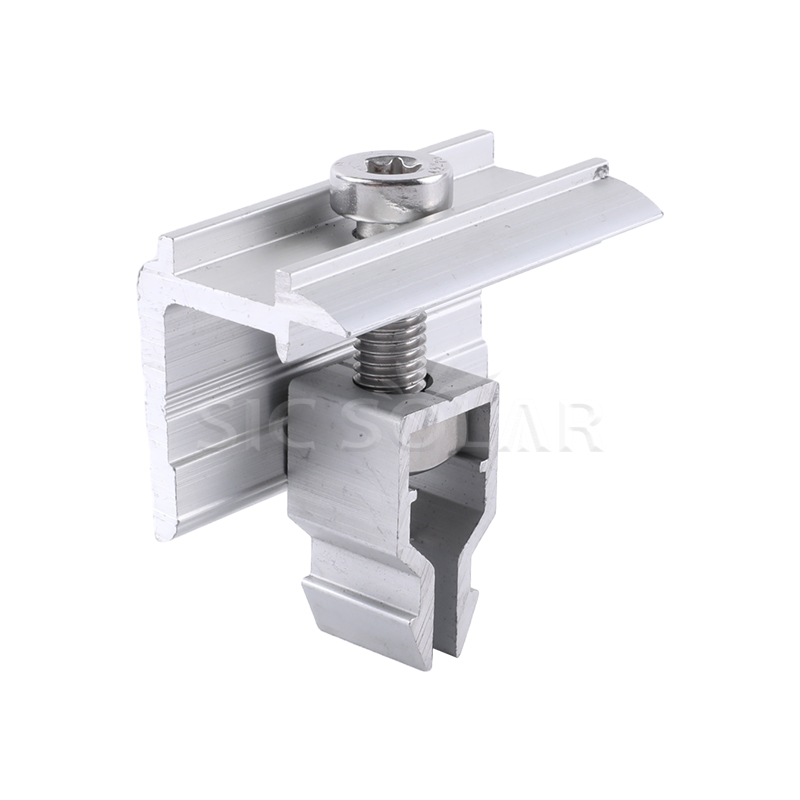

PV End Clamp

PV End Clamp is fitted at the outer edge of a solar panel row to hold the module frame against the mounting rail. It applies steady clamping pressure without requiring any changes to the panel frame, providing a simple and secure connection.

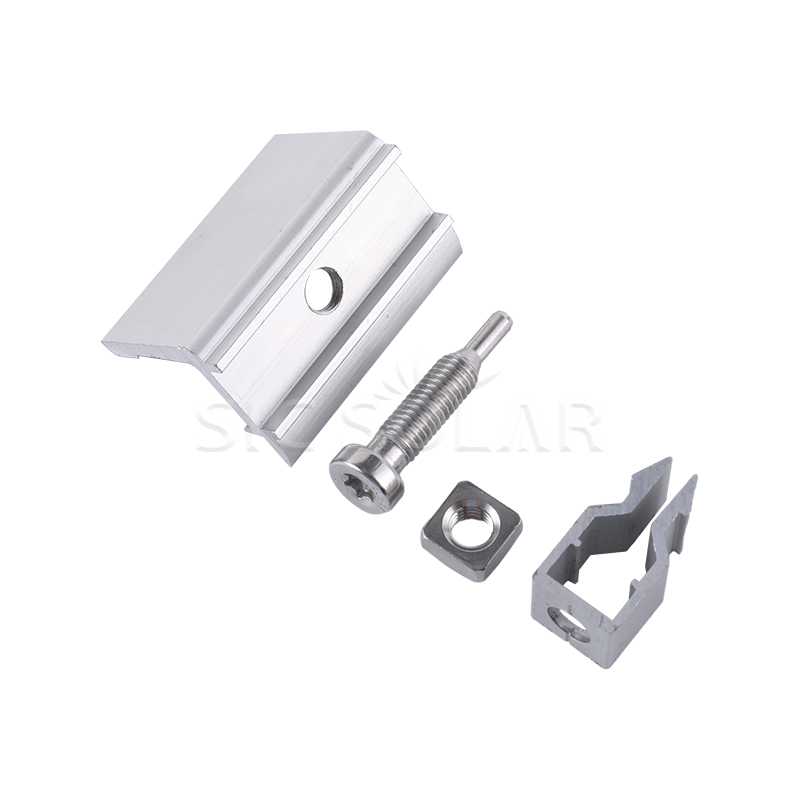

Components

Parameter (Specification)

Features & Advantages

• Secure Module Fixing: Holds the outer edge of the panel firmly and helps reduce movement from wind, vibration, and other outdoor loads.
• Durable Construction: High-strength aluminum alloy keeps the clamp strong without adding unnecessary weight, while stainless steel fasteners provide a reliable connection.
• Good Corrosion Resistance: Built for outdoor use and able to withstand moisture, rain, sunlight, and changing weather conditions.
• Easy Installation: The simple design makes positioning and tightening quick and convenient, helping save time on site.
• Flexible Positioning: The clamp can be adjusted along the compatible rail before final tightening, making panel alignment easier.
• Wide Compatibility: Different sizes are available for various panel frame thicknesses and mounting rail profiles.
• Clean Appearance: Its compact design gives the connection between the panel and rail a neat, finished look.

Installation Steps

• Install the Mounting Rails：Install and align the rails according to the system design. Make sure they’re firmly attached to the supporting structure.
• Position the Solar Module：Place the panel on the rails based on the planned array layout.
• Position the PV End Clamp：Place the end clamp against the outer edge of the panel frame.
• Insert the Fastener：Slide or insert the fastener into the compatible rail channel.
• Adjust the Position：Adjust the panel and clamp until the alignment and spacing are correct.
• Check the Clamping Area：Make sure the clamp sits within the clamping zone specified by the solar module manufacturer.
• Tighten the Fastener：Tighten the fastener to the manufacturer's recommended torque.
• Final Inspection：Check that the clamp is firmly secured and the panel is properly aligned.

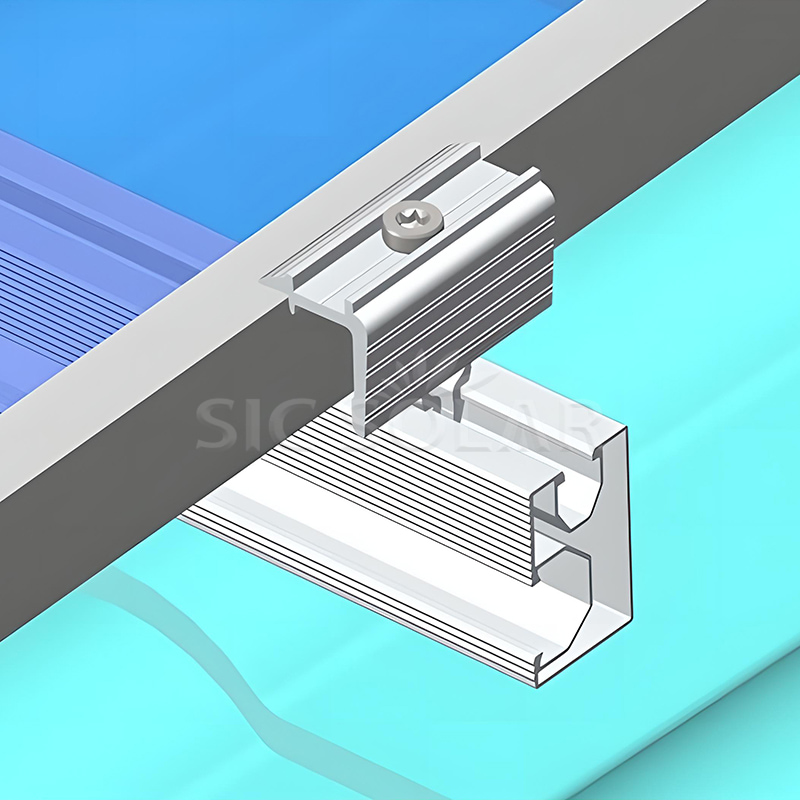

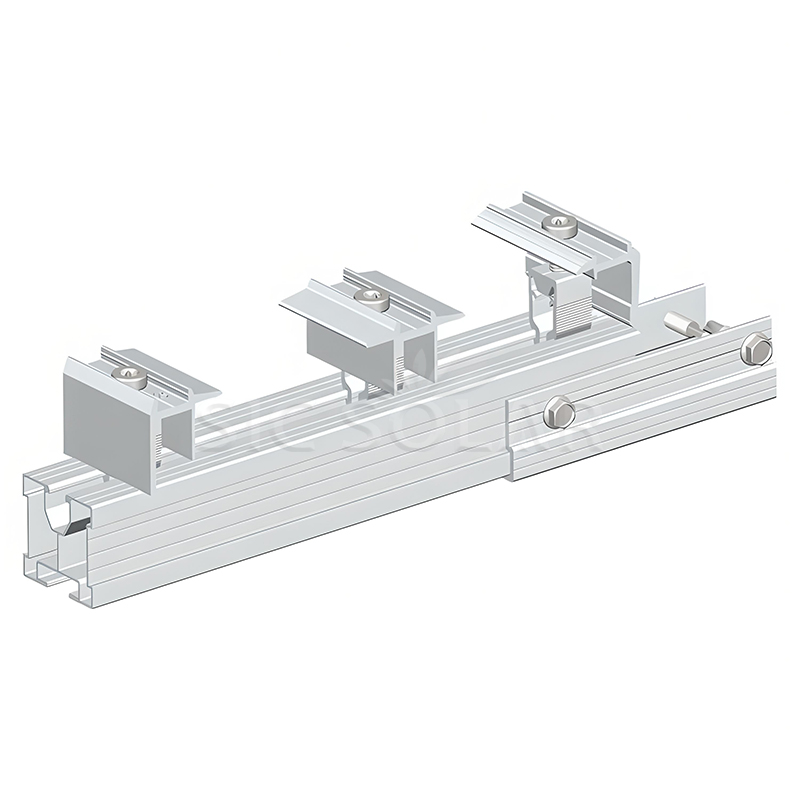

Installation Display

Package

We use PV End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
