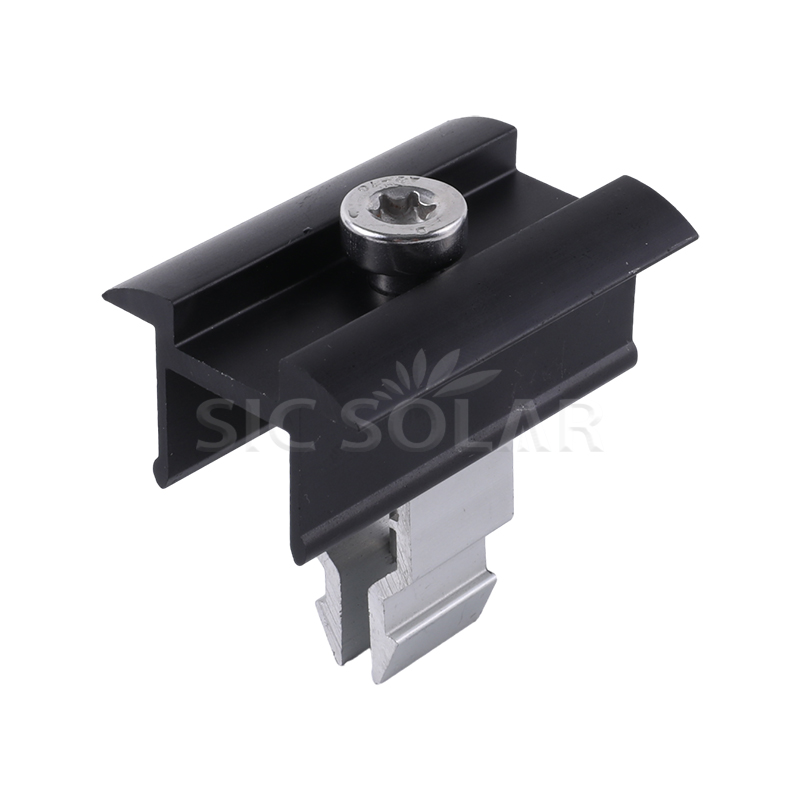

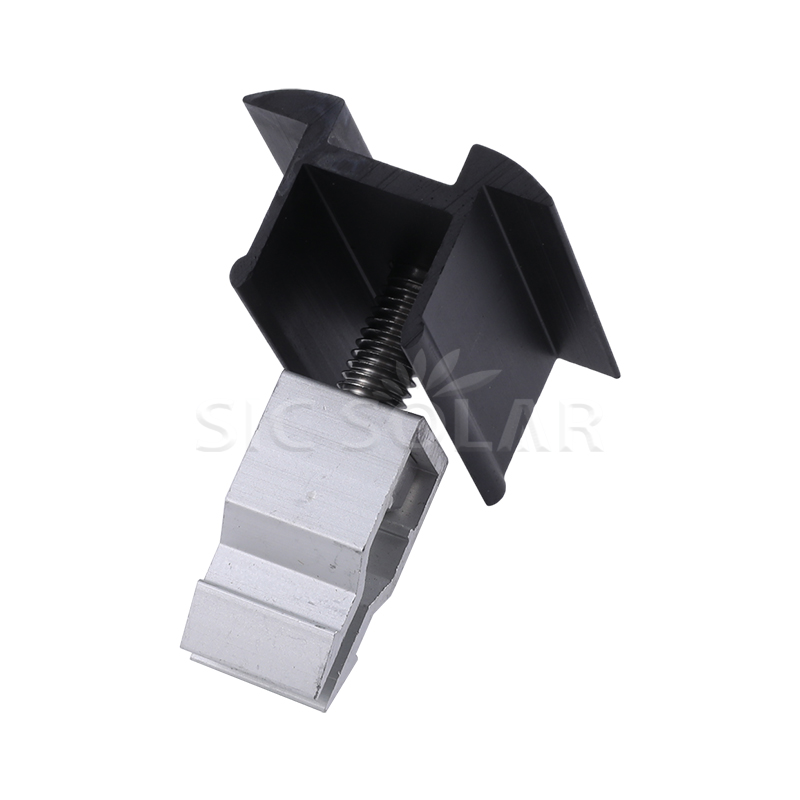

Solar Panel Mid Clamp Fast Installation

Solar Panel Mid Clamp Fast Installation is an essential component in solar panel mounting systems, used to connect and secure two neighboring photovoltaic modules. Positioned between solar panel frames and attached to mounting rails, it offers stable support while maintaining the necessary spacing between modules. Designed for fast and efficient installation, this mid clamp aids installers in completing PV projects with fewer steps and enhanced productivity.

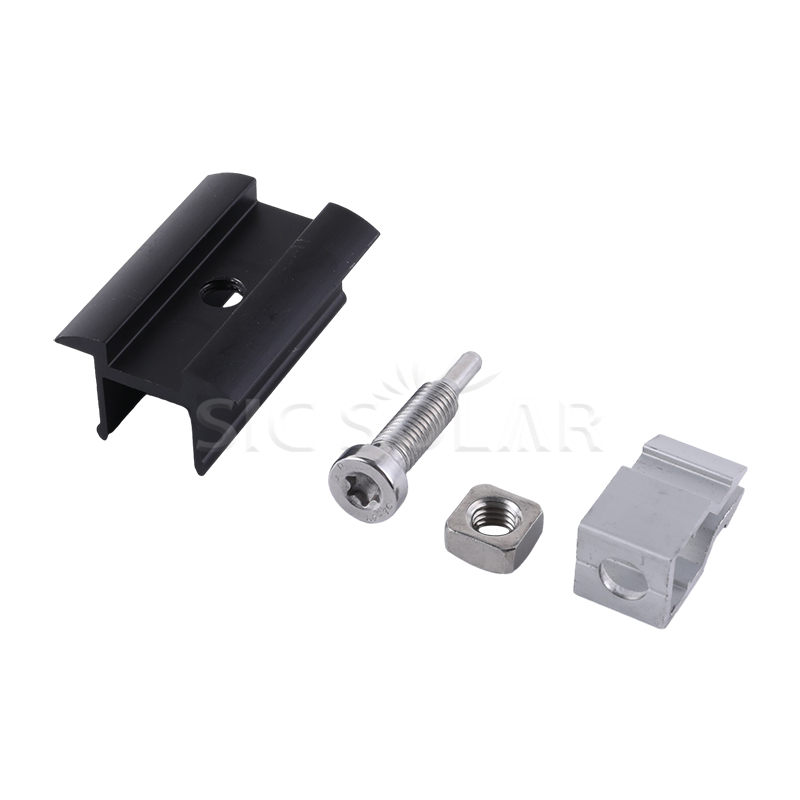

Components

Parameter (Specification)

Features & Advantages

• Fast Installation Design: The optimized structure simplifies the installation process, allowing for quick and efficient securing of solar modules.
• Reduced Labor Requirements: Fewer installation steps result in reduced labor time and improved overall project productivity.
• High-Strength Aluminum Alloy: Crafted from AL6005-T5 anodized aluminum alloy, it offers superior strength, lightweight performance, and long-term durability.
• Reliable Panel Fixing: Ensures stable and uniform clamping pressure between adjacent solar panels to enhance array stability.
• Excellent Corrosion Resistance: Anodized aluminum and stainless steel components provide strong resistance to moisture, oxidation, UV exposure, and harsh outdoor conditions.
• Accurate Module Spacing: Maintains consistent gaps between solar panels to support thermal expansion and ensure a neat PV array layout.
• Wide Compatibility: Suitable for most framed solar modules and compatible with various aluminum solar mounting rails.

Installation Precautions

• Choose the correct mid clamp height according to the solar panel frame thickness.
• Ensure compatibility between the clamp and the mounting rail system.
• Confirm that both panel frames are correctly positioned before tightening.
• Maintain consistent spacing between adjacent solar modules.
• Tighten fasteners according to the recommended torque value.
• Avoid excessive tightening to prevent damage to the solar panel frame.
• Check the alignment of each module row before completing installation.

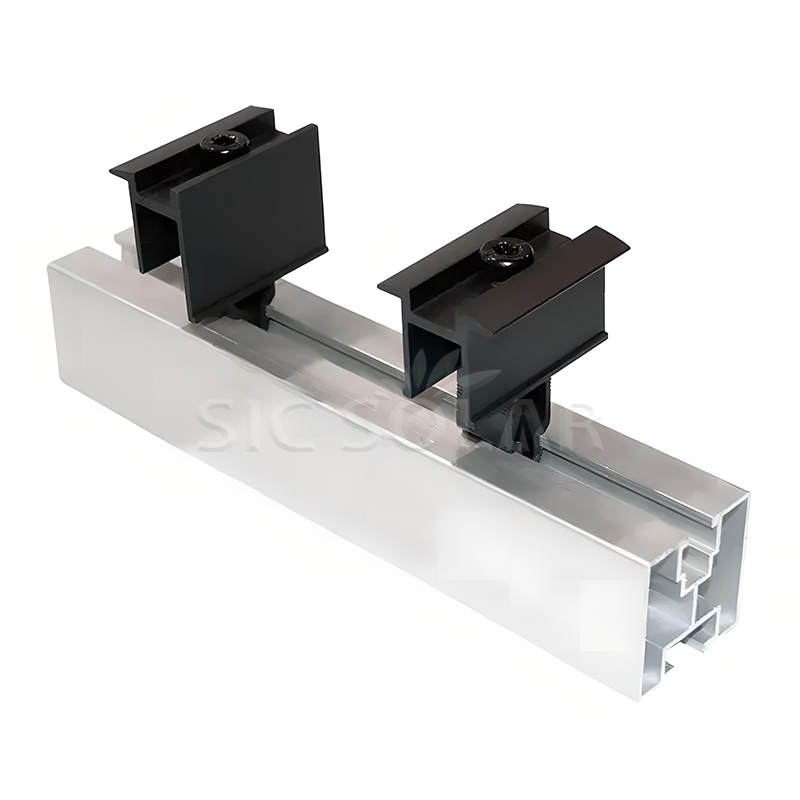

Installation Display

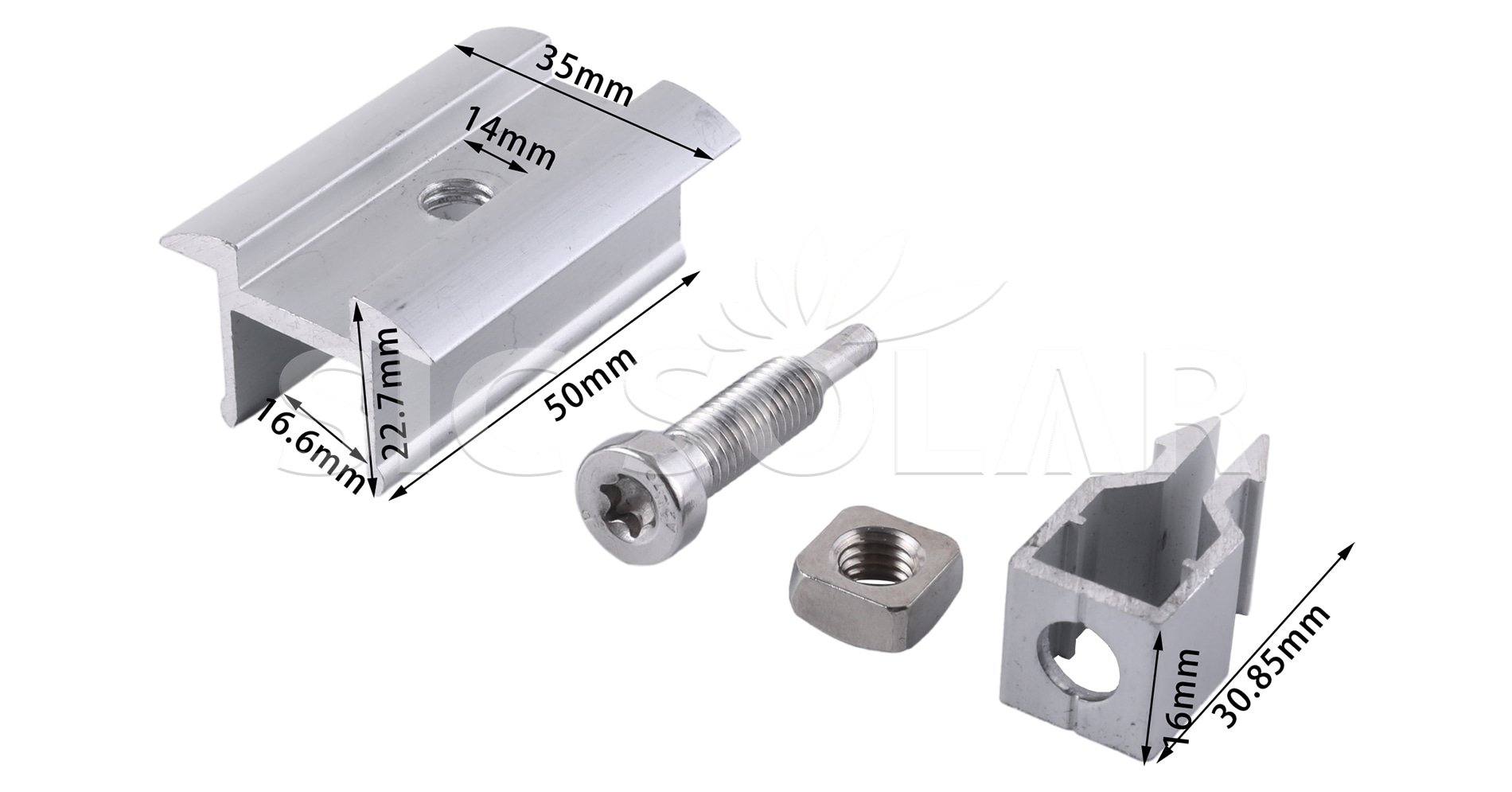

Details

Package

We use Solar Panel Mid Clamp Fast Installation standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
