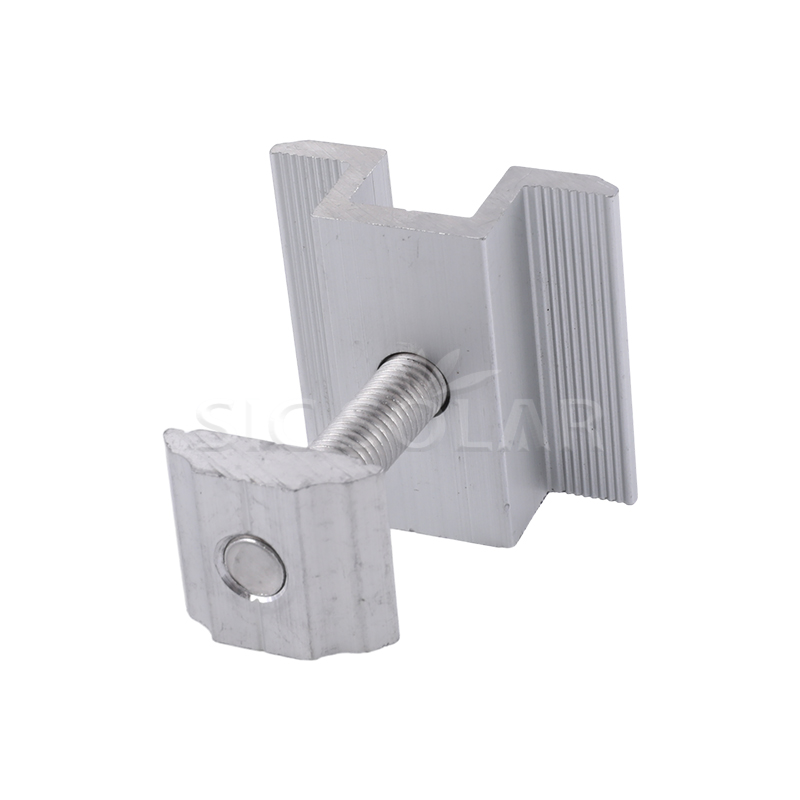

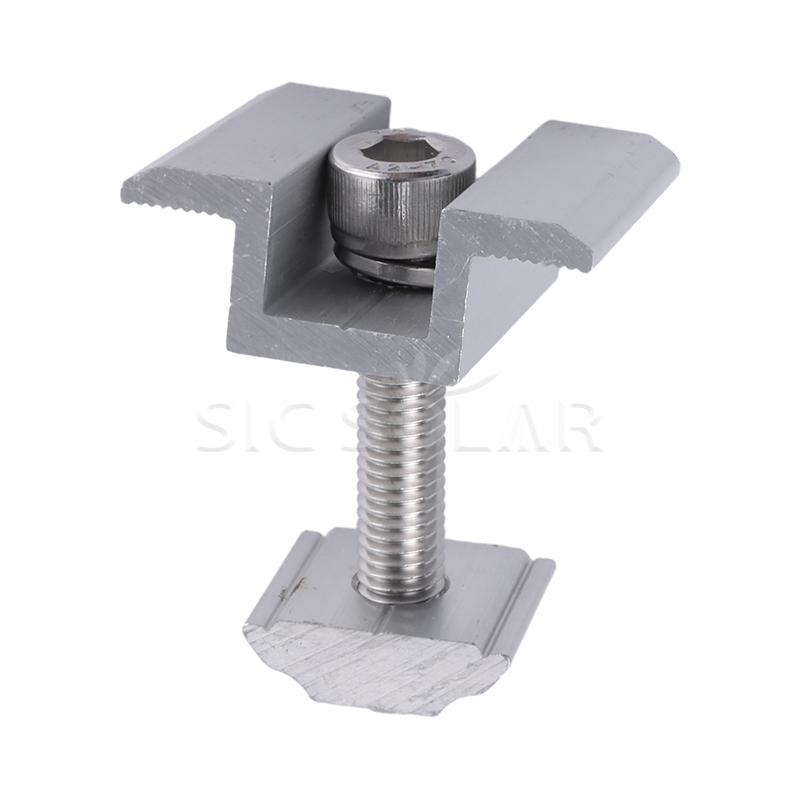

Solar Panel Mount Mid Clamp

Crafted to fit a variety of solar panel frame thicknesses, this clamp is like the unsung hero of your solar setup. It keeps everything in line—no more worrying about panels shifting due to gusty winds or the relentless dance of thermal expansion. Imagine the ease of installation, where every piece clicks into place, promising reliability that lasts long after the sun sets.

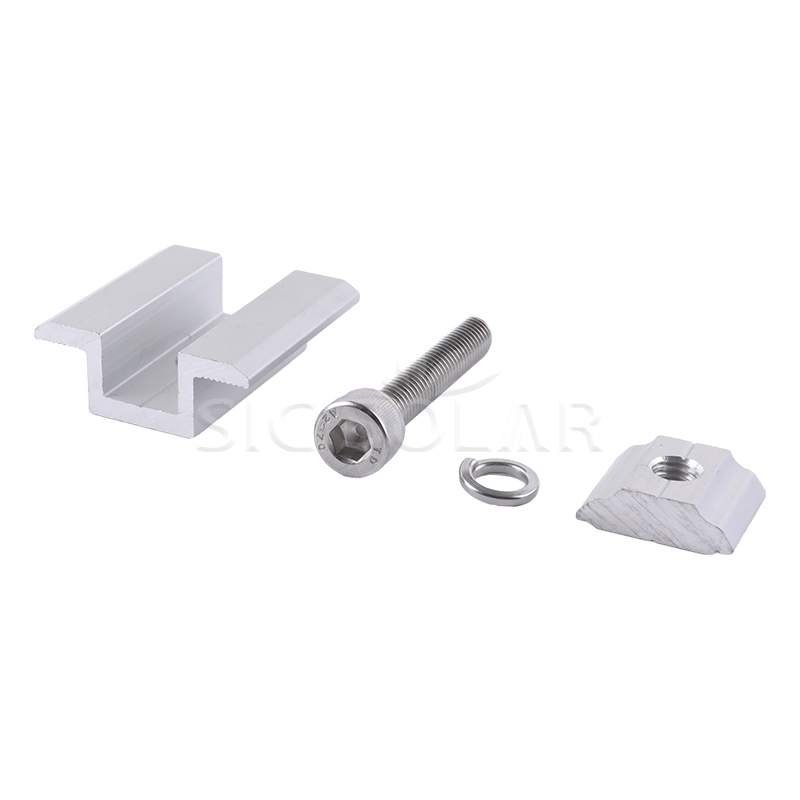

Components

Parameter (Specification)

Features & Advantages:

• High-Strength Aluminum Alloy: Think of it as the lightweight warrior of the mounting world—AL6005-T5 anodized aluminum that packs a punch in strength without weighing you down.
• Strong Module Fixing Performance: It’s like a gentle but firm hug between panels, ensuring they stay put and reducing any unwanted wobbles—stability is the name of the game here.
• Excellent Corrosion Resistance: Picture this: a shield against rust, moisture, and the sun's fierce rays—this anodized surface is ready to take on the elements without breaking a sweat.
• Multiple Size Options: Whether you’re working with 30 mm, 35 mm, or 40 mm frames, we’ve got you covered—like a tailor-made suit for your solar panels.
• Quick Installation Design: With a structure that’s as simple as pie and pre-assembled parts, you’ll be zipping through installations in no time, saving both time and money—who doesn’t love that?
• Professional Panel Alignment: Consistent spacing isn’t just about looks; it’s about creating a well-ordered solar array that sings in harmony.
• Wide Application Range: From rooftops to sprawling ground-mounted projects, even solar carports and commercial installations—this clamp is ready for anything.

Installation Process:

• Install the First Solar Panel: Start by placing your first solar module on the mounting rail, securing it with end clamps—like laying the foundation of a sturdy house.
• Position the Mid Clamp: Slide the Solar Panel Mount Mid Clamp in between the installed panel and the next one—this is where the magic begins.
• Install the Adjacent Solar Panel: Gently slide the second panel into the mid clamp, ensuring both frames are snugly positioned—like a perfect puzzle piece.
• Tighten the Bolt: Secure everything by tightening the bolt to the recommended torque—feel that satisfying click as it locks into place.
• Continue Module Installation: Rinse and repeat until every panel in the row is firmly in place—like a well-orchestrated dance.
• Final Inspection: Take a moment to check all mid clamps, bolts, and panel spacing—make sure everything is secure, because a solid foundation is key to a successful solar array.

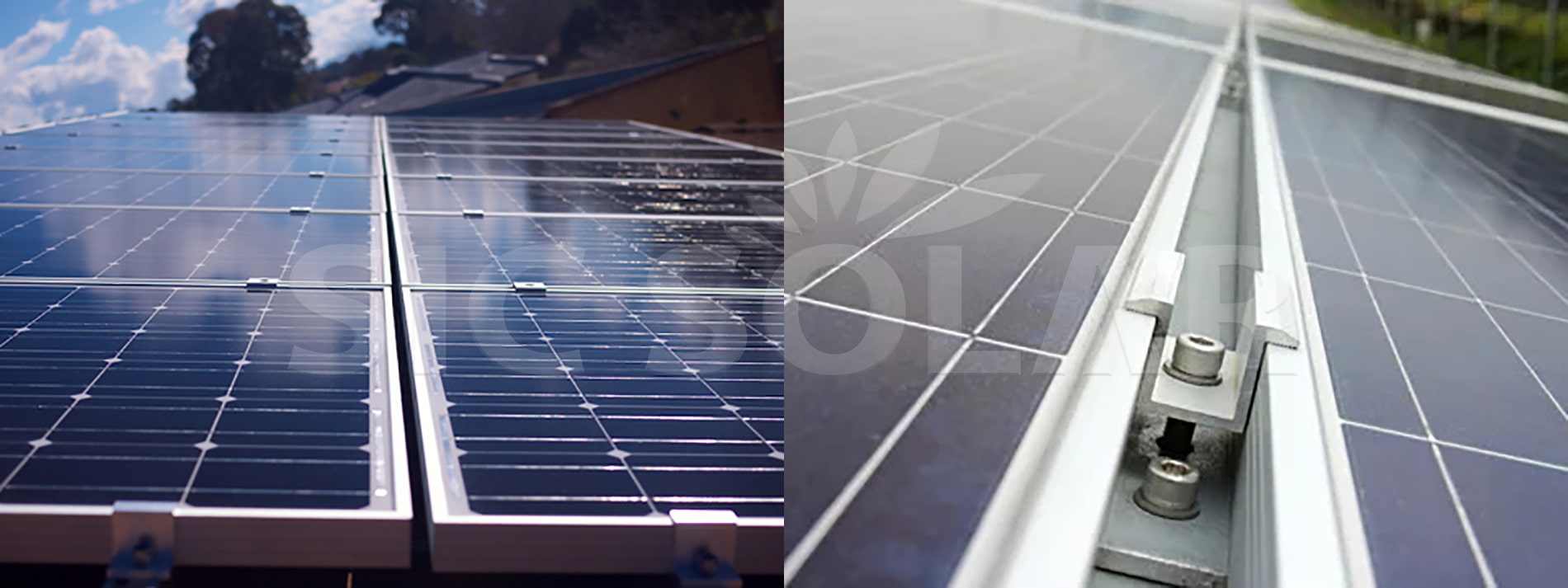

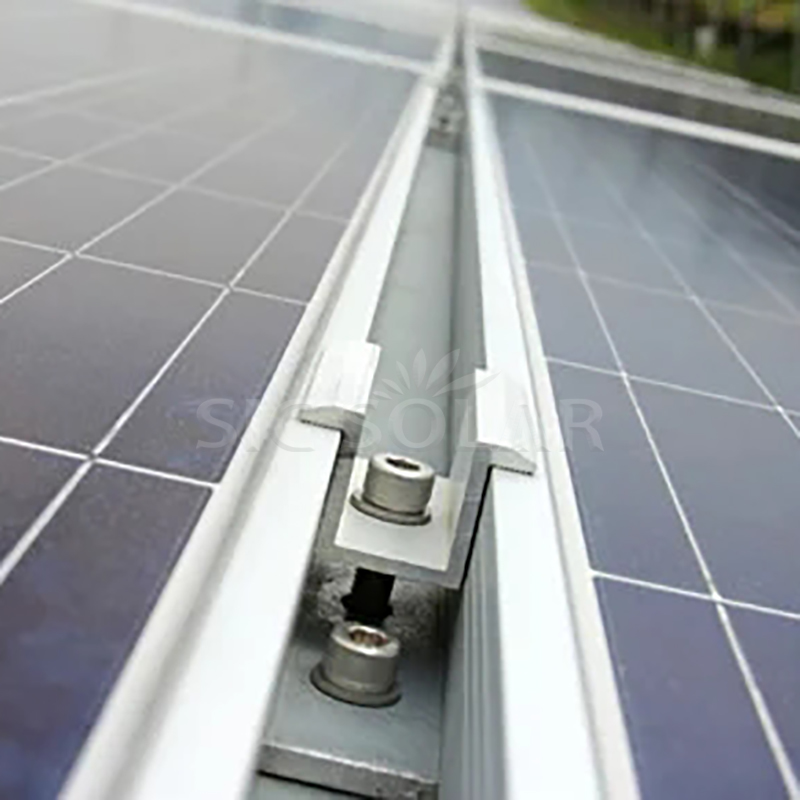

Installation Display

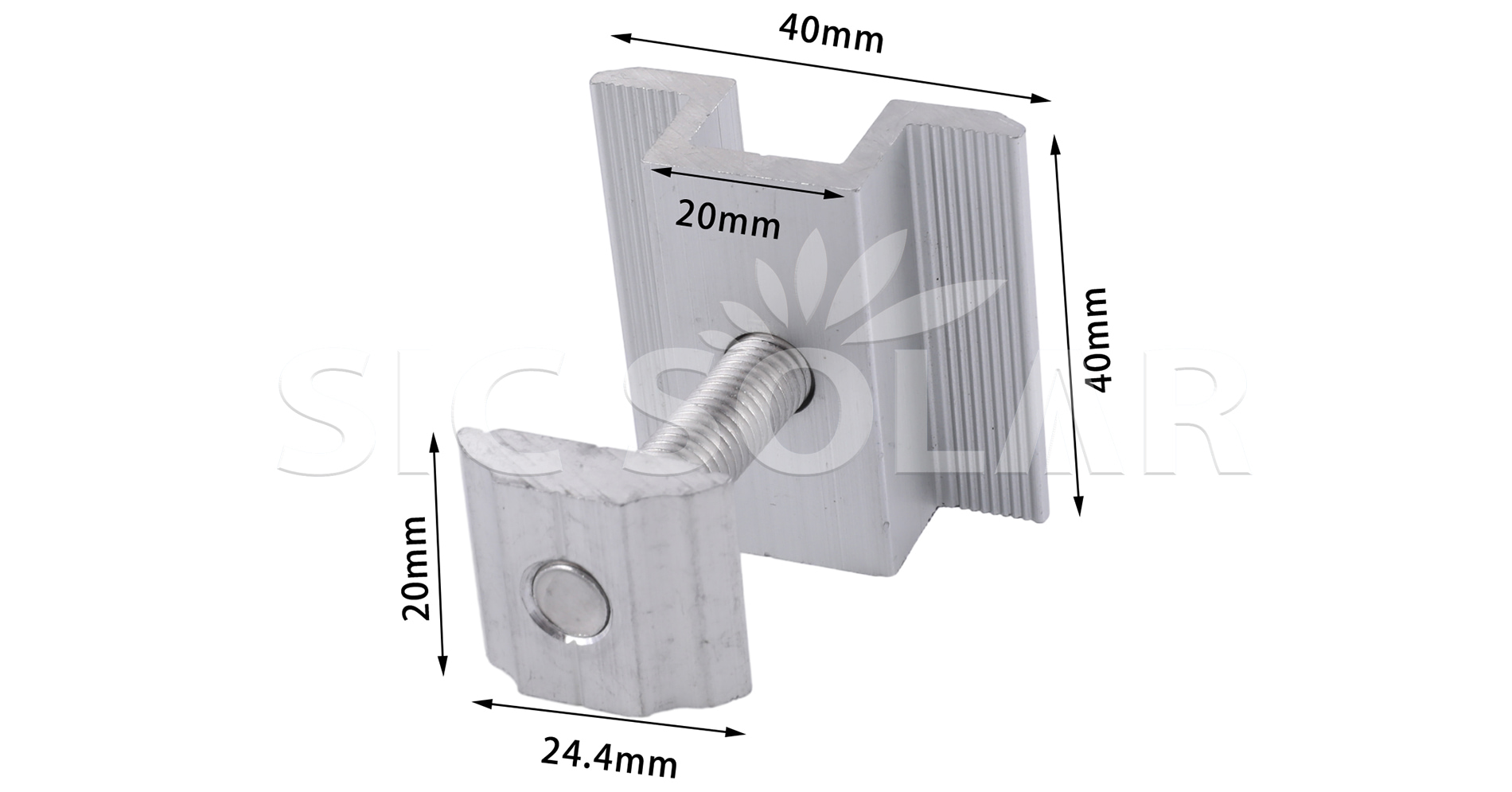

Details

Package

We useSolar Panel Mount Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
