Ground Mount Solar Rail Mid Clamp

Think of the Ground Mount Solar Rail Mid Clamp as the unsung hero of ground-mounted solar racking systems. It’s the connector that binds solar modules to the mounting rails, all while keeping that essential gap intact. A well-crafted mid clamp is like a steadfast guardian, ensuring that the modules stay aligned and securely anchored, no matter what Mother Nature throws their way—be it gusty winds, heavy snow, or the relentless vibrations of daily life.

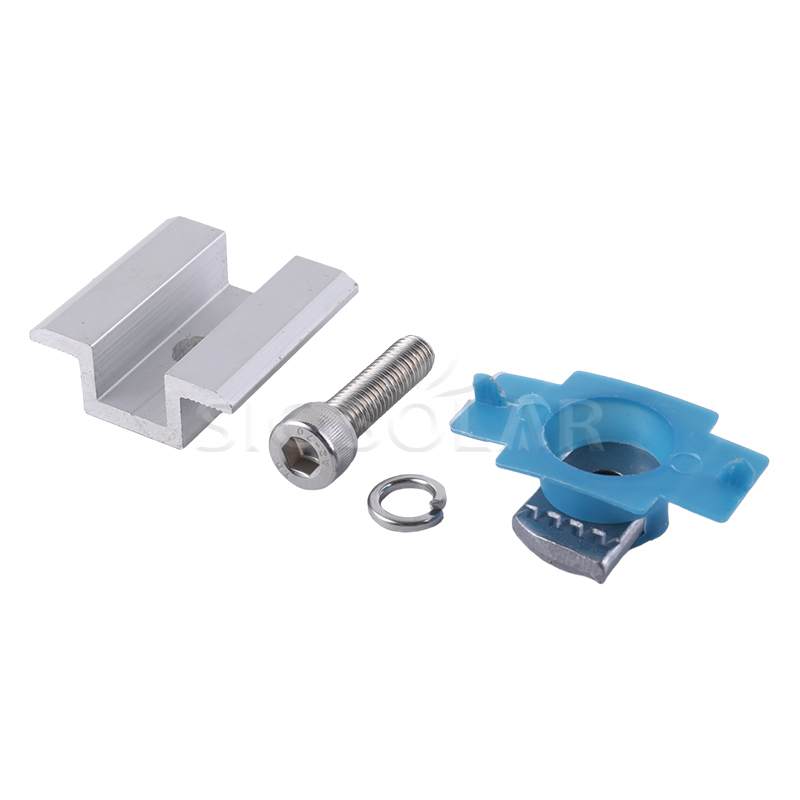

Components

Parameter (Specification)

Why Choose Ground Mount Solar Rail Mid Clamp?

• Tailored for Ground-Mounted PV Projects: This clamp is your go-to for solar structures that demand unwavering module security and long-lasting outdoor performance.
• Boosts Installation Efficiency: With its straightforward design, this clamp speeds up the installation process—less fuss, more solar power.
• Reliable Against Outdoor Forces: Crafted from robust materials, it stands strong against wind, vibrations, temperature swings, and other environmental challenges.
• Built to Last: Made from anodized aluminum and corrosion-resistant fasteners, it’s ready for the long haul in outdoor solar applications.
• Versatile Compatibility: Available in various sizes, it fits different module frame thicknesses and ground-mount rail profiles like a glove.
• Minimal Maintenance Needs: Its durable construction means fewer worries about early replacements, making long-term upkeep a breeze.

Installation Process:

• Lay Down the Ground Mounting Rails: Secure those solar rails to the ground support structure, following your project’s blueprint. Make sure they’re lined up just right.
• Position the First Solar Panel: Set the first solar module onto the rails, fastening its outer edge with compatible end clamps—like a snug hug.
• Slide in the Mid Clamp: Position the Ground Mount Solar Rail Mid Clamp next to the installed panel—like a trusty sidekick.
• Install the Next Panel: Place the adjacent solar module so that both panel frames fit neatly within the mid clamp’s embrace.
• Adjust Panel Spacing: Ensure that the gap between the two modules is just right—aligned and ready to soak up the sun.
• Tighten the Clamp: Secure the fastener to the manufacturer’s specified torque—firm, but not too tight, like a gentle squeeze.
• Keep Going: Repeat this process down the row until your solar array is fully configured.
• Final Check: Before flipping the switch on your photovoltaic system, inspect all mid clamps, bolts, rails, and panel alignments—because every detail counts.

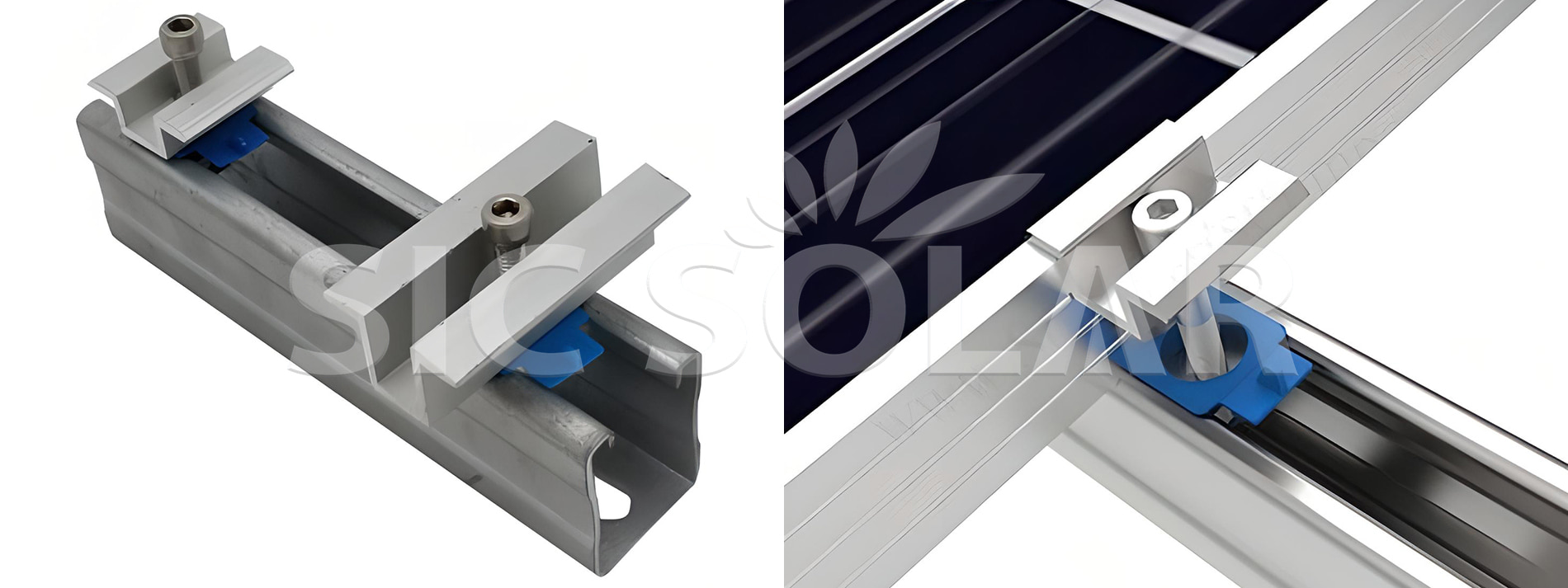

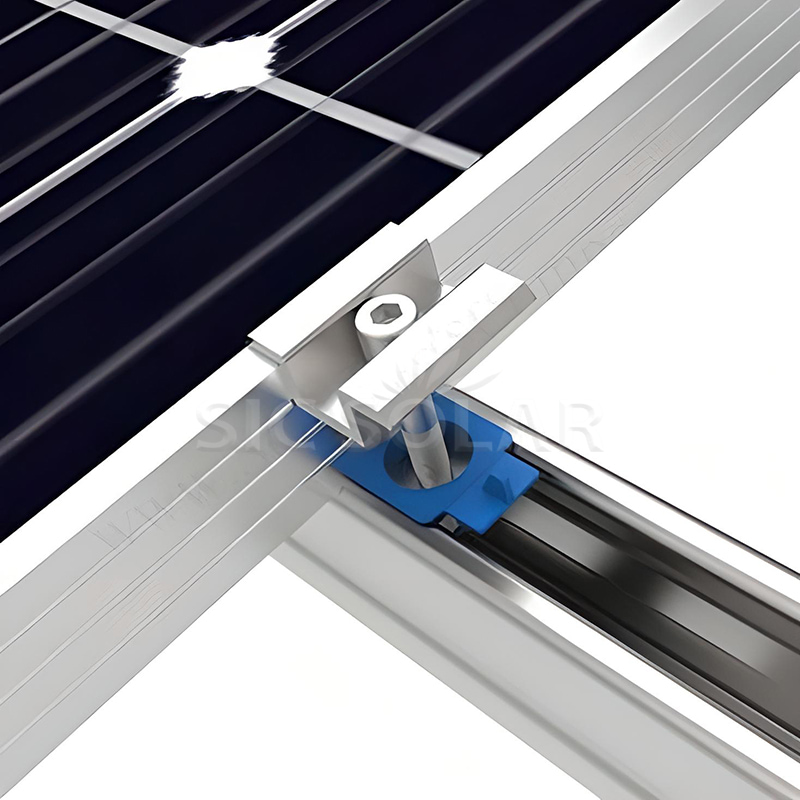

Installation Display

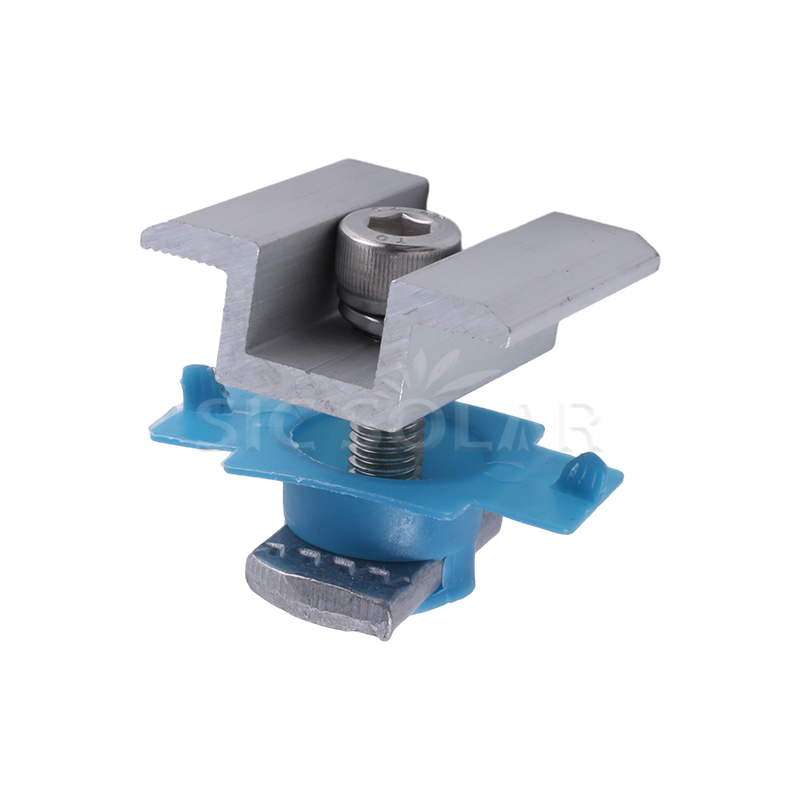

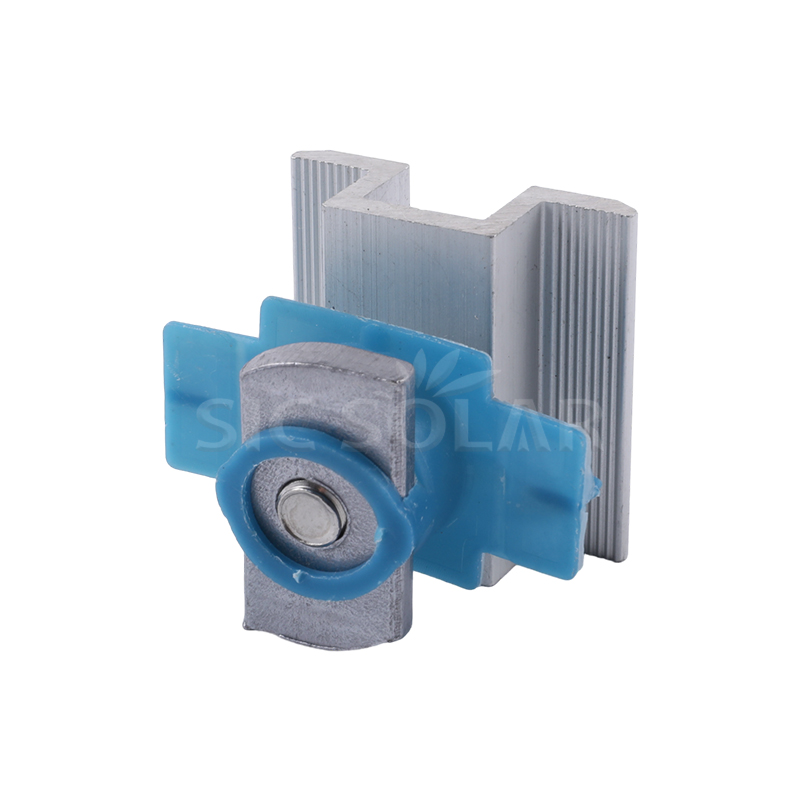

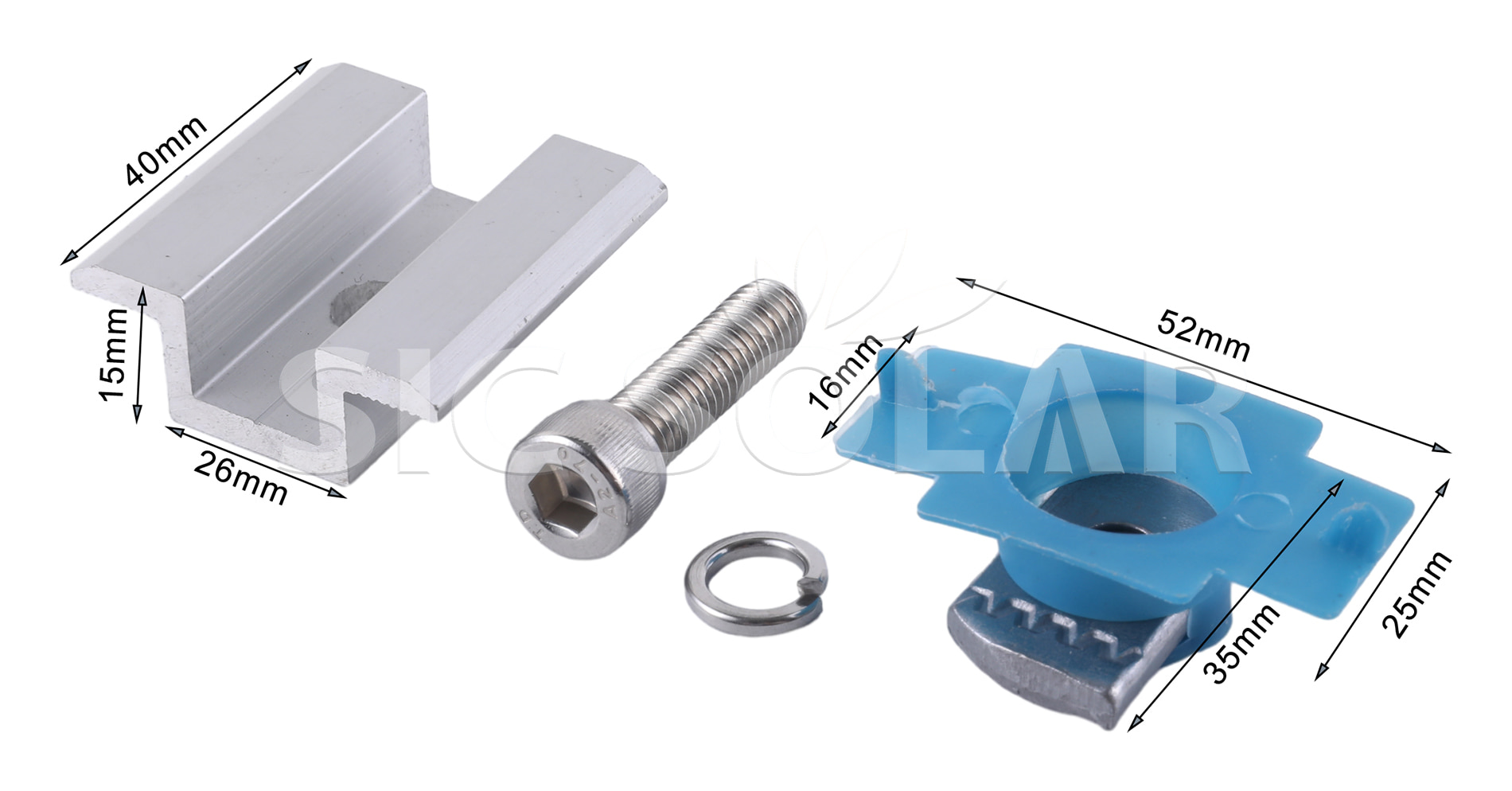

Details

Package

We use Mid Clamp for Solar Panels standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
