Mid Clamp for Solar Panels

Picture this: a clamp made from top-tier AL6005-T5 anodized aluminum alloy, coupled with SUS304 stainless steel bolts and nuts. It’s not just lightweight—it’s like featherweight champion material—yet it packs a punch in mechanical strength. And guess what? It comes in various heights to fit different solar panel frame thicknesses—30 mm, 35 mm, 40 mm, and 45 mm—custom sizes? Oh, you bet, just ask!

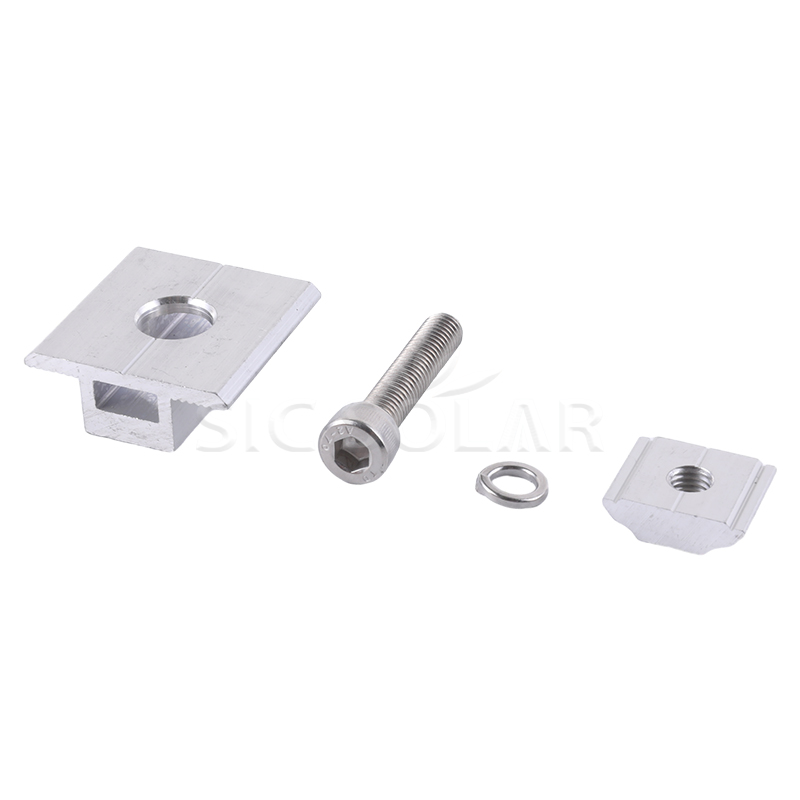

Components

Parameter (Specification)

Installation Process:

• First Solar Module: Start by placing your first solar panel onto those mounting rails, securing it temporarily with end clamps—like a warm hug.
• Position the Mid Clamp: Now, slide that mid clamp along the edge of your installed module, where the next panel will soon join the party.
• Install the Adjacent Module: Gently slide the second solar panel into position, making sure both frames snuggle up inside the mid clamp.
• Tighten the Fastener: Insert the bolt and tighten it up—feel that satisfying grip as you follow the recommended torque specs until both modules are locked in place.
• Continue the Installation: Rinse and repeat for each additional module, building your solar array like stacking blocks.
• Final Inspection: Take a moment to check that all mid clamps are aligned, tightened evenly, and keeping that spacing consistent—like a well-choreographed dance.

Why Choose Mid Clamp for Solar Panels?

• Reliable Structural Stability: This clamp offers steadfast support, helping your solar array stand tall against wind loads, vibrations, and the whims of thermal expansion.
• Easy Installation: Thanks to its pre-assembled design, installation feels like a breeze—less hassle, lower labor costs.
• Lightweight and Durable: With aluminum alloy construction, it’s like carrying a feather while still delivering solid performance.
• Superior Corrosion Resistance: Anodized aluminum and stainless steel hardware mean it’s built to last, even in the harshest outdoor conditions.
• Flexible Compatibility: Available in a variety of sizes, it fits different module frame thicknesses and mounting rail profiles—like a glove.
• Low Maintenance: These durable materials? They’re practically maintenance-free throughout the lifespan of your photovoltaic system—what a relief!

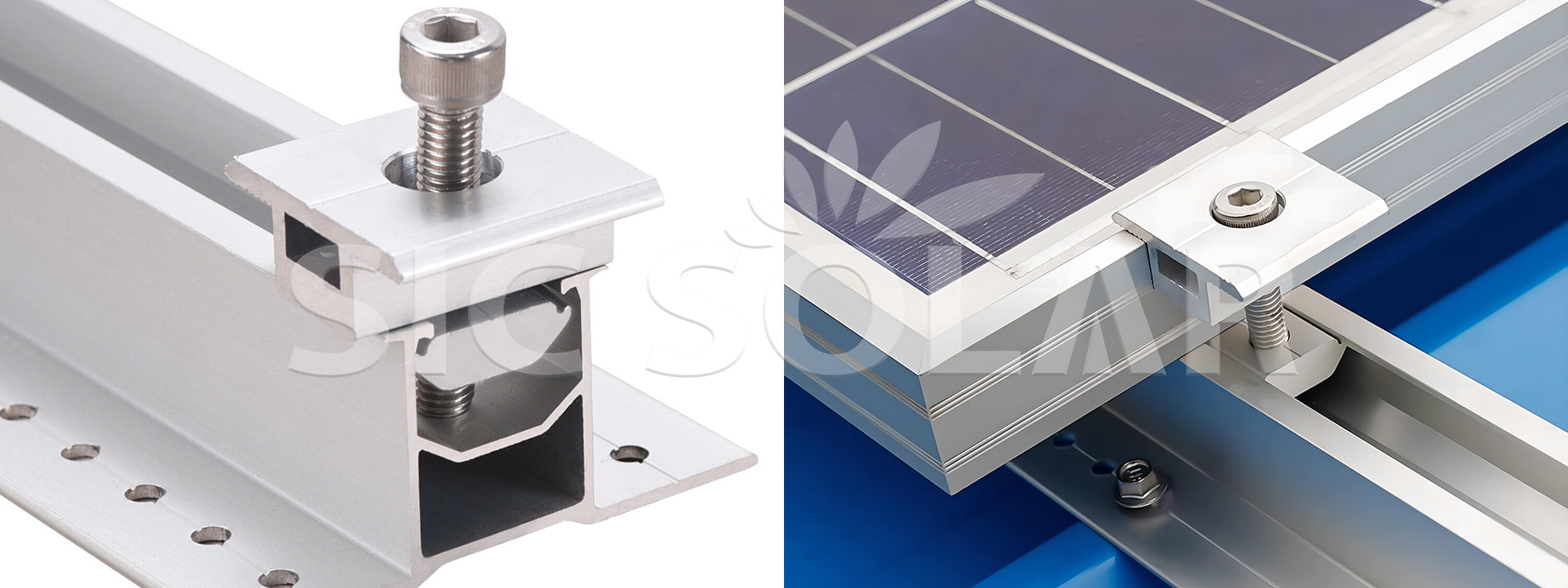

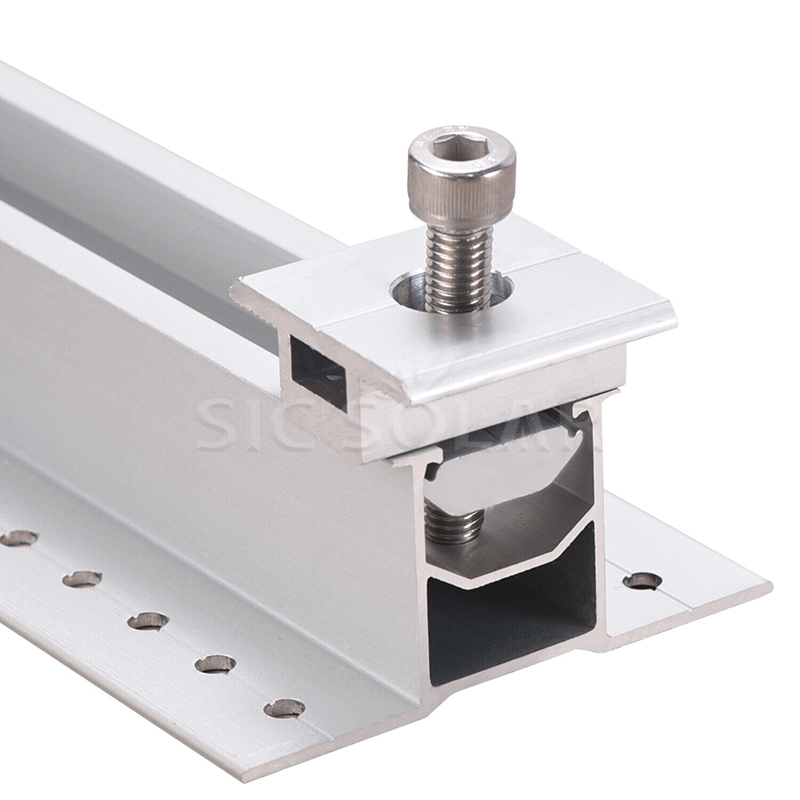

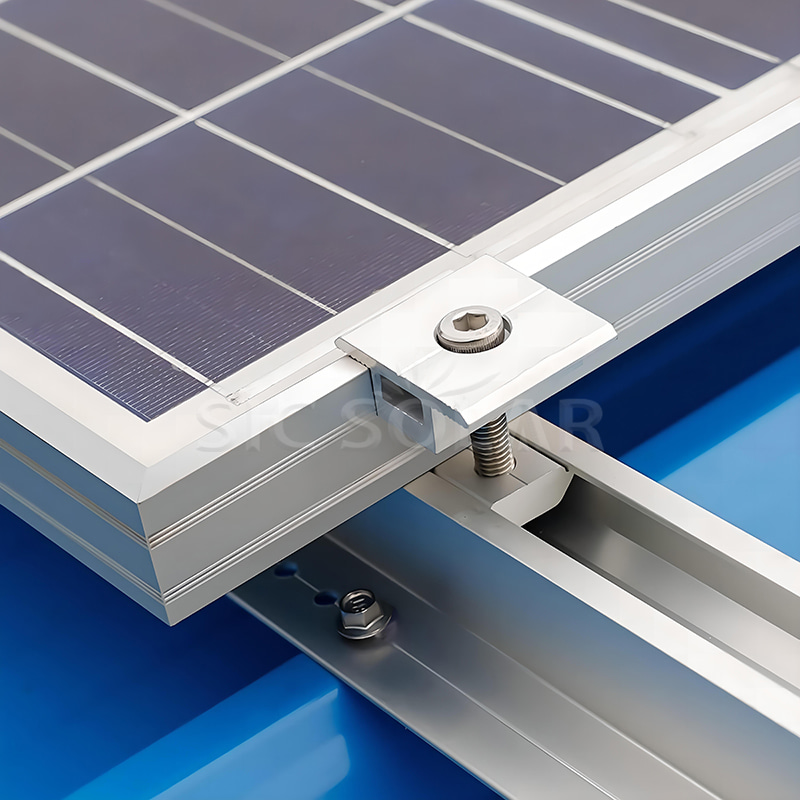

Installation Display

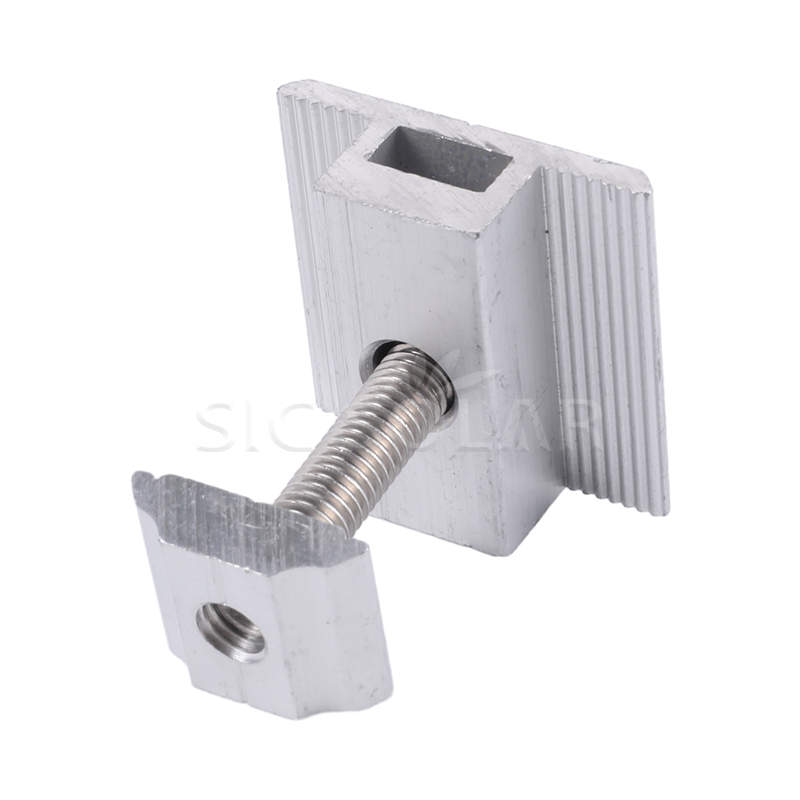

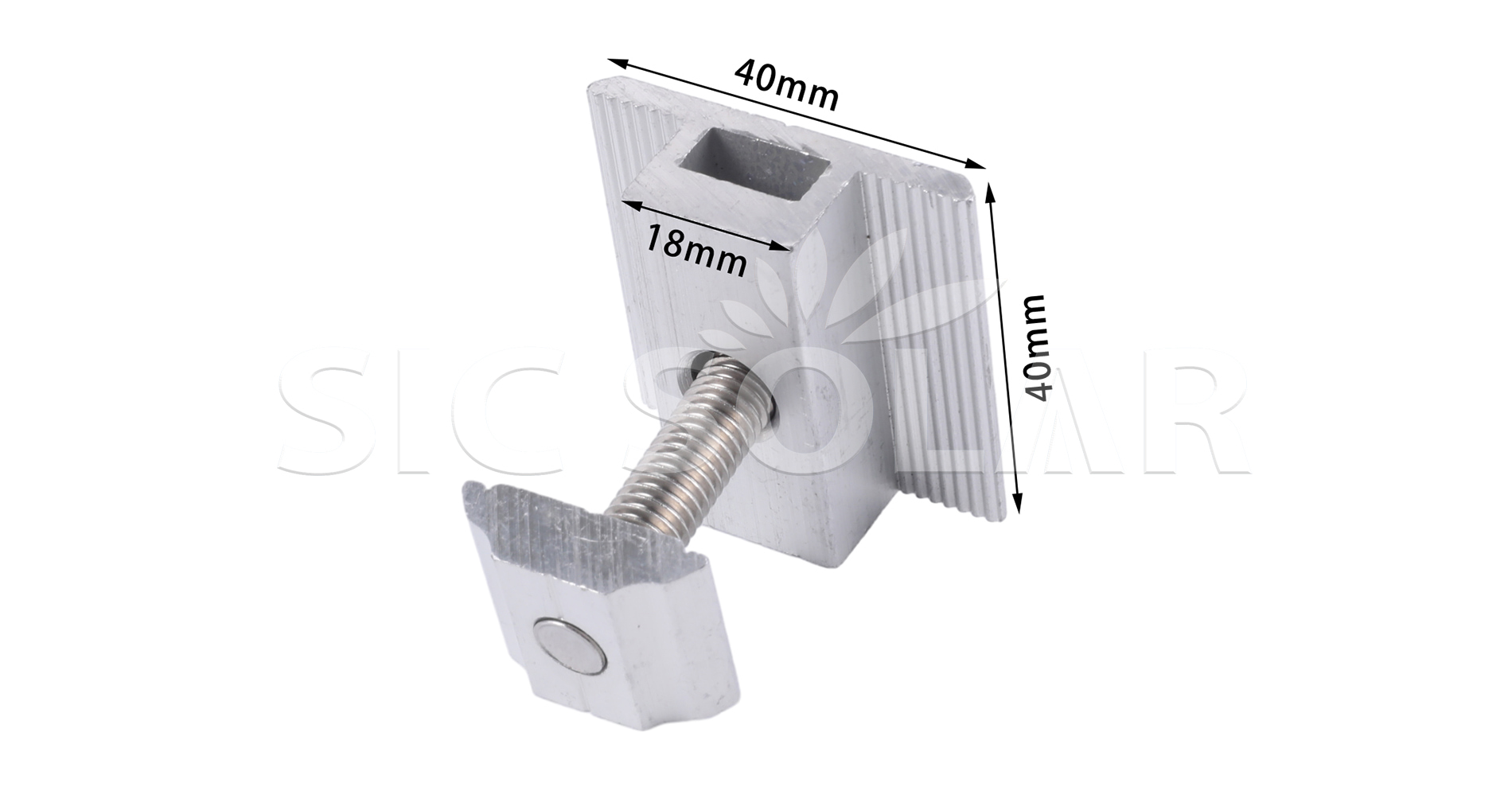

Details

Package

We use Mid Clamp for Solar Panels standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
