Aluminum Solar Mid Clamp

Nestled snugly between two solar modules, the Aluminum Solar Mid Clamp does its magic, ensuring that everything stays put while keeping that perfect spacing. It’s like the backbone of your photovoltaic setup—fighting off the chaos of wind, vibrations, and the relentless dance of thermal expansion.

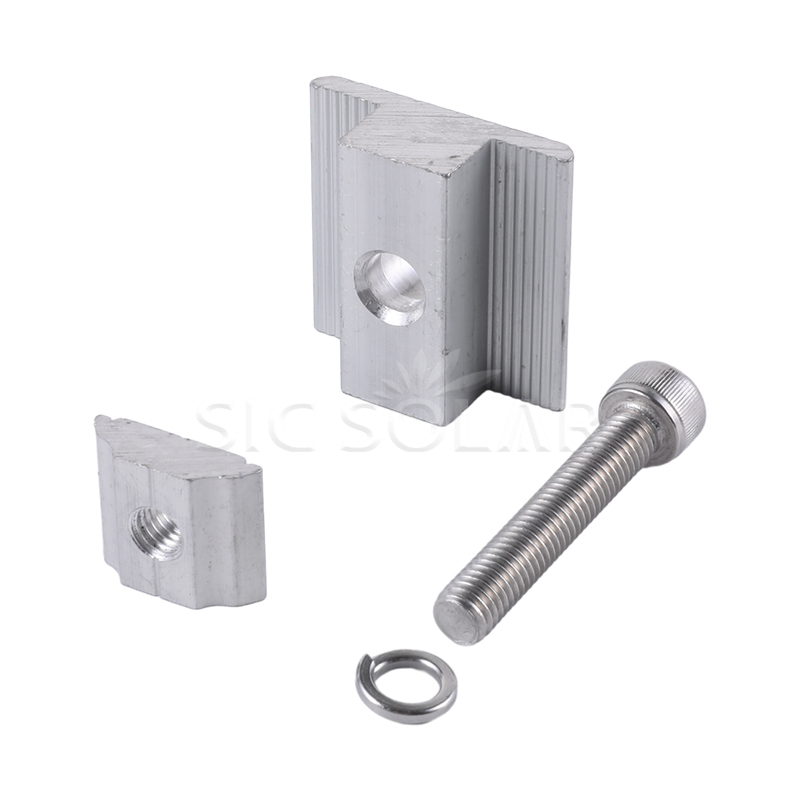

Components

Parameter (Specification)

Features & Advantages:

• High-Strength Aluminum Alloy: This isn’t just any aluminum; we’re talking about AL6005-T5, which means it’s tough, resistant to corrosion, and light as a feather.
• Secure Module Fastening: It grips those solar panels with a fierce yet even clamping force—no slipping allowed!
• Excellent Corrosion Resistance: The anodized surface? It’s like armor against oxidation, moisture, UV rays, and all the elements Mother Nature can throw at it.
• Quick Installation: With pre-assembled bolts and nuts, you’ll be zipping through installation like a pro—saving time and cutting down on labor costs.
• Wide Compatibility: Fits most framed solar modules and plays nice with various aluminum mounting rail systems—versatility at its best!
• Professional Appearance: Say goodbye to chaos; this clamp ensures uniform spacing, giving your installation a clean, organized look that’s easy on the eyes.
• Long Service Life: Built to endure decades of outdoor exposure while keeping its grip strong and true.

Installation Process:

• Position the First Solar Panel: Start by placing your first solar module on the mounting rails—secure one side with end clamps.
• Place the Mid Clamp: Slide the Aluminum Solar Mid Clamp along the edge of that first module, ready for the next panel.
• Install the Second Module: Gently slide the neighboring solar panel into place, ensuring both frames fit snugly within the mid clamp.
• Tighten the Fastener: Insert that bolt and crank it down to the recommended torque—this is where you ensure both modules are locked in tight.
• Continue Installation: Rinse and repeat for each module across your solar array.
• Final Inspection: Take a moment—check that all clamps are in their rightful places, tightened properly, and that the spacing is just right throughout your installation.

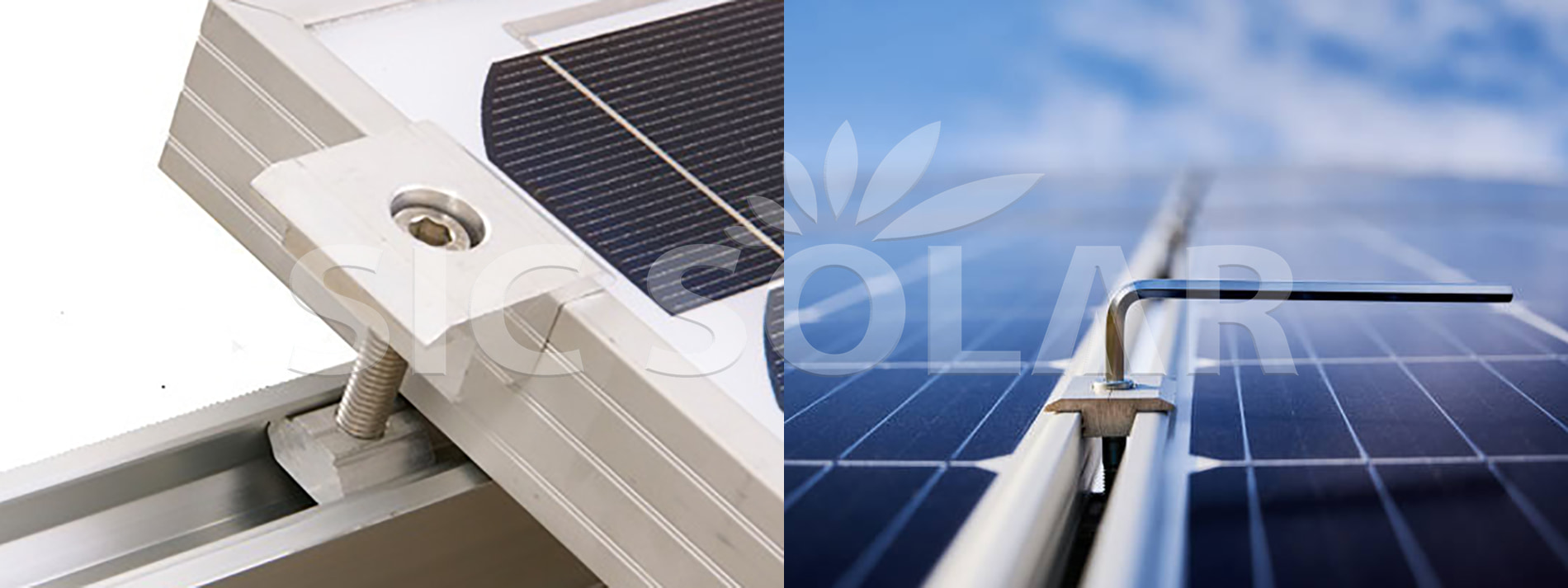

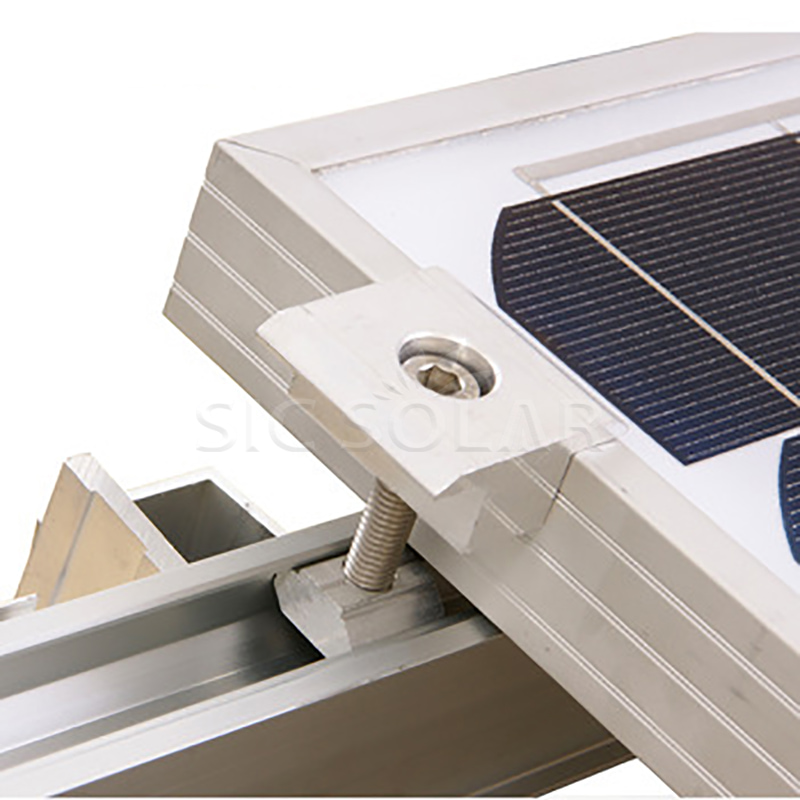

Installation Display

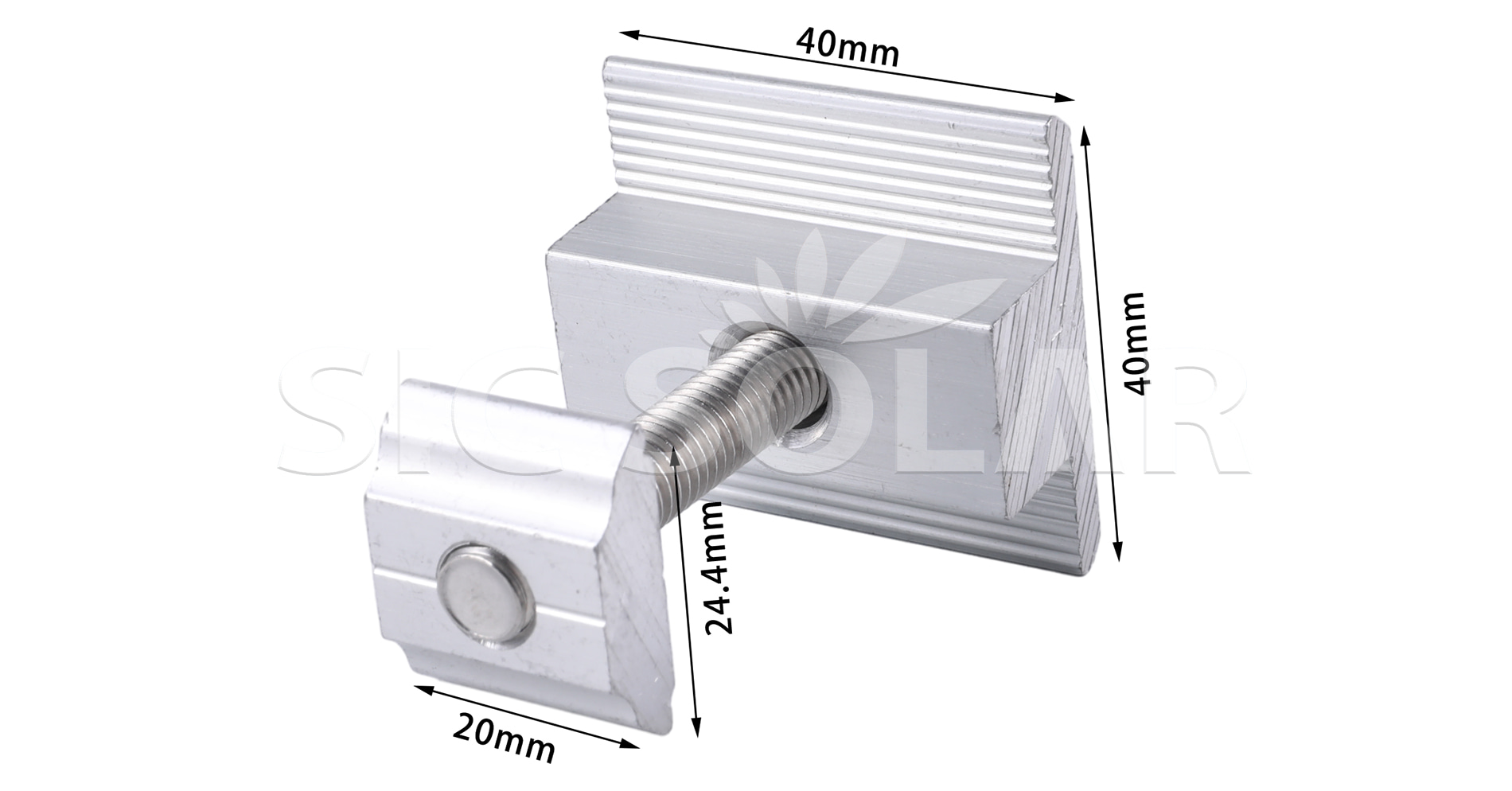

Details

Package

We use Aluminum Solar Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
