Solar Panel Mount End Clamp

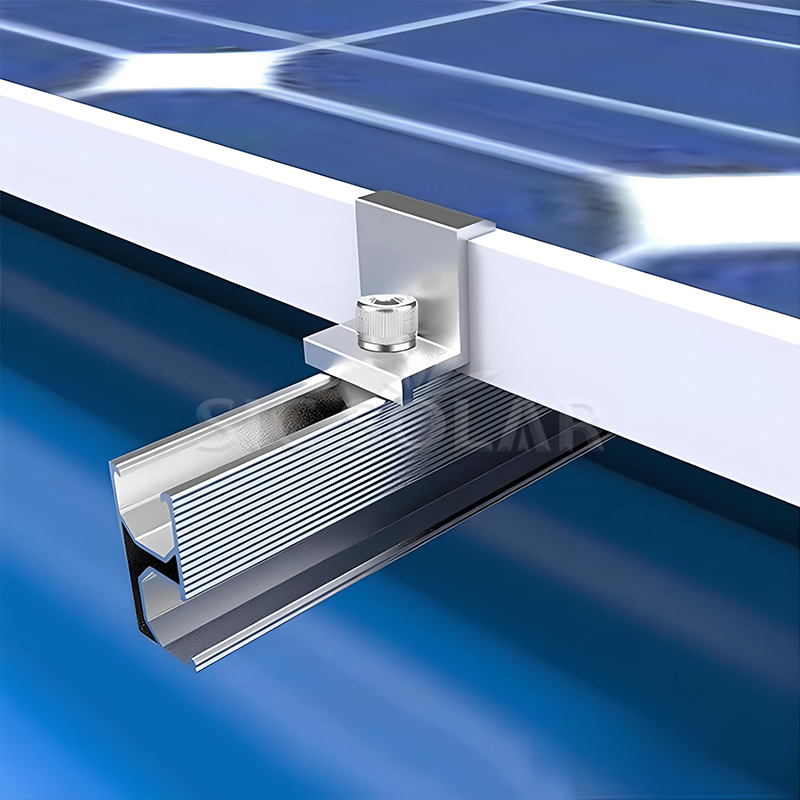

Solar Panel Mount End Clamp is installed at the outer edge of a solar panel row to hold the module frame firmly against the mounting rail. It helps prevent unwanted panel movement caused by wind, vibration, thermal expansion, and other outdoor loads.

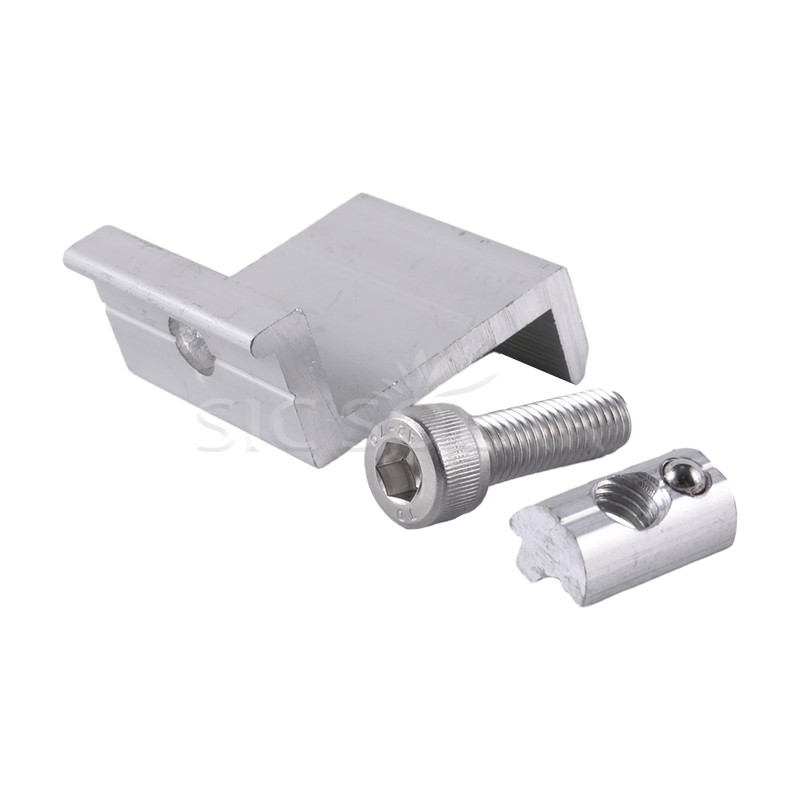

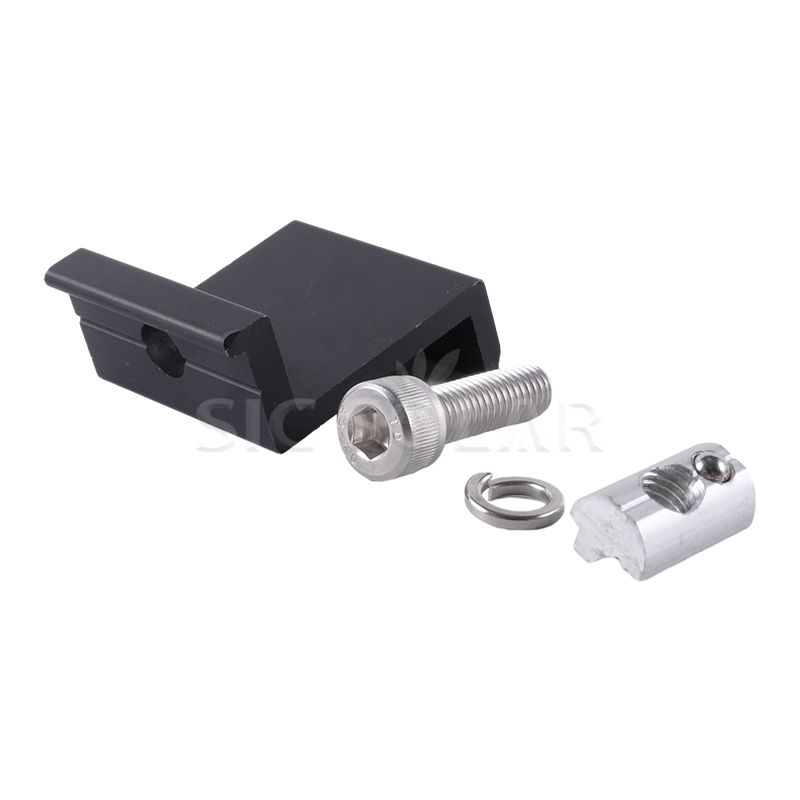

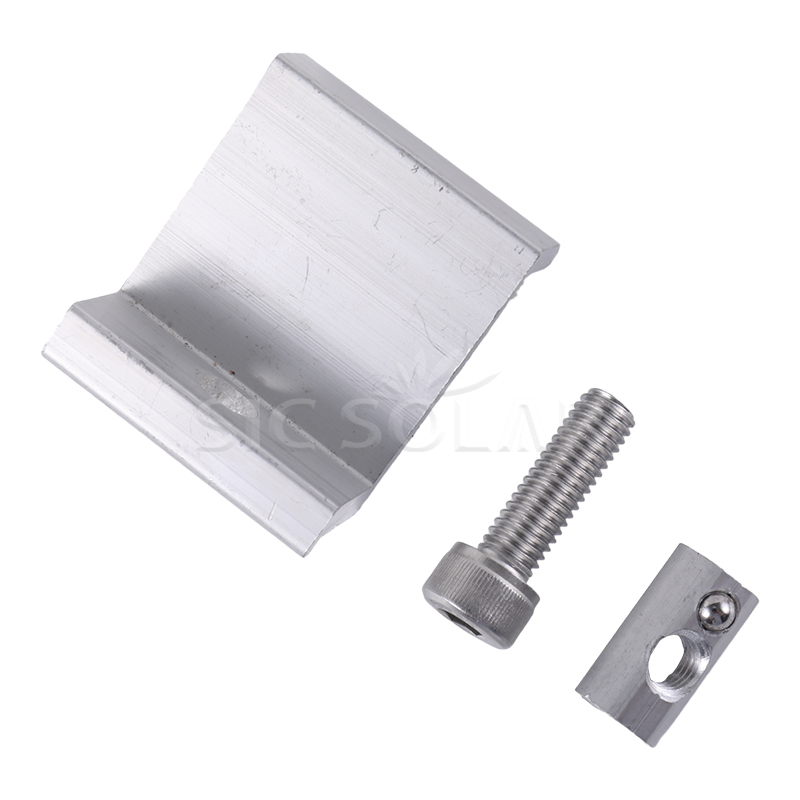

Components

Parameter (Specification)

Features & Advantages

• Secure Panel Fixing: Keeps the outer edge of the solar module firmly in place.
• High-Strength Aluminum: AL6005-T5 aluminum alloy offers a good balance of strength, durability, and low weight.
• Good Corrosion Resistance: Anodized aluminum and stainless steel hardware help withstand moisture, oxidation, UV exposure, and changing weather conditions.
• Easy Installation: The simple design makes positioning and fastening quick and straightforward.
• Multiple Size Options: Different clamp heights are available for various solar panel frame thicknesses.
• Wide Compatibility: Works with compatible aluminum mounting rails and a range of framed solar modules.
• Long Service Life: Durable materials and a solid construction support reliable performance over the life of the PV system.

Installation Precautions

• Choose the correct clamp height for the solar panel frame thickness.
• Check that the clamp matches the mounting rail profile.
• Make sure the clamp is properly seated against the module frame before tightening.
• Check panel alignment before fully tightening the fastener.
• Tighten bolts to the manufacturer's recommended torque.
• Avoid over-tightening, as excessive pressure may damage the panel frame.
• Use compatible stainless steel fasteners for outdoor installations.
• Follow the project's structural design and applicable local installation requirements.

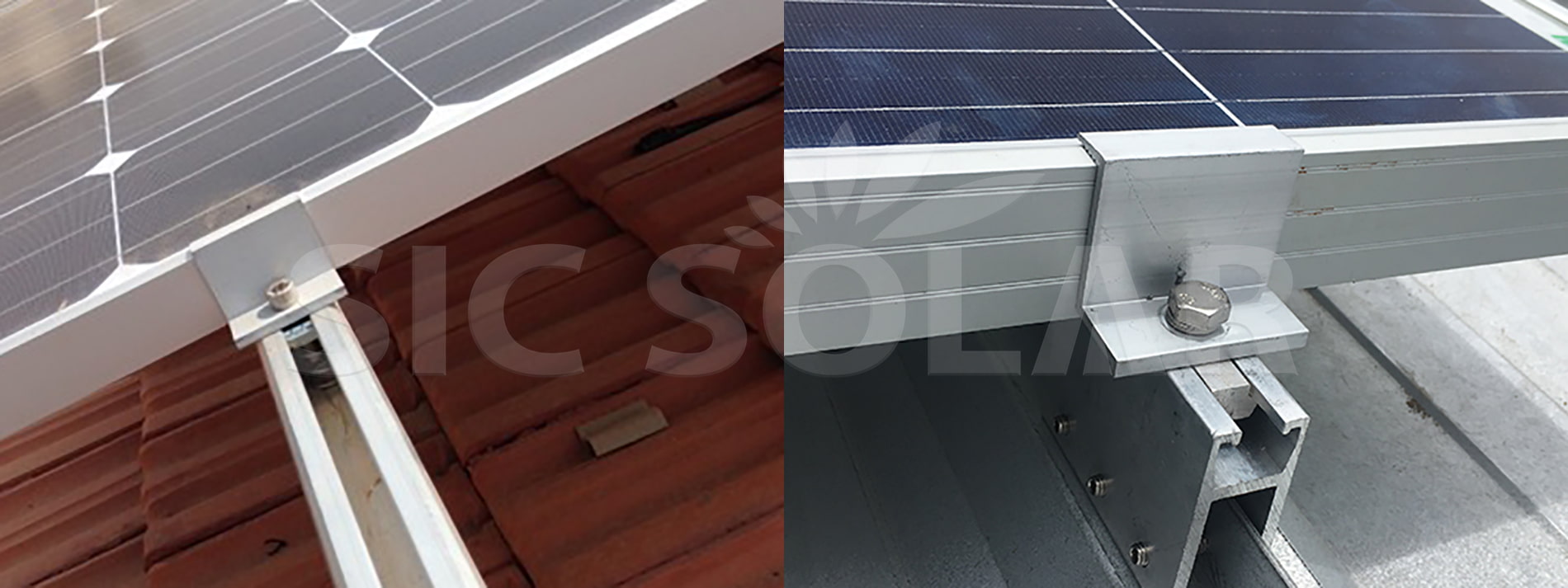

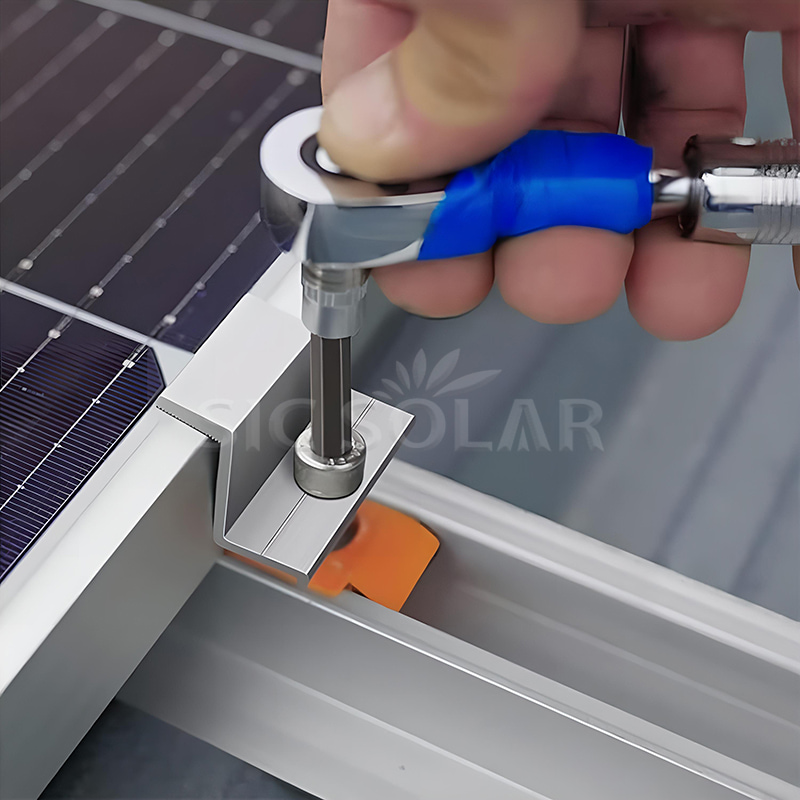

Installation Display

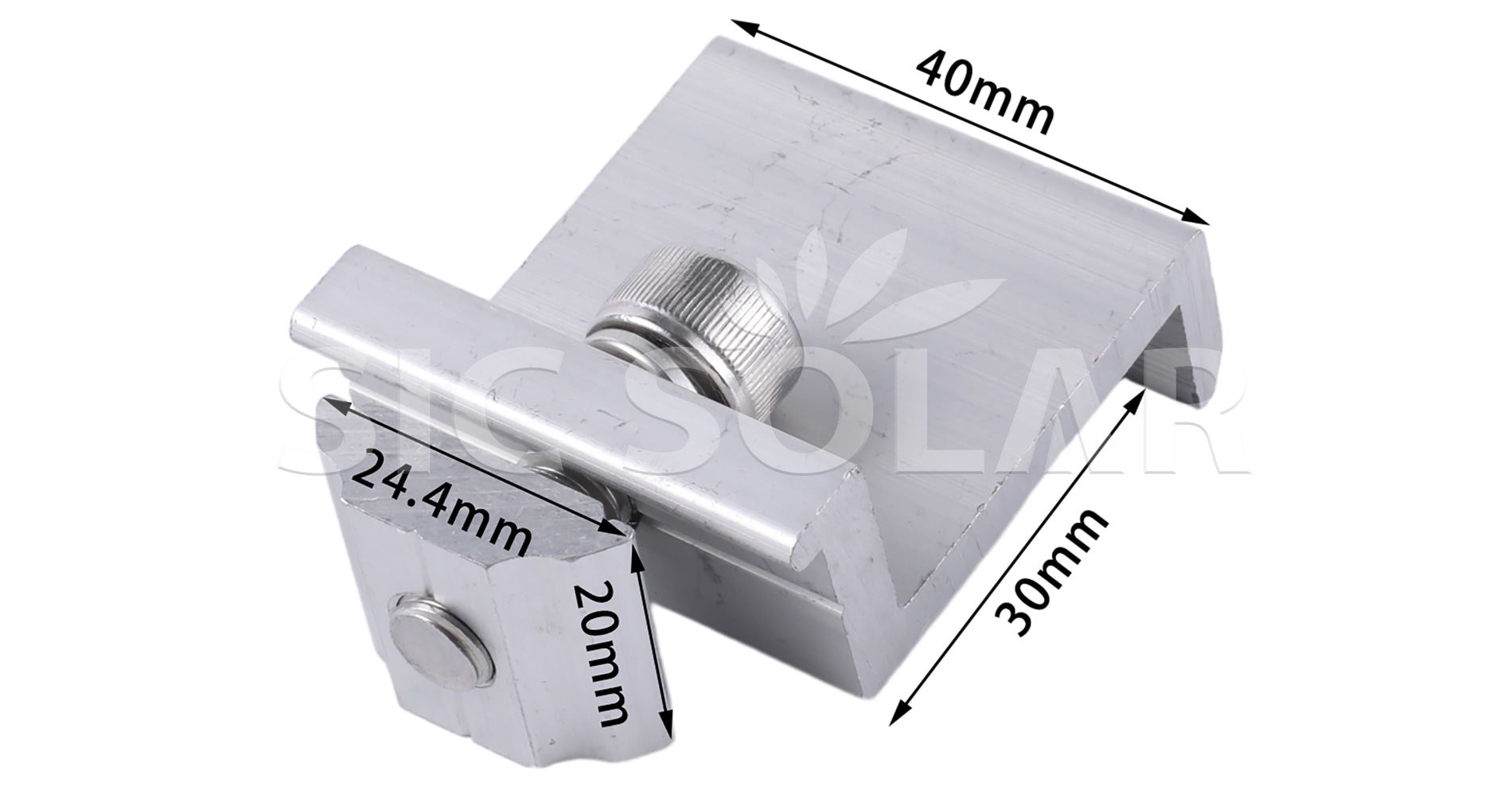

Details

Package

We use Solar Panel Mount End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
