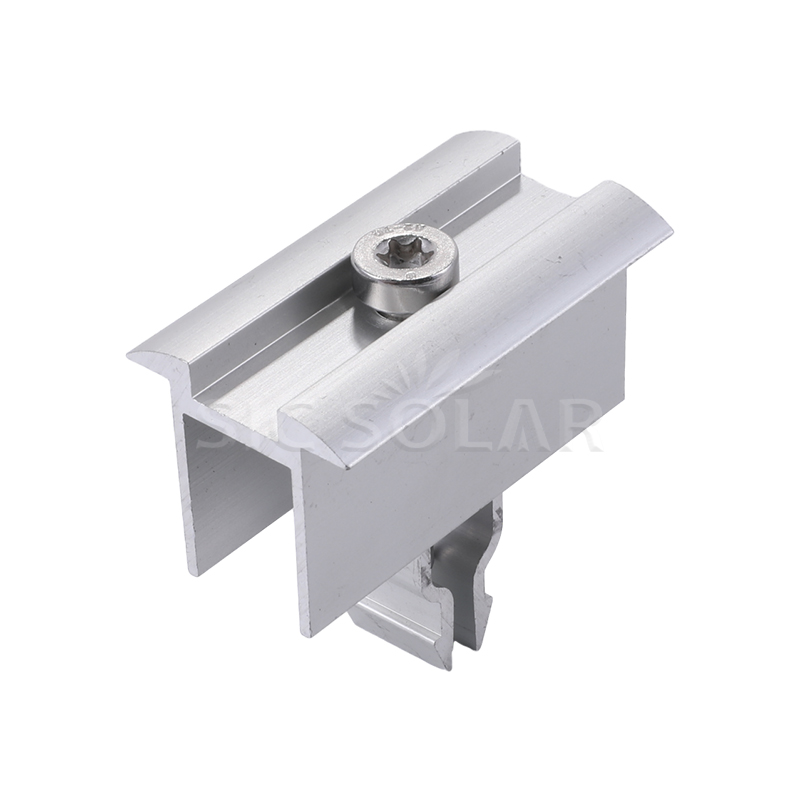

Solar Rapid Mid Clamp

The Solar Rapid Mid Clamp is crafted for those who crave efficiency—its straightforward design allows for quick positioning and fastening. It’s the go-to choice for installers who want a dependable solution that doesn’t skimp on safety or performance. You’ll feel the satisfaction of getting the job done faster.

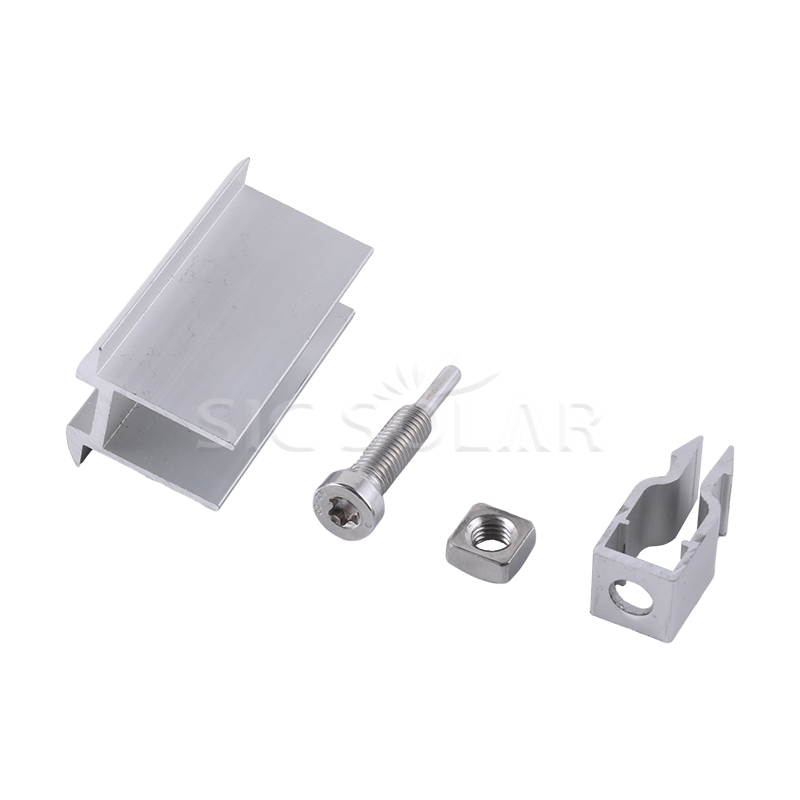

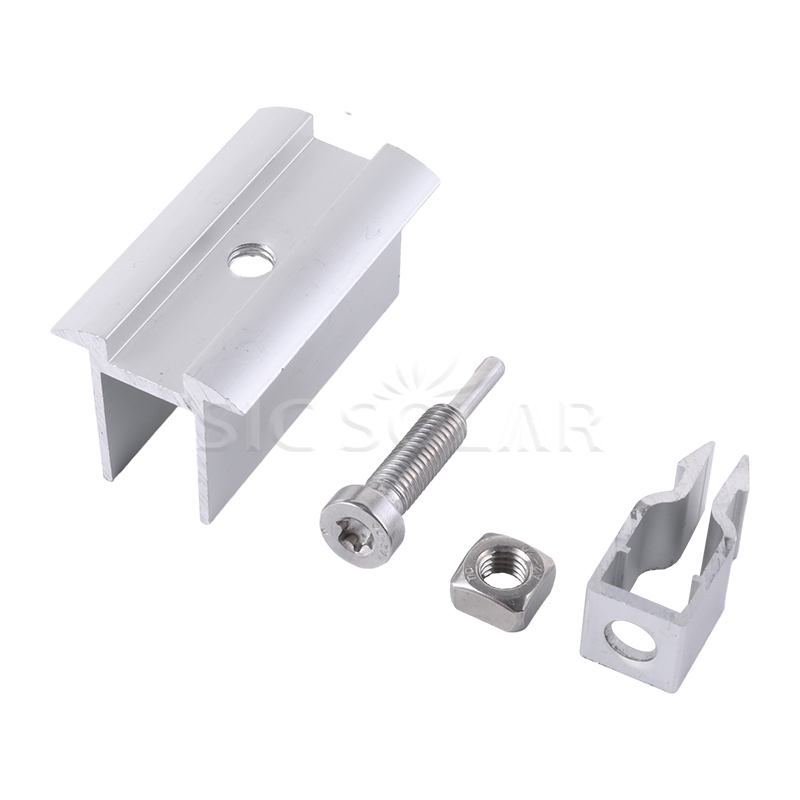

Components

Parameter (Specification)

Features & Advantages:

• Lightning-Fast Installation: With its cleverly optimized structure, this clamp allows for swift placement and fastening, making solar projects feel like a walk in Central Park.
• Sturdy Yet Light: Crafted from AL6005-T5 anodized aluminum alloy, it’s like a featherweight champion—strong but easy to handle.
• Rock-Solid Connections: The clamp delivers a stable grip, ensuring that those solar panels stay snug against the mounting rails—no wobbles here!
• Weather Warrior: Thanks to its anodized aluminum and stainless steel parts, it stands tall against moisture, oxidation, UV rays, and the elements—like a seasoned New Yorker braving a storm.
• Perfectly Spaced Panels: It keeps the gap between modules just right, allowing for thermal expansion and giving your array that polished look.
• Versatile Compatibility: Whether you’re working with framed solar modules or various aluminum mounting rails, this clamp has got your back.
• Built to Last: Designed to endure wind loads, temperature swings, and the test of time—like a trusty old friend.

Installation Process:

• Start with the First Panel: Set the first solar module onto the mounting rail, securing the outer edge with a compatible end clamp.
• Position the Mid Clamp: Slide the Solar Rapid Mid Clamp between the installed panel and where the next one will go—easy peasy!
• Add the Next Panel: Gently slide the second solar panel into place, ensuring that both module frames are snug with the clamp.
• Align the Panels: Take a moment to check that everything is lined up just right, keeping that all-important spacing intact.
• Secure the Clamp: Tighten the bolt to the recommended torque—feel that satisfying click as both modules lock into place.
• Keep Going: Repeat this process for all the remaining panels along the rail—like a well-oiled machine.
• Final Touch: Do a thorough check to ensure all clamps are in place, bolts are tight, and the solar array is firmly secured—because who doesn’t love a job well done?

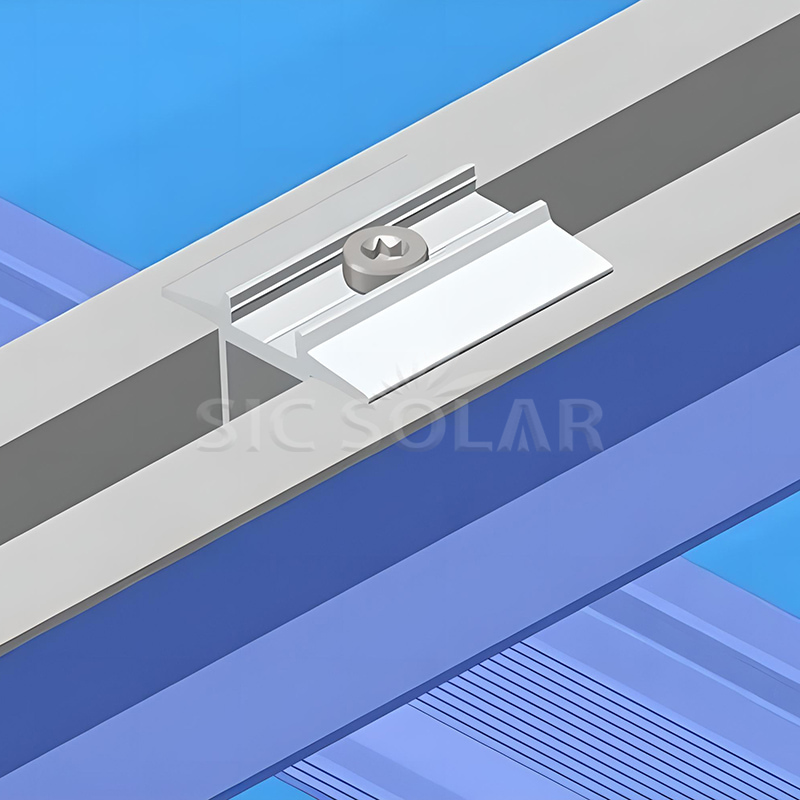

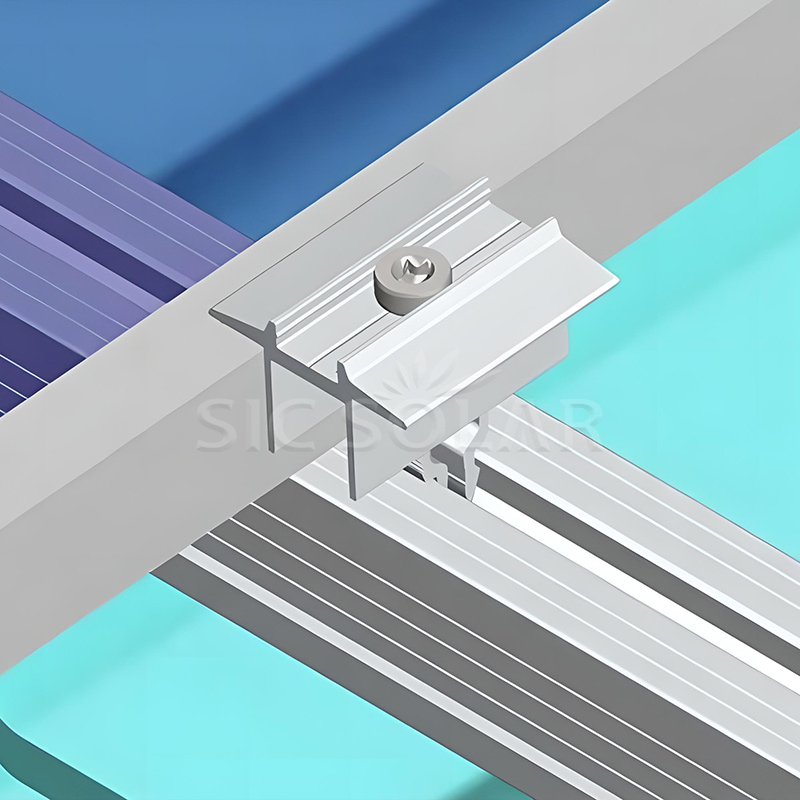

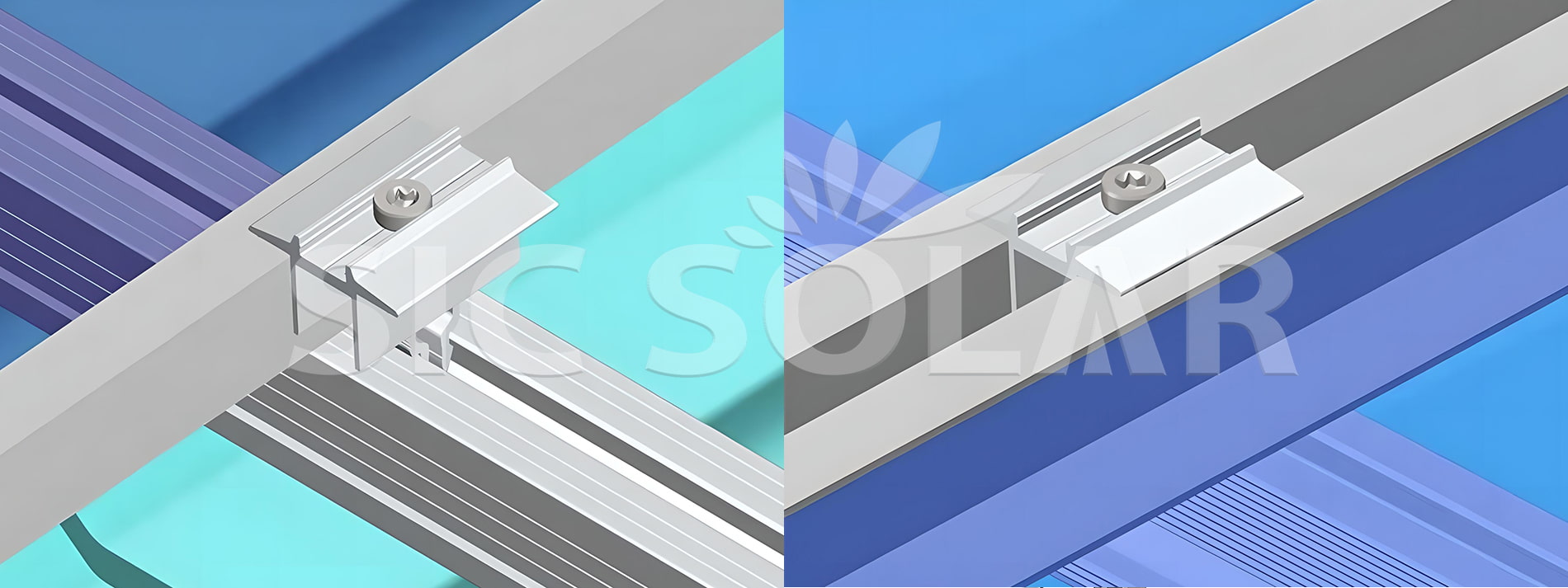

Installation Display

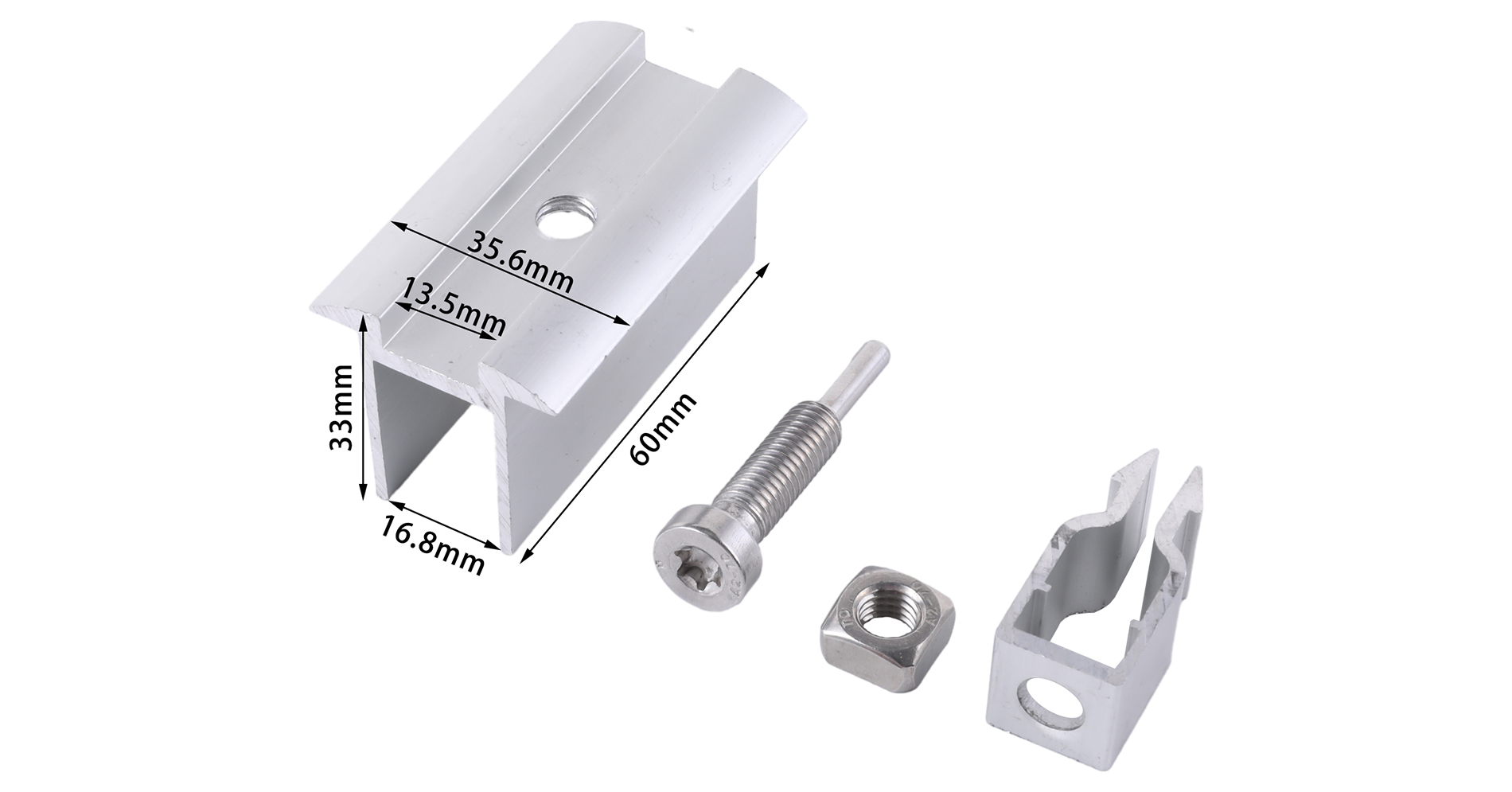

Details

Package

We use Solar Rapid Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
