Quick Mount Mid Clamp

Designed for easy attachment to aluminum mounting rails, the Quick Mount Mid Clamp requires no additional holes. It applies even pressure between panels, ensuring they stay securely attached. Its compact design simplifies installation and maintains a clean look.

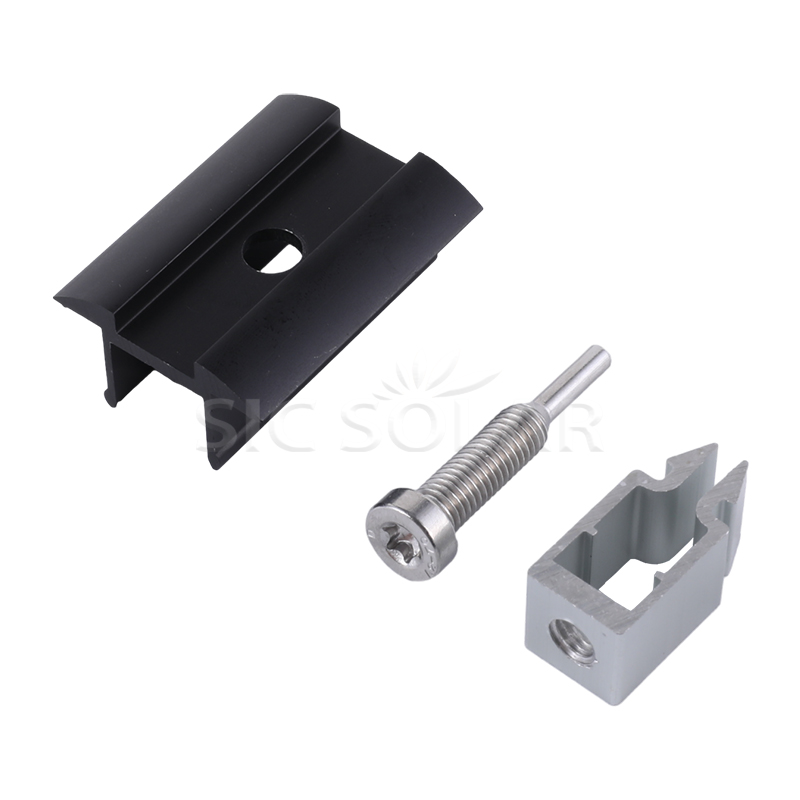

Components

Parameter (Specification)

Features & Advantages:

• Strong Fixation: Ensures secure attachment between panel frames and rails for system stability.
• Corrosion Resistant: Made from anodized aluminum and stainless steel for outdoor durability.
• Easy Installation: Simple design reduces installation time by allowing direct fastening.
• Space-Efficient: Keeps panels appropriately spaced without wasting space.
• Versatile Application: Suitable for various installations like pitched and flat roofs, ground systems, and carports.
• Installer-Friendly: Straightforward method facilitates ease of use for professionals.

Installation Steps:

• Install Rails: Align mounting rails as per project layout.
• Position Panels: Align and place the first panel on the rails.
• Insert Clamp: Place the mid clamp between panels, ensuring proper contact with frames.
• Adjust Position: Maintain necessary spacing and alignment between panels.
• Tighten Fastener: Secure the clamp using recommended torque.
• Complete Installation: Install remaining panels following the same steps, ensuring all clamps are secure upon final inspection.

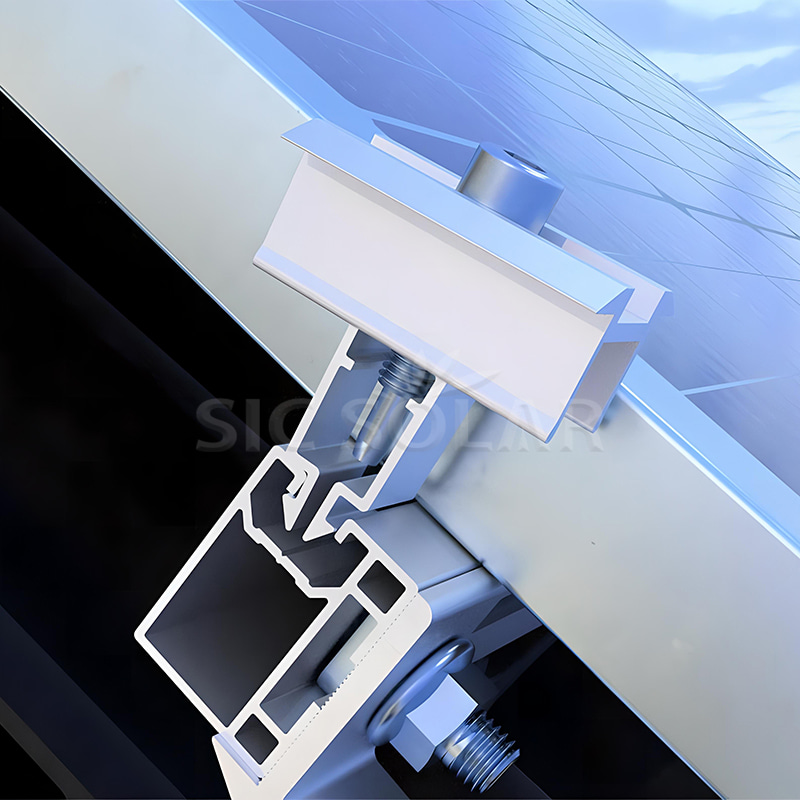

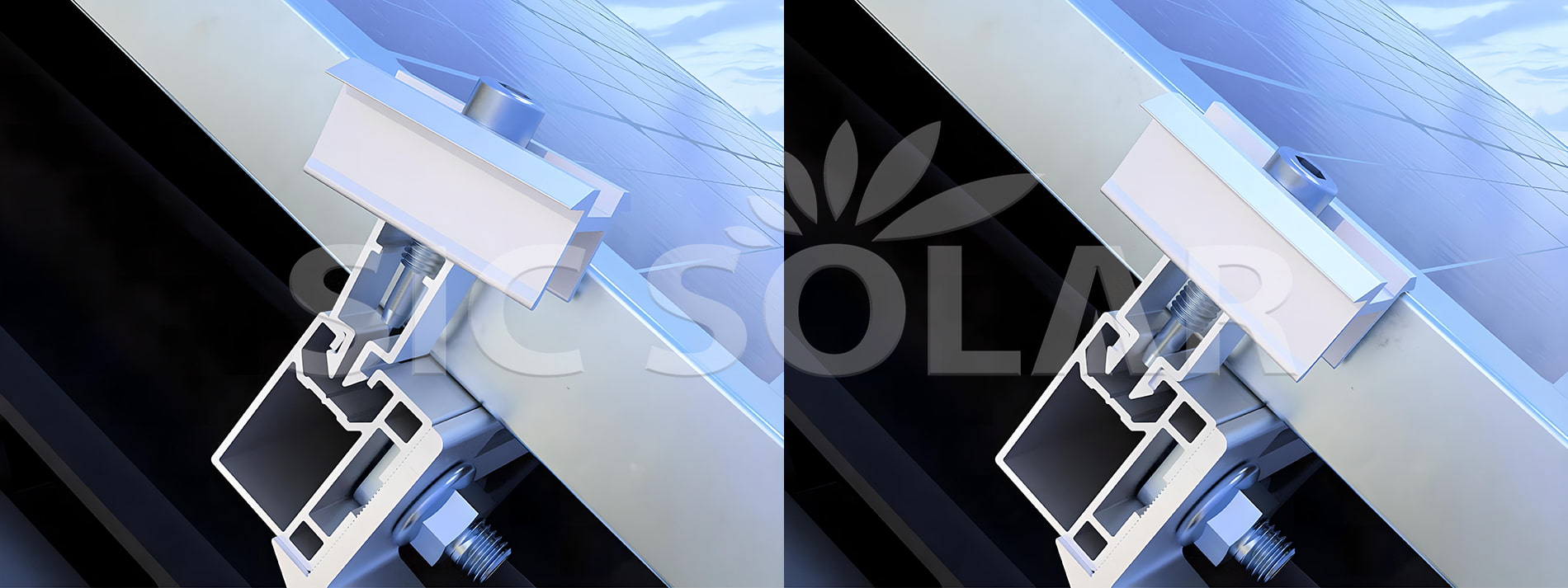

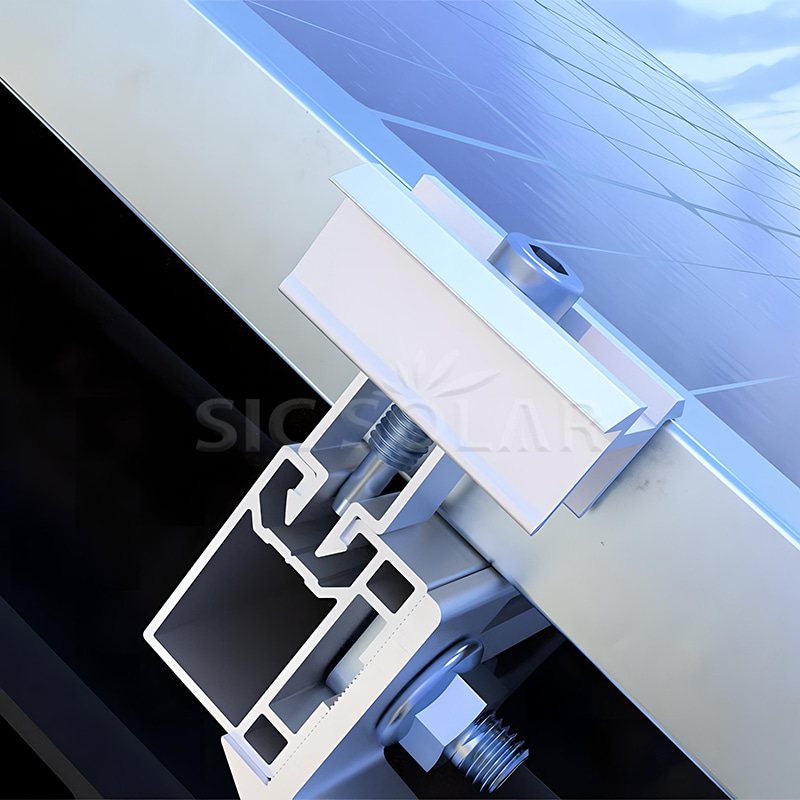

Installation Display

Details

Package

We use Quick Mount Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
