Solar Mounting System End Clamp

Solar Mounting System End Clamp is installed at the outer edge of a solar panel row to hold the module frame firmly against the mounting rail. It’s a key fastening component in the PV mounting system, helping keep panels securely positioned during long-term operation.

Components

Parameter (Specification)

Why Choose Solar Mounting System End Clamp?

• Reliable Fixing: Keeps the outer edges of solar modules firmly secured to the rails.
• Quick Installation: Simple positioning and fastening save time on site.
• Installer-Friendly: Easy to handle, adjust, and tighten during installation.
• Durable Construction: Built for long-term outdoor PV applications.
• Good Corrosion Resistance: Suitable for moisture, rain, sunlight, and changing weather conditions.
• Flexible Compatibility: Different specifications are available for various panel frames and mounting rail profiles.
• Clean Finish: Gives the ends of solar panel rows a neat, consistent appearance.

Installation Steps

• Install the Mounting Rails：Install the rails according to the project design. Check that they’re properly aligned and securely fixed to the supporting structure.
• Position the Solar Panel：Place the panel on the rails and align it with the planned system layout.
• Position the End Clamp：Place the end clamp against the outer edge of the solar panel frame.
• Insert the Fastener：Slide or insert the clamp fastener into the compatible rail channel.
• Adjust the Position：Adjust the panel and clamp until the required alignment and spacing are achieved.
• Check the Clamping Zone：Make sure the clamp sits within the clamping area specified by the solar module manufacturer.
• Tighten the Fastener：Tighten the fastener to the manufacturer's recommended torque.
• Final Inspection：Check that the clamp is firmly secured and the solar panel remains properly aligned.

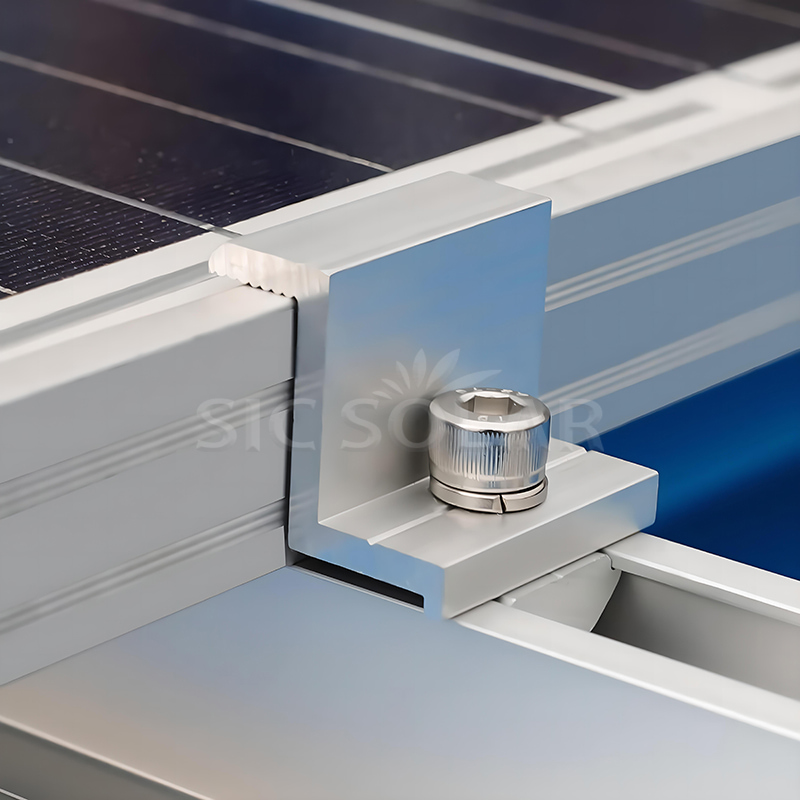

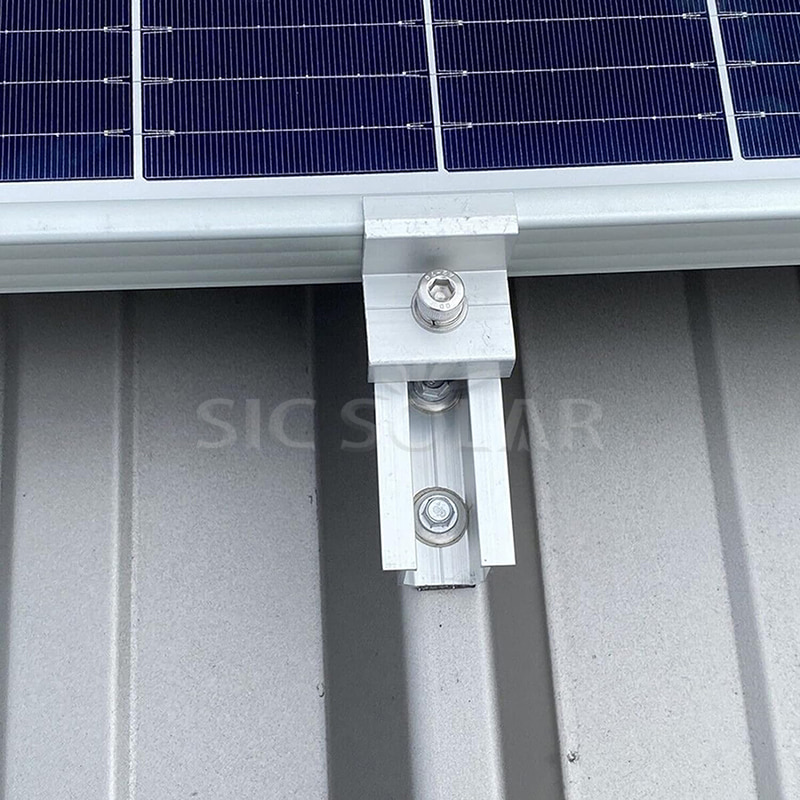

Installation Display

Package

We use Solar Mounting System End Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
