Easy Installation Solar Panel Mid Clamp

This Easy Installation Solar Panel Mid Clamp firmly secures solar modules in a row on rail-based systems by applying clamping pressure between adjacent panels. Compatible with multiple mounting rails, it's ideal for both rooftop and ground-mounted photovoltaic projects.

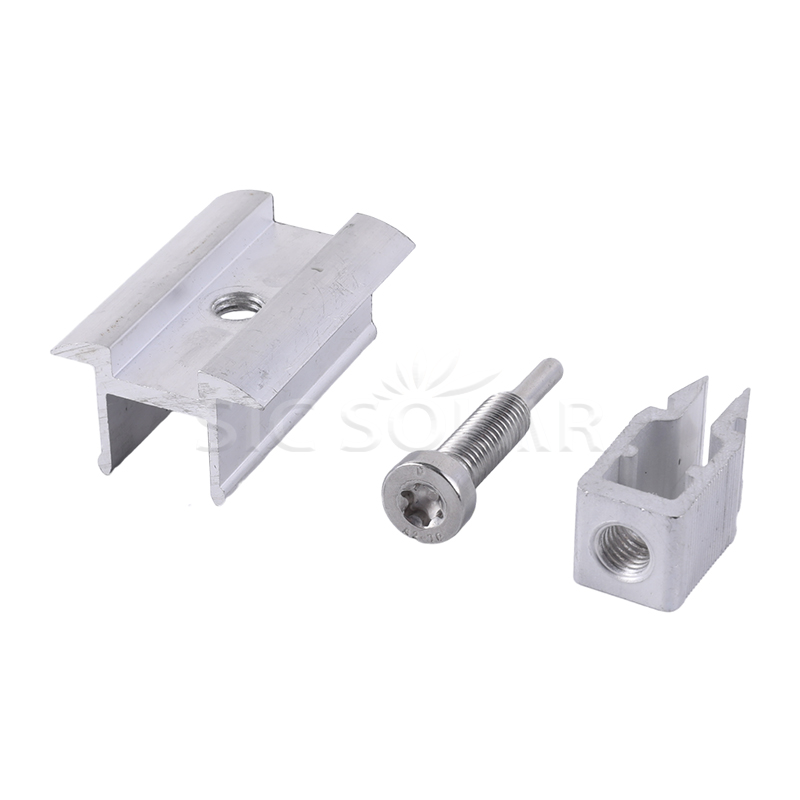

Components

Parameter (Specification)

Installation Steps:

• Prepare Mounting Rails: Align and securely fix rails as per project design.
• Position First Solar Panel: Place the first module correctly on the rails.
• Insert Mid Clamp: Position between the first and next panel, ensuring contact with frames.
• Position Next Panel: Place next to the mid clamp, maintaining spacing.
• Adjust Clamp: Center the clamp and ensure proper contact surface positioning.
• Tighten Fastener: Secure according to manufacturer's torque specifications.
• Check Installation: Verify panels are secure and aligned before proceeding.

Installation & Maintenance Precautions:

• Check Panel Compatibility: Ensure clamp fits panel frame dimensions.
• Use Correct Torque: Follow manufacturer’s torque guidelines for secure installation.
• Maintain Panel Alignment: Ensure modules are level before tightening clamps.
• Inspect Rail Connection: Ensure stability by securing mounting rails.
• Avoid Frame Damage: Secure panels without using excessive force.
• Regularly Check Fasteners: Inspect components for looseness or damage.
• Consider Environment: Choose suitable materials for harsh conditions.
• Follow Local Standards: Adhere to installation standards and manufacturer guidelines.

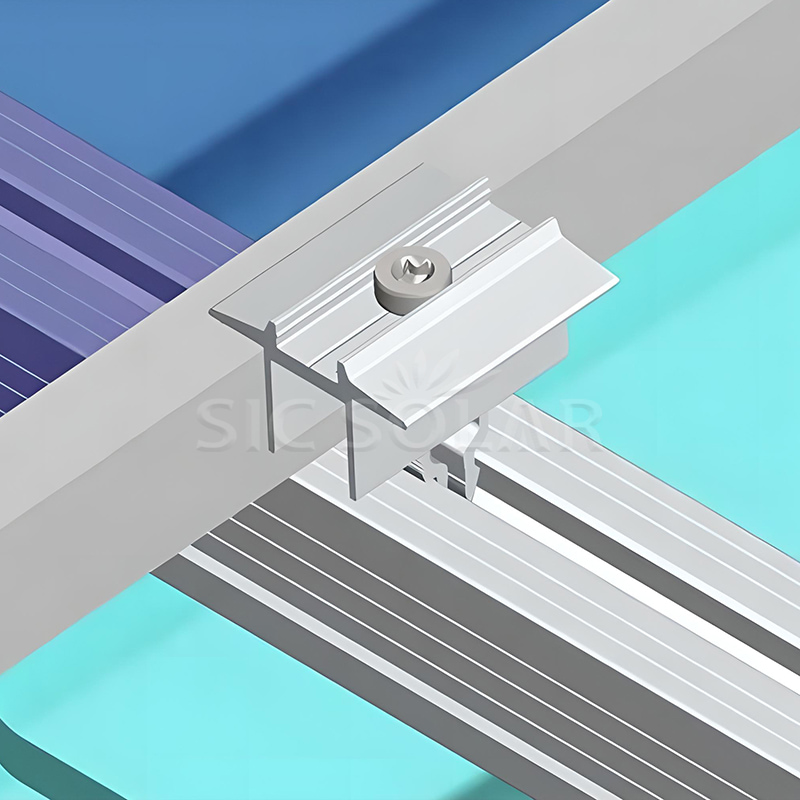

Installation Display

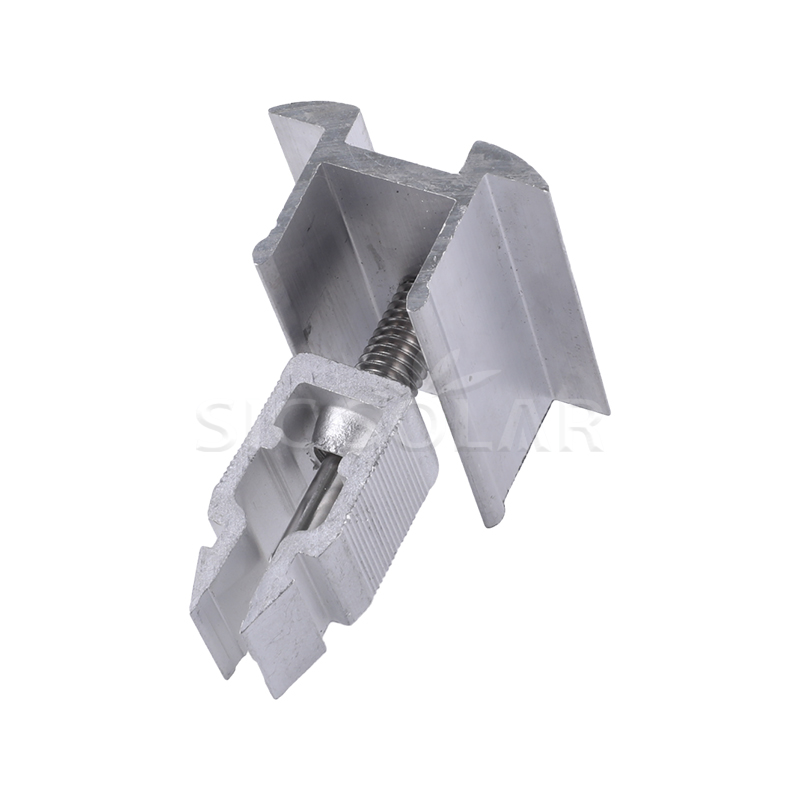

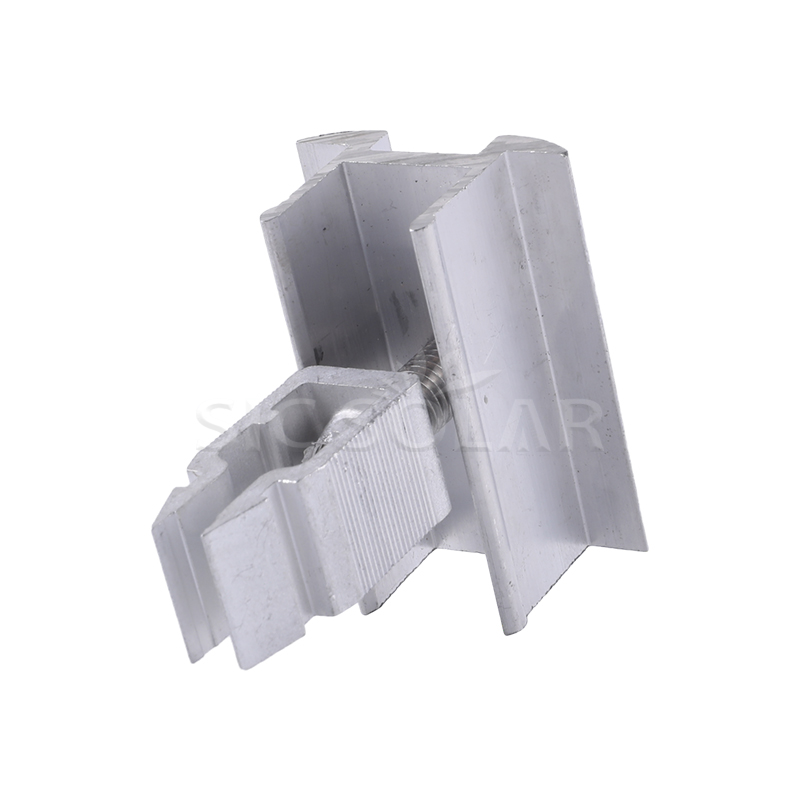

Details

Package

We use Easy Installation Solar Panel Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
