Mid Clamp for Solar Panel Fixing Brackets

Mid Clamp serves as a vital accessory in photovoltaic mounting systems, firmly linking solar panels with fixing brackets or mounting rails. It is placed between adjacent solar modules to ensure proper alignment, effectively preventing movement due to wind, vibration, or thermal expansion.

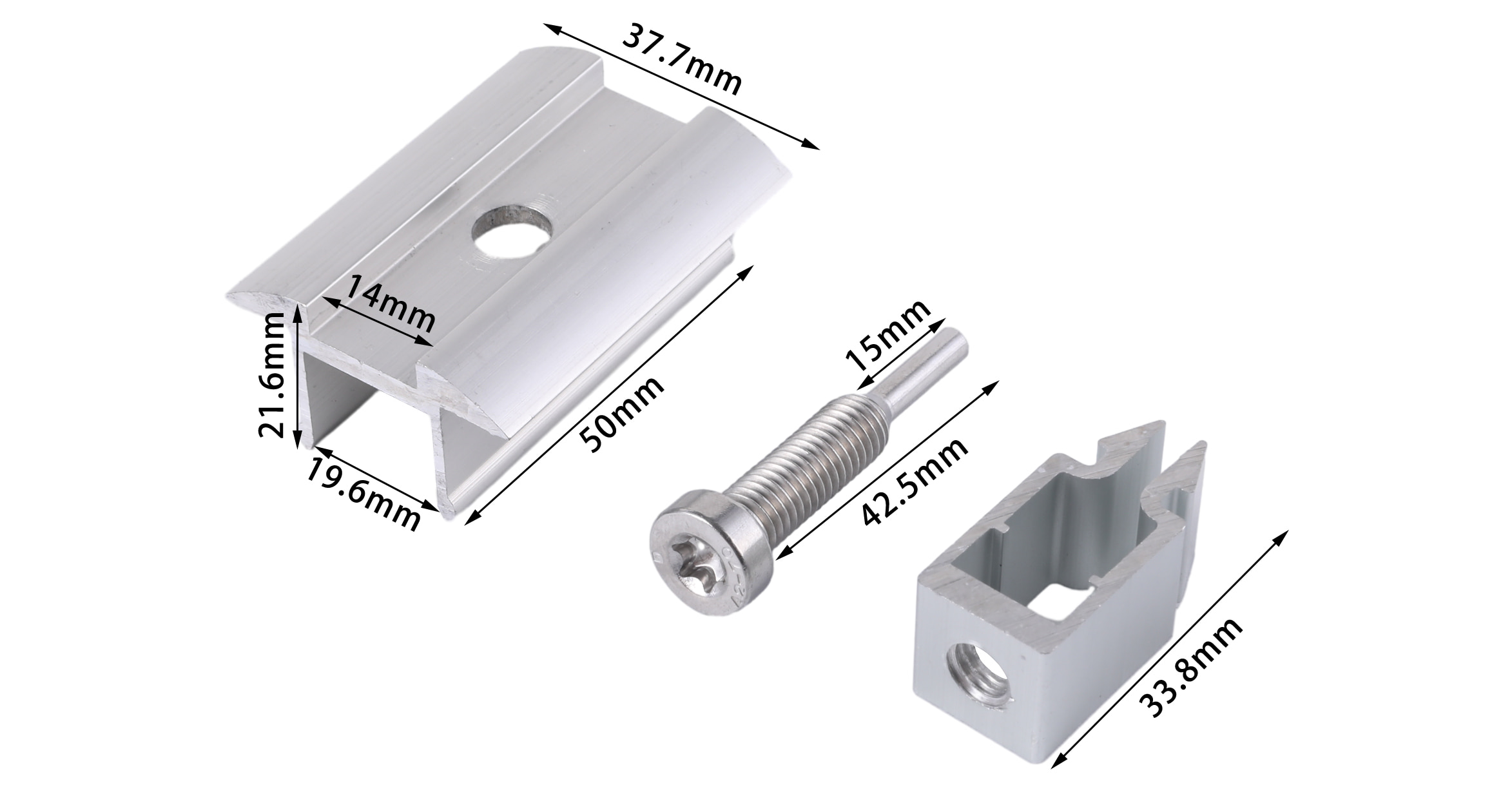

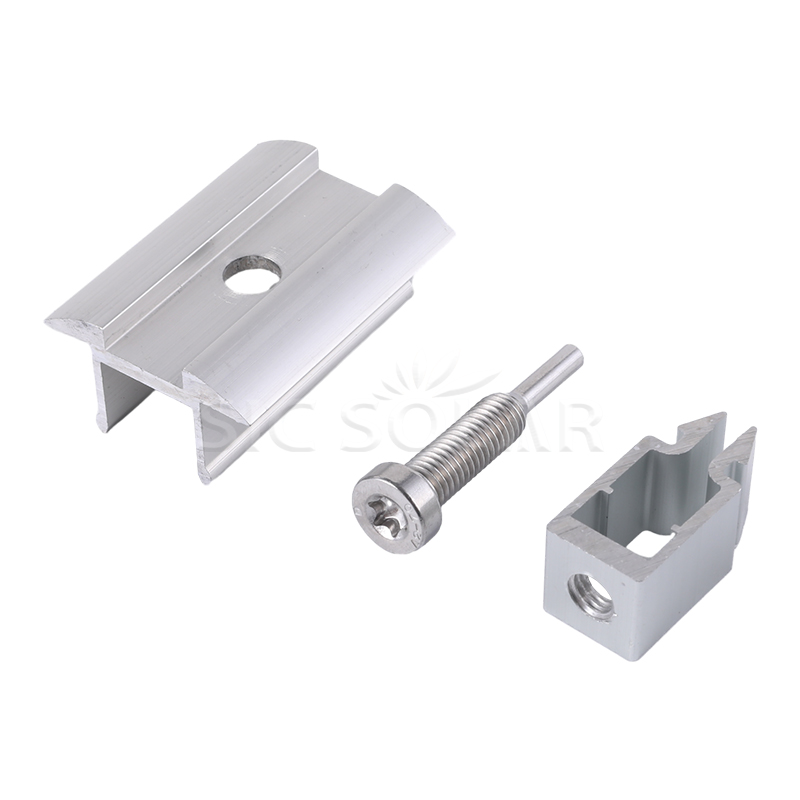

Components

Parameter (Specification)

Installation Precautions:

• Choose the correct mid clamp height according to the thickness of the solar panel frame.
• Verify compatibility between the clamp and the solar panel fixing bracket system.
• Ensure both panel frames are correctly positioned before tightening.
• Maintain the specified spacing between adjacent modules.
• Tighten bolts according to the recommended torque specifications.
• Avoid overtightening, which may damage the solar panel frame.
• Ensure all components are properly aligned before completing installation.

Maintenance Recommendations:

• Regularly inspect mid clamps and fasteners during PV system maintenance.
• Check bolt tightness after experiencing strong winds, storms, or extreme weather events.
• Look for signs of corrosion, deformation, cracks, or other damage on clamps.
• Immediately replace any damaged components to ensure system safety.
• Keep the mounting structure clean and accessible for easy inspection.

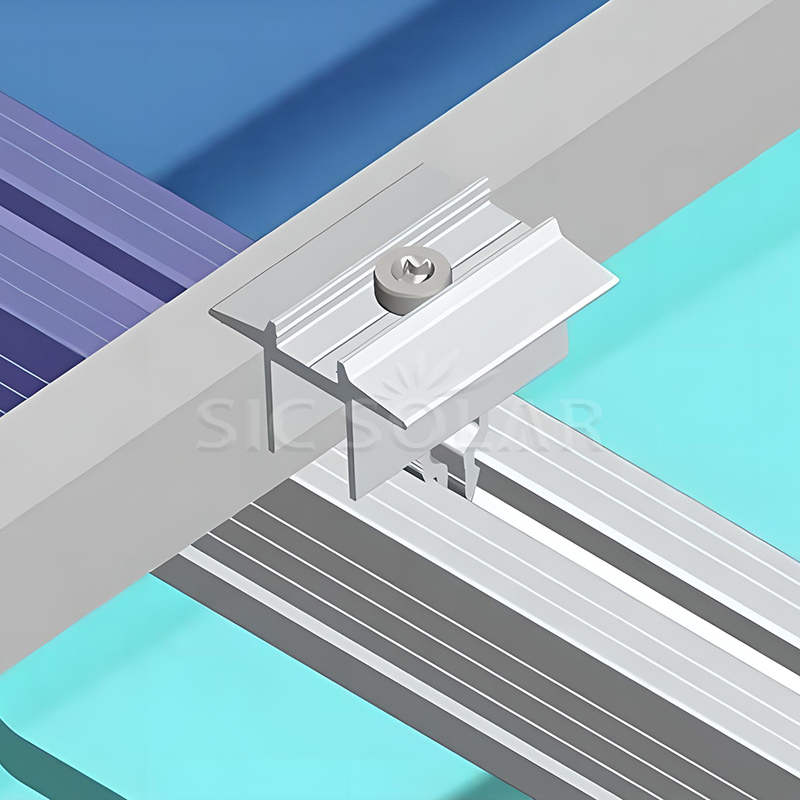

Installation Display

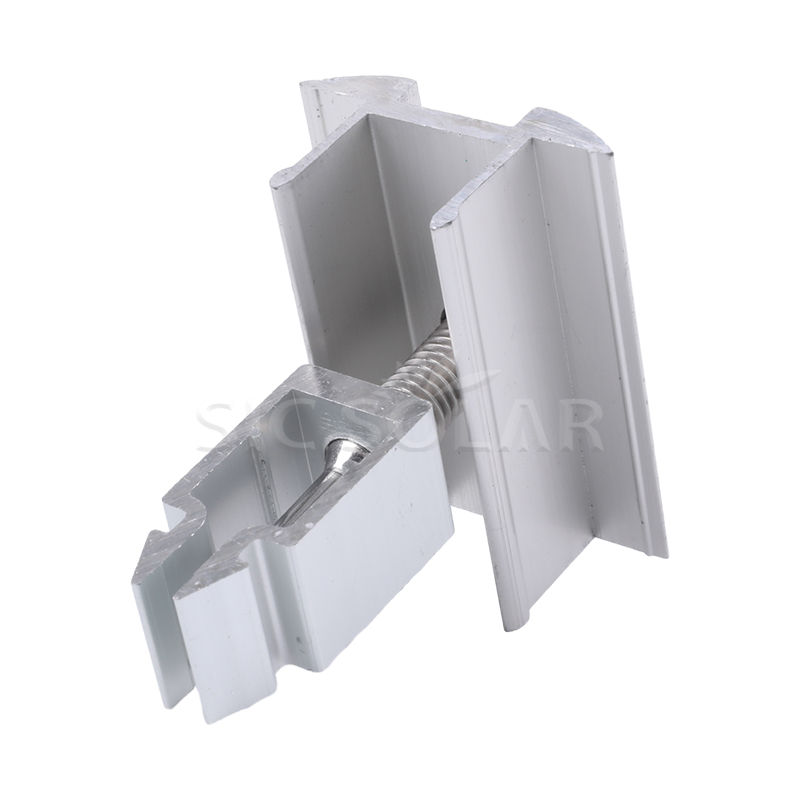

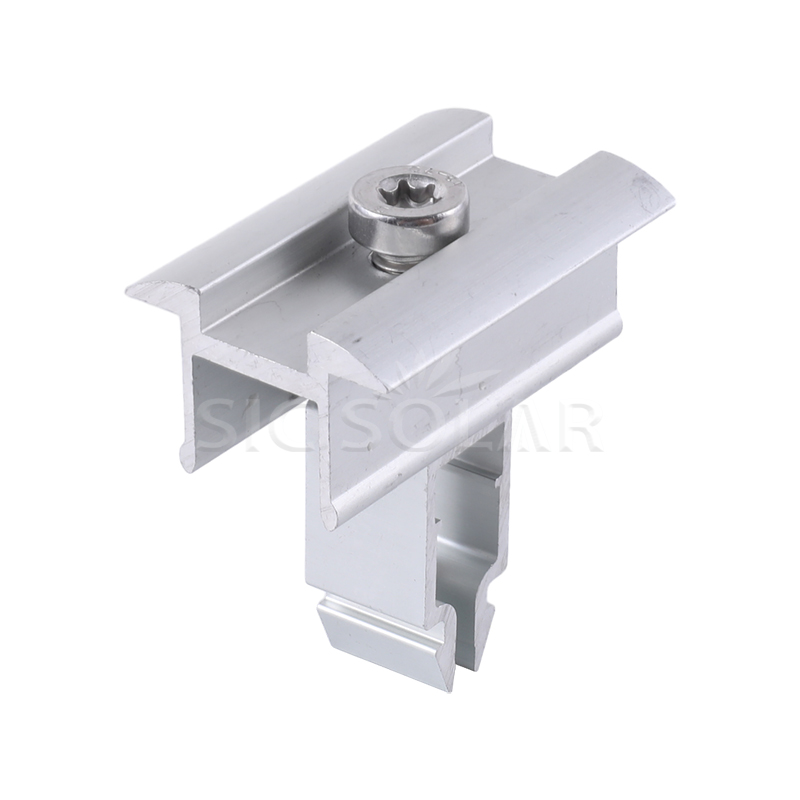

Details

Package

We use Mid Clamp for Solar Panel Fixing Brackets standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
