Solar Panel End Clamp Fast Installation

Solar Panel End Clamp is installed at the end of a panel row to hold the outer edge of the module firmly against the mounting rail. It creates a secure connection between the panel frame and the mounting structure while keeping the installation process straightforward. The fast-installation design is particularly useful on projects with a large number of modules. Installers can position the clamp, connect the fastening hardware, and secure the panel without adding unnecessary installation steps.

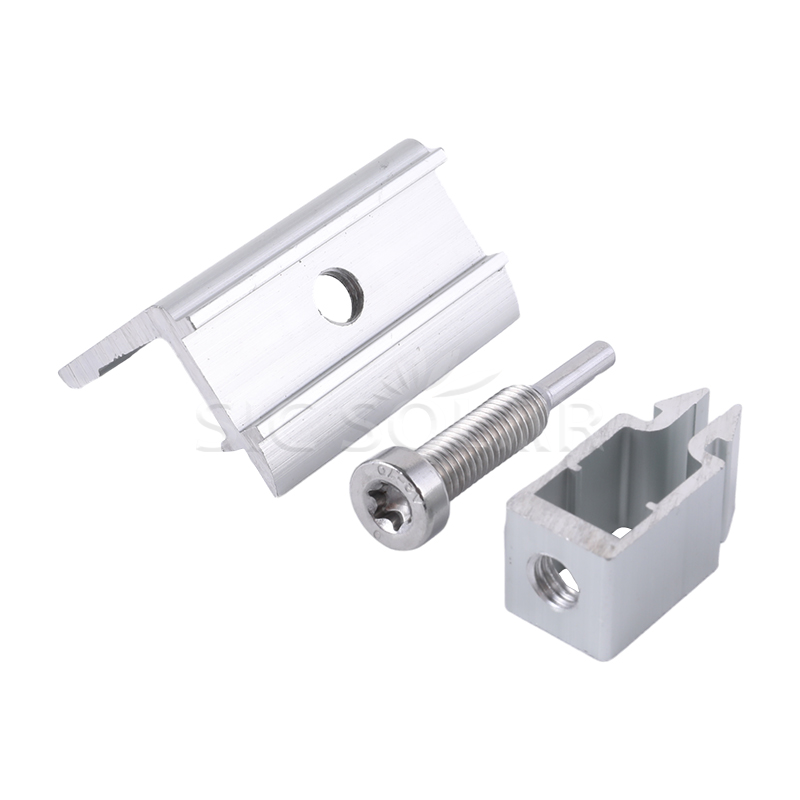

Components

Parameter (Specification)

Key Features & Advantages

• Fast Installation：The practical design allows the clamp to be positioned and secured quickly, helping save time during module installation.
• Simple Structure：The straightforward construction makes the clamp easy to handle, position, and adjust on site.
• Secure Panel Fixation：The clamp applies stable pressure to the outer edge of the panel frame, keeping the module firmly connected to the mounting rail.
• Good Corrosion Resistance：The materials are suitable for outdoor PV applications and can withstand normal exposure to rain, humidity, and sunlight.
• Lower Labor Requirements：A faster installation process can reduce repetitive work and improve productivity, especially on larger solar arrays.
• Neat Connection：The compact design creates a clean connection between the panel frame and mounting rail without adding unnecessary bulk.
• Wide Range of Applications：It is suitable for compatible solar mounting systems used on residential rooftops, commercial buildings, industrial projects, and ground-mounted installations.

Installation Steps

• Prepare the Mounting Rails：Install the solar rails according to the project layout. Check that the rails are properly aligned and securely attached to the supporting structure.
• Position the Solar Panel：Place the module on the rails and adjust it to the required position.
• Place the End Clamp：Position the end clamp against the outer edge of the panel frame. Make sure it is within the clamping area specified by the module manufacturer.
• Connect the Clamp to the Rail：Insert the appropriate fastening hardware into the mounting rail and connect it to the end clamp.
• Check the Position：Make sure the clamp is sitting evenly against the panel frame and that the module remains properly aligned.
• Tighten the Fastener：Tighten the bolt or nut to the torque specified by the mounting system manufacturer. Avoid overtightening, which could damage the panel frame or mounting components.
• Perform a Final Check：Check the panel alignment, clamp position, fastener, and rail connection to make sure the module is securely fixed before continuing with the next panel.
