Solar Quick Mounting Mid Clamp

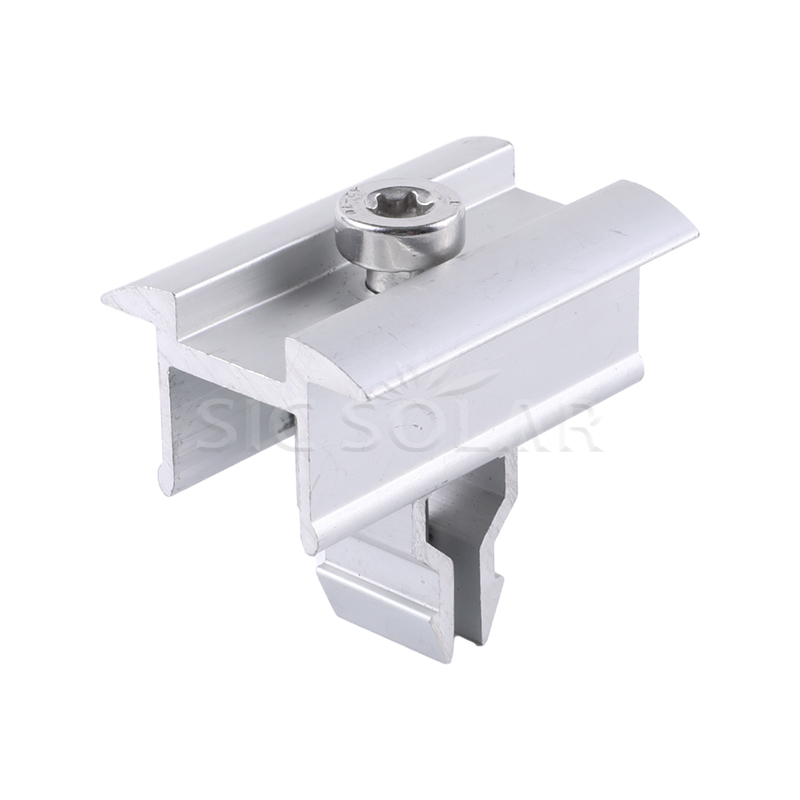

Solar Quick Mounting Mid Clamp is a vital component for photovoltaic mounting systems, fitting between two solar panels to securely attach their frames to the mounting rail. It maintains the necessary module gap, preventing any unwanted movements from wind, vibration, or thermal expansion.

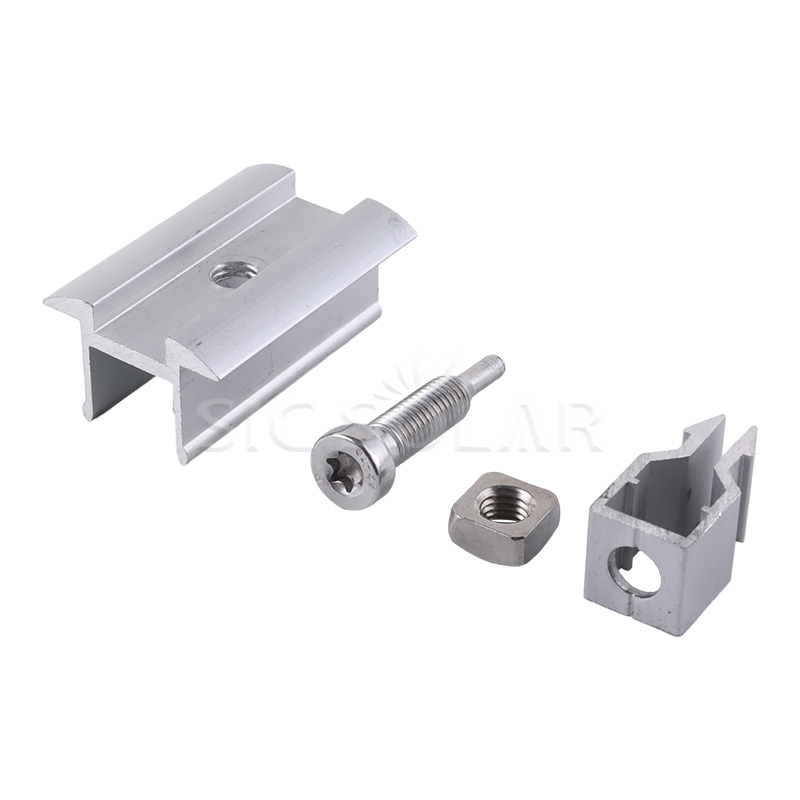

Components

Parameter (Specification)

Why Choose Solar Quick Mounting Mid Clamp?

• Saves Installation Time: Its simplified fastening design minimizes installation steps, allowing installers to work efficiently.
• Installer-Friendly: With ease of handling and positioning, the clamp suits both small residential setups and large PV projects.
• Reliable Structural Performance: Offers stable support and helps solar arrays withstand wind, vibration, and other environmental challenges.
• Durable Outdoor Construction: Made of high-quality aluminum alloy and stainless steel hardware for reliable performance outdoors.
• Flexible Application: Suitable for various PV systems including rooftop, ground-mounted, commercial, industrial, and solar carport installations.
• Helps Reduce Labor Costs: Faster installation improves overall project productivity and minimizes repetitive fastening tasks.

Installation Process

• Prepare the Mounting Rails: Ensure the PV mounting rails are properly installed, aligned, and securely attached to the supporting structure.
• Position the First Solar Panel: Place the first solar module on the mounting rails and secure its outer edge with an appropriate end clamp.
• Position the Quick Mounting Mid Clamp: Slide or place the mid clamp onto the mounting rail beside the first panel's edge.
• Install the Adjacent Panel: Place the second solar panel so its frame aligns properly against the opposite side of the mid clamp.
• Check Alignment and Spacing: Adjust to ensure proper alignment and maintain the specified gap between the panels.
• Tighten the Fastener: Secure the mid clamp by tightening the bolt to the recommended torque specification.
• Repeat the Installation: Continue installing remaining panels using the same process.
• Complete the Final Inspection: Verify that all clamps are correctly positioned, fasteners are secure, and module spacing is consistent throughout the array.

Installation Display

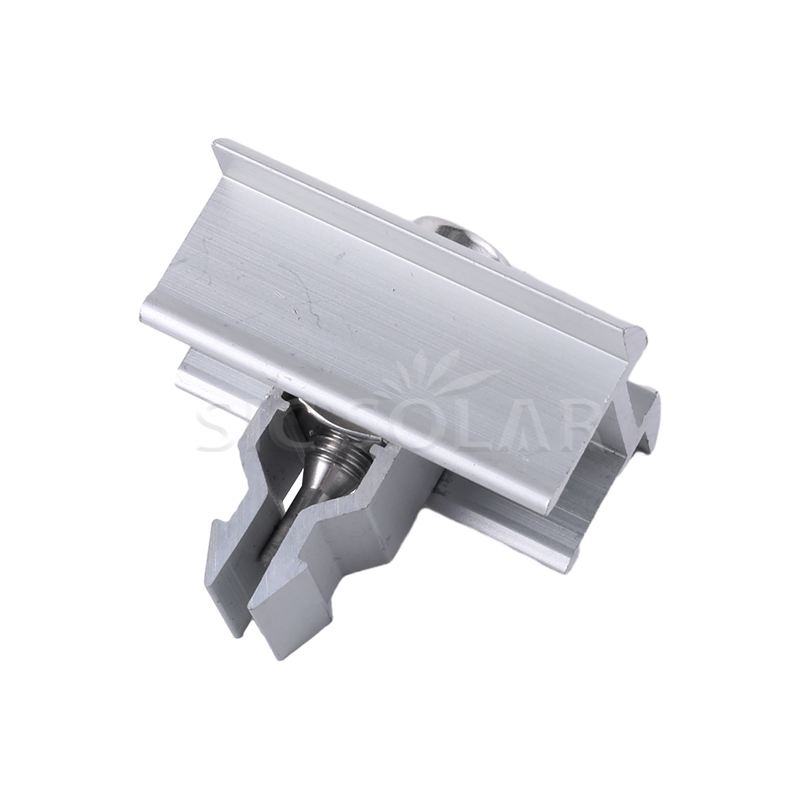

Details

Package

We use Solar Quick Mounting Mid Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
