Universal Solar Panel Mid Clamps

Universal Solar Panel Mid Clamp is an essential element in solar mounting systems, used to secure the middle sections of two neighboring solar panels. It is installed between modules and collaborates with mounting rails to maintain appropriate panel spacing while delivering robust mechanical support.

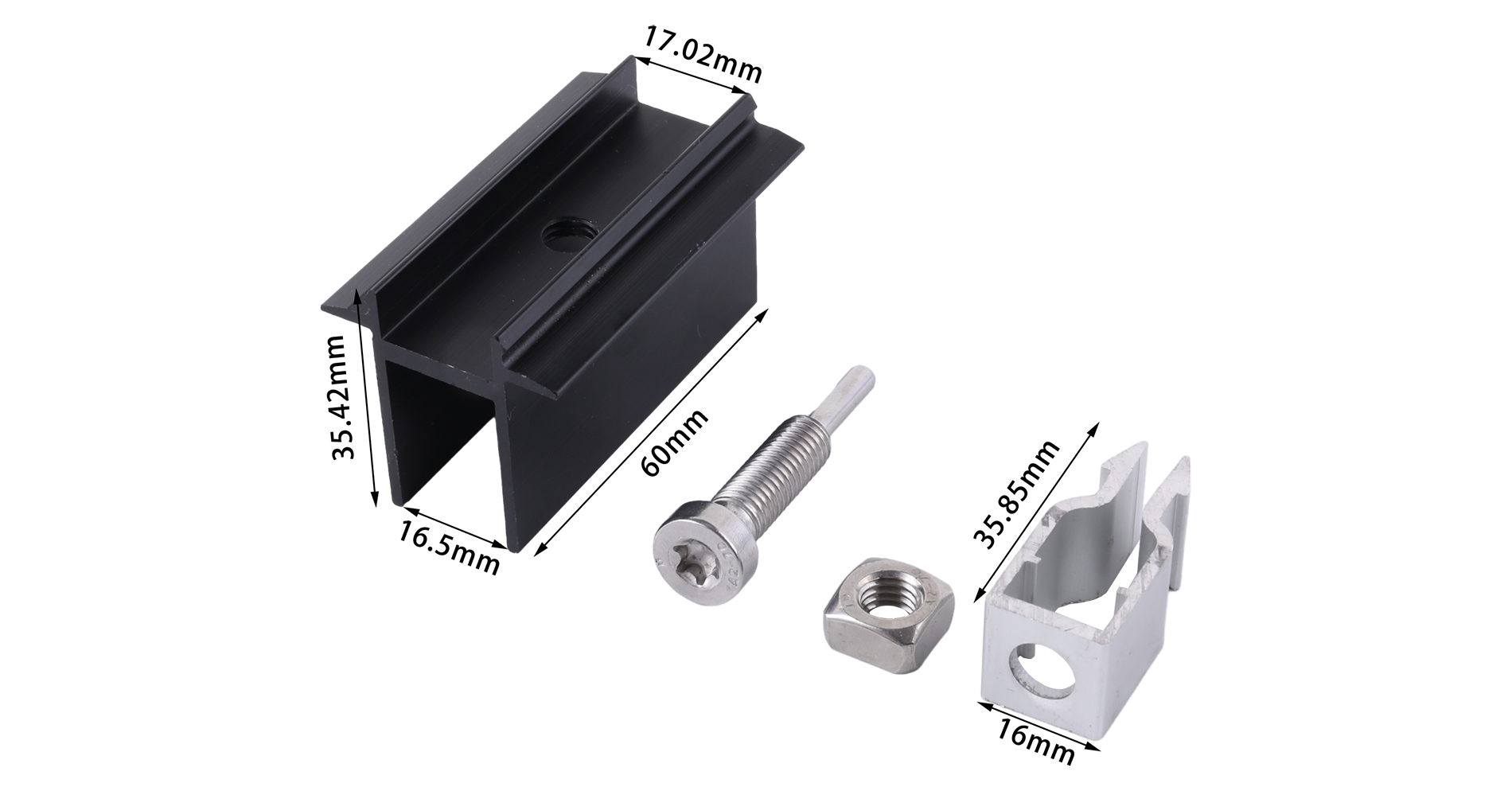

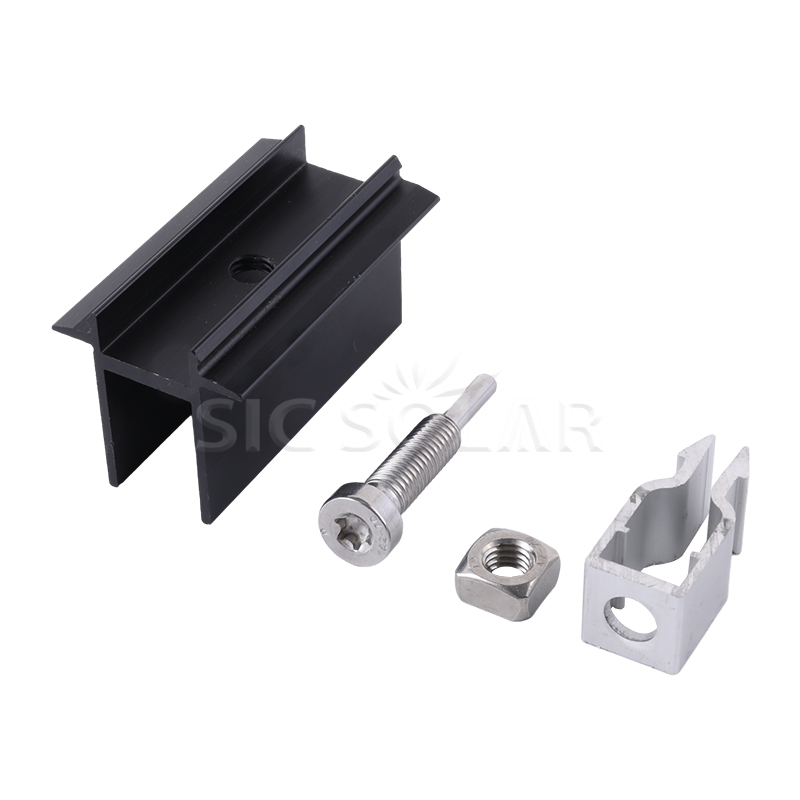

Components

Parameter (Specification)

Why Choose Universal Solar Panel Mid Clamps?

• Simplified installation: A single clamp solution is compatible with multiple solar panel specifications.
• Reduced installation time: Quicker adjustments and fewer component changes during projects.
• Reliable performance: Ensures strong panel fixation across diverse environmental conditions.
• Long service life: Constructed from high-quality materials, ensuring durability for outdoor use.
• Installer-friendly design: Suitable for both small residential setups and large commercial installations.

Installation Steps:

• Position the Solar Panels: Arrange the solar panels on the mounting rails as per the system layout, maintaining the necessary spacing between modules.
• Insert the Universal Mid Clamp: Slide the mid clamp into the mounting rail channel between two adjoining solar panels.
• Adjust the Clamp Height: Make sure the clamp fits correctly with the solar panel frame thickness and aligns with the module edges.
• Tighten the Fastener: Use the recommended torque value to tighten the bolt, securing both solar panels firmly.
• Check the Installation: Verify that the clamp is securely fixed and that the solar panels remain aligned and stable.

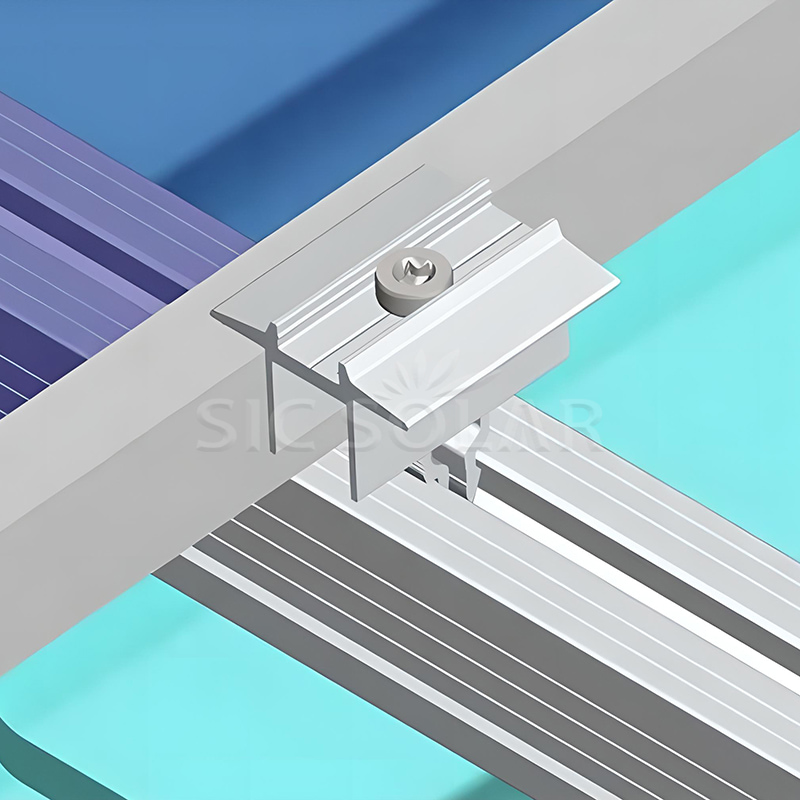

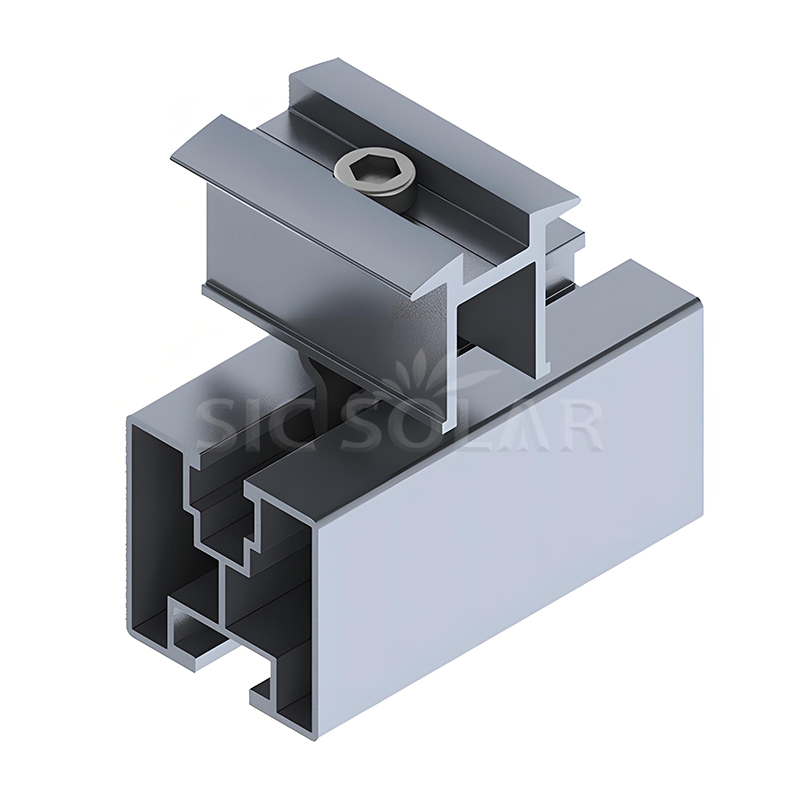

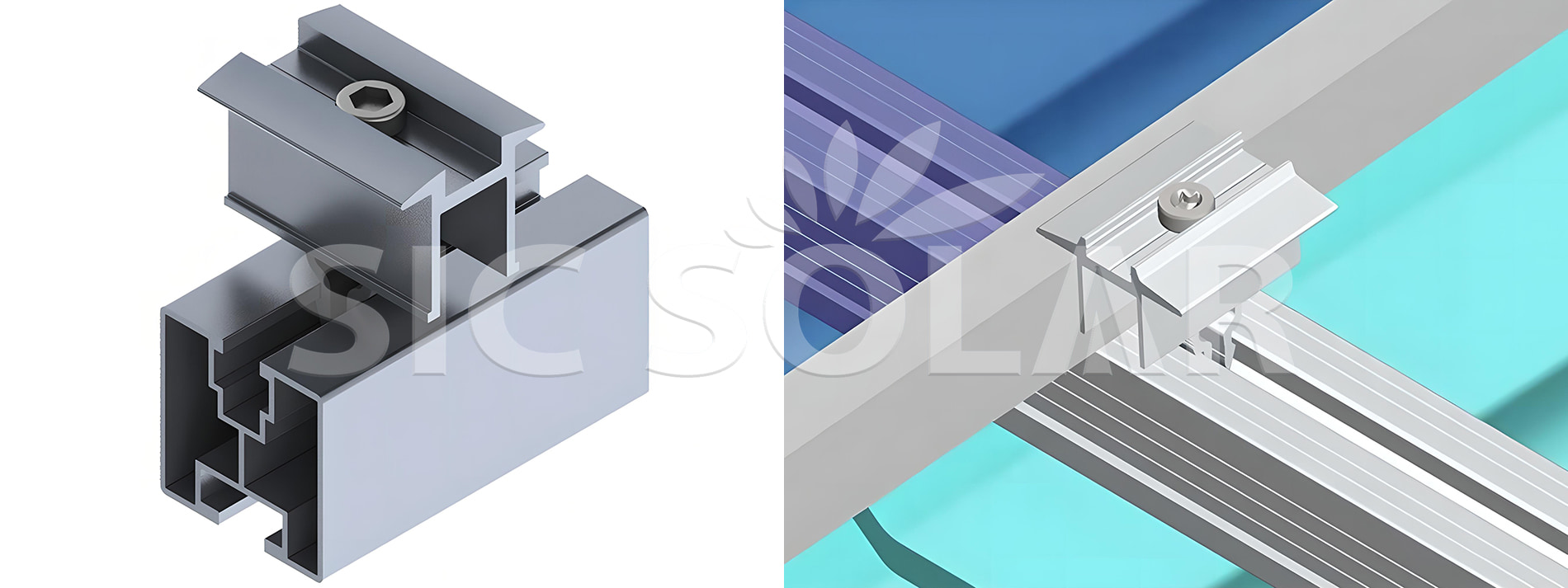

Installation Display

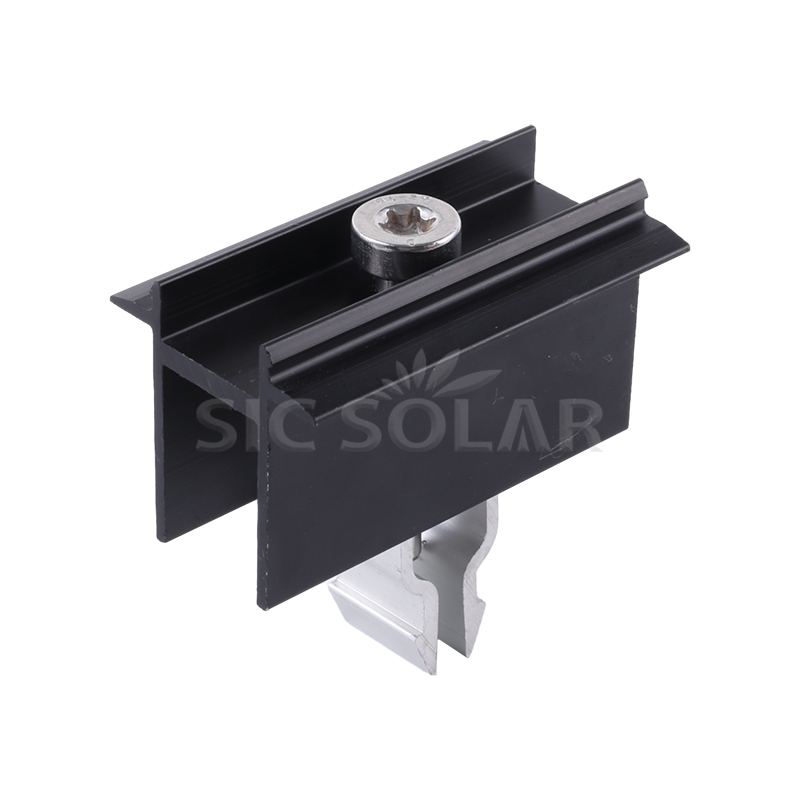

Details

Package

We use Universal Solar Panel Mid Clamps standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
